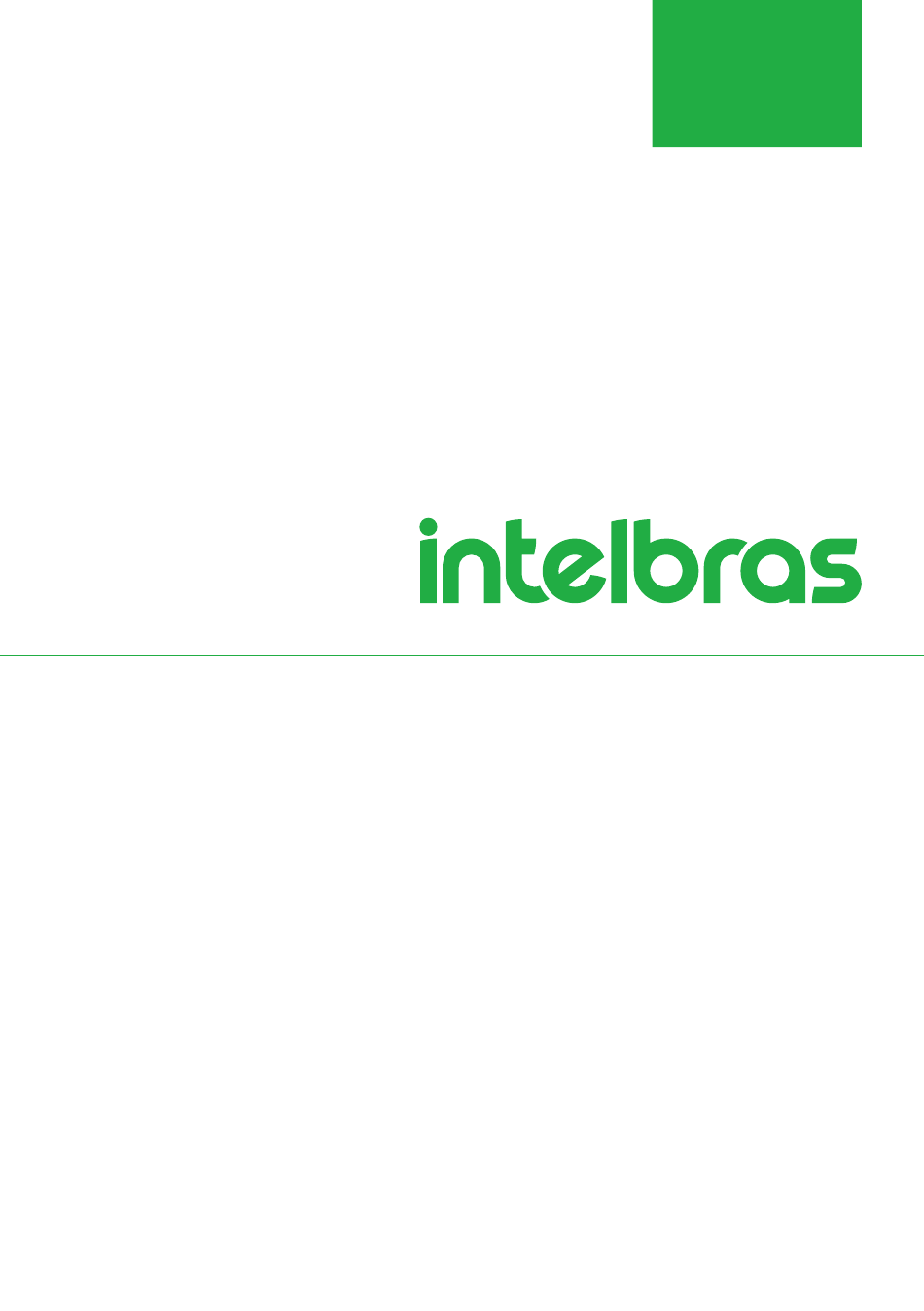

  • Page 1 English User manual IVP 2000 SF...
  • Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 2000 SF was developed by Intelbras with 100% digital technology. The sensor features SMD technology, offers efficient detection with reduced risk of false triggering and has automatic temperature compensation. It is compatible with most devices on the market that work at the same frequency and modulation.
  • Page 3 Care and safety » Follow all instructions in the manual for assembling and installing the product; » LGPD – Data processing by Intelbras: Intelbras does not access, transfer, capture or perform any type of processing of personal data from this product.
  • Page 4 Scan 115º Upper view Faixa de detecção 2.0 ~2.20m Side view...

  • Page 5: Table Of Contents

    10.1. IVP 2000 SF sensor sensitivity adjustment ........

  • Page 6: Technical Specifications

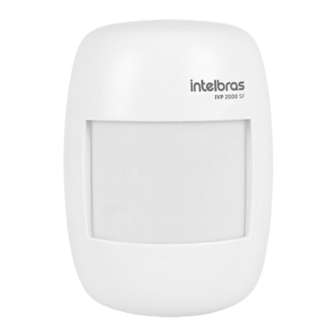

    » Operating modes: Economical; » Battery level sensor; » Dual-element passive infrared; » Power: 9 V battery; » Ease of installation. 3. Product IVP 2000 SF 4230312/6 IVP 2000 SF 6. Front cover 1. Pir sensor 7. Fresnel lens 2. LED trigger 8.

  • Page 7: Sensor Opening

    4. Sensor opening To access the IVP 2000 SF sensor board for battery change or configuration, squeeze the base latch, located on the bottom. See image below: IVP 2000 SF 4230312/6 5. Sensor stabilization After inserting the battery, the sensor goes into stabilization mode and the blue LED flashes for a few seconds. When stabilization is complete, the blue LED will stop flashing.

  • Page 8: Installation

    » Make sure the sensor is securely fixed and not subject to jitter in order to avoid unwanted triggers. The IVP 2000 SF sensor does not have an articulator, as it already has a 15° inclination angle. Therefore, for its installa- tion, follow the procedure: 1.

  • Page 9: Trial Period

    Note: if the control panel used is Intelbras, put it in test mode, this way it will not be necessary to observe the LED, as the control panel will indicate the functioning of the sensor through siren beeps. For more information, consult the central...

  • Page 10: Configuring The Ivp 2000 Sf Sensor (For Boards In Version 4230312/5 And Firmware 2.0.0 Or Higher)

    10. Configuring the IVP 2000 SF sensor (for boards in version 4230312/5 and firmware 2.0.0 or higher) After the sensor is properly installed, perform the adjustments according to the information below: IVP 2000 SF 4230312/6 LEDS SENS 10.1. IVP 2000 SF sensor sensitivity adjustment The SENS jumper (JP2) is used to control the detection sensitivity.

  • Page 11: Ivp 2000 Sf Sensor Operating Mode

    Trial period estabilização teste 11. Configuring the IVP 2000 SF sensor (for board version 4230312/4 and firmware 1.0.2 or earlier) 11.1. IVP 2000 SF sensor sensitivity adjustment The SENS jumper (JP2) is used to control the detection sensitivity. With jumper JP2 in position 1 the sensor provides maxi- mum sensitivity.

  • Page 12: Ivp 2000 Sf Sensor Operating Mode

    Time that the sensor remains on. 12. Low battery sensor The IVP 2000 SF sensor controls the battery level, and if it is critical (equal to or below 7 V), it sends the information to the alarm control panel. » If the low battery signal is enabled on the control panel, the information is sent during the trip.

  • Page 13: Warranty Term

    6. This warranty does not cover loss of data, so it is recommended that the Consumer make a regular backup of the data on the product. 7. Intelbras is not responsible for the installation of this product and also for any attempts of fraud and/or sabotage on its products. Keep software and application updates, if any, up to date, as well as network protections necessary to pro¬tect against hackers.
  • Page 14 Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.23 CNPJ 82.901.000/0016-03 –...
