Summary of Contents for Intelbras IVP 3000 MW

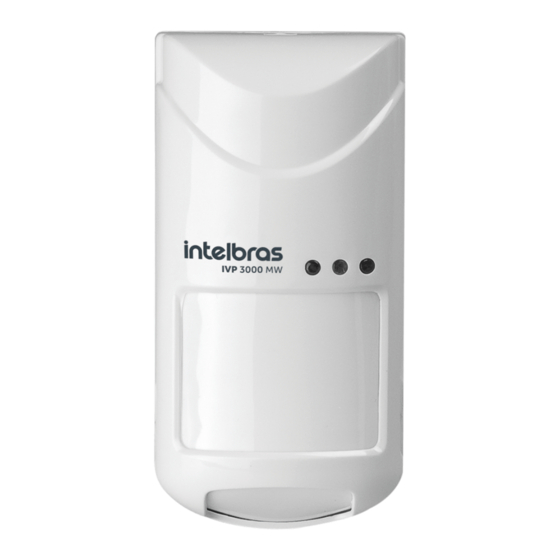

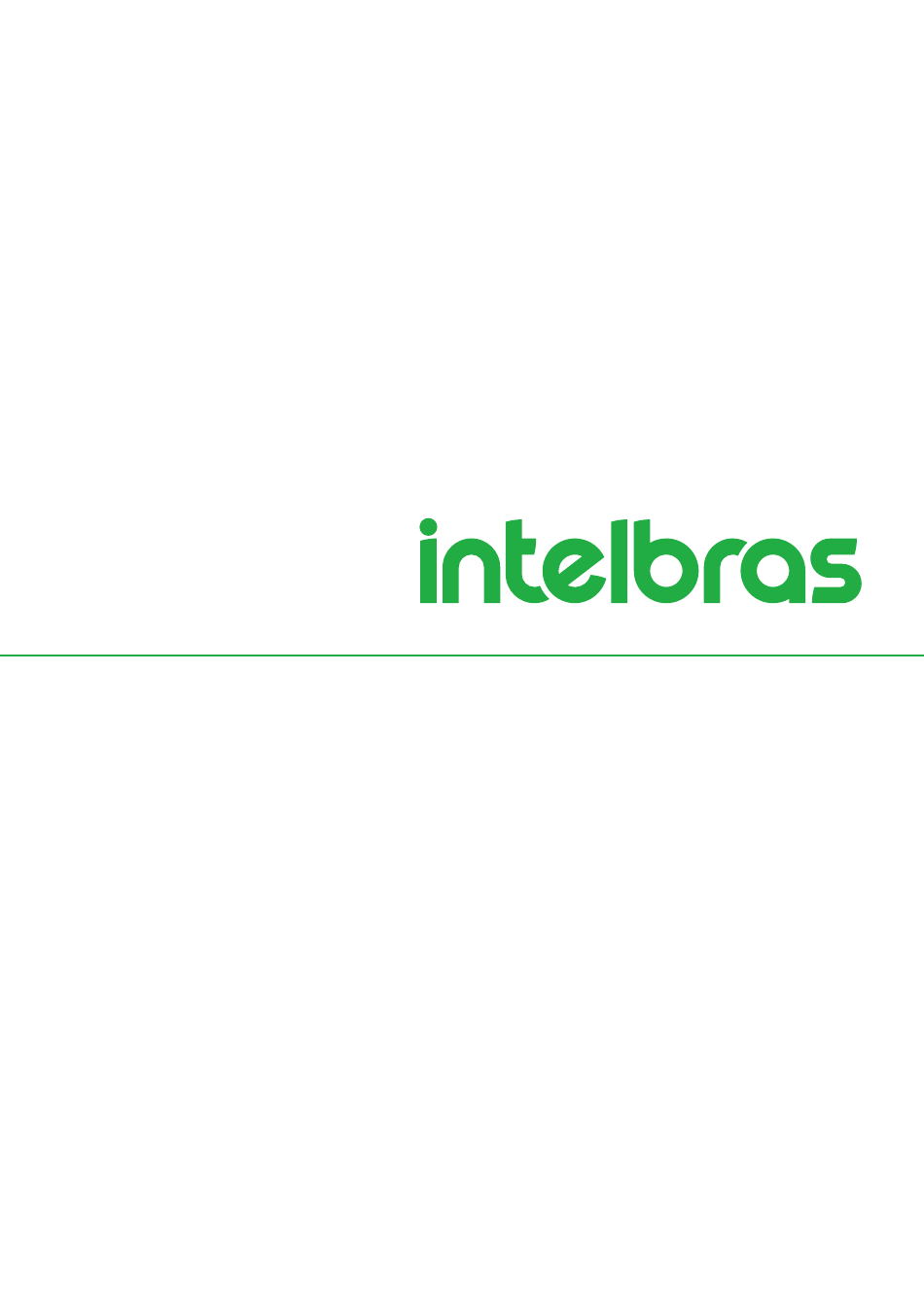

- Page 1 User manual IVP 3000 MW...
- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 3000 MW with triple technology, combines the technology and mi- crowave detection with the detection of passive infrared rays with intelligence, adopting an advanced...
- Page 3 » Follow all instructions in the manual for assembling and installing the product. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
- Page 4 Scan (top view) 2 m 4 m 10 m 12 m Vista Superior Top view Detection range (side view) 2.1~2.2 2.1 m ~ 2.2 m zone zero 12 m Side view Vista lateral Terminal Block Alarm +12 V GND Tamper »...
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Characteristics 3. Product 4. Installation 4.1. Installation without using the articulator ............8 4.2. -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 9 ~16 Vdc Operating Current ≤30 mA Detection Angle 110° Detection Range 12 m ± 20% Detection method MW and PIR Sensor Dual low noise PIR MW antenna High frequency GaAs: FET MW Frequency 10.525 GHz Detection pulse (P. -
Page 7: Product
3. Product IVP 3000 MW 1. Wire outlet. 2. Terminal Block. 3. Microwave module (anti-tamper). 4. Yellow LED. 5. Red LED. 6. Green LED. 7. LED jumper. 8. RELAY jumper 9. P. COUNT jumper. 10. PIR sensor. 11. LED Microwave adjustment. -
Page 8: Installation
4. Installation The IVP 3000 MW sensor should only be installed indoors. 4.1. Installation without using the articulator 1. Open the sensor through the lock at the bottom and remove the board by loosening the screw; Lock Trava 2. Tear the seal at the top of the back cover for cable passage;... -
Page 9: Installation Without Using The Articulator
4.2. Installation without using the articulator 1. Tear the seal located on the back cover and attach the articulator; 2. Pass the cables through the holes in the back cover and fix the sensor to the wall, make sure that the back cover is parallel to the wall;... -
Page 10: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 11 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
