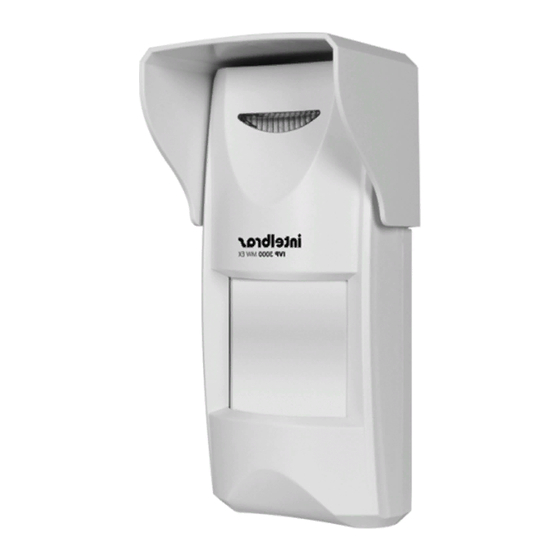

- Page 1 User manual IVP 3000 MW EX...
- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 3000 MW EX with triple technology, combines the technology and mi- crowave detection with the detection of passive infrared rays with intelligence, adopting an advanced...
- Page 3 1. Care and safety » Follow all instructions in the manual for assembling and installing the product. » This sensor is intended for indoor environments. » Do not touch the surface of the infrared (PIR) sensor. If necessary, use a soft cloth for cleaning. »...
- Page 4 » GND: negative source. » +12 V: positive source. » Tamper: anti-tamper switch. LGPD - General Law for the Protection of Personal Data Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Characteristics 3. Product 4. Installation 4.1. Installation without using the articulator ............9 5. -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 9 – 16 Vdc Operating Current ≤30 mA (12 Vdc) Detection Angle 110° Detection Range 12 m ± 20% Detection method MW and PIR Sensor Low noise PIR MW antenna High frequency Ga As: FET MW Frequency 10.525 GHz Immunity to animals... -
Page 7: Product
17. Attaching bracket. 4. Installation The IVP 3000 MW EX sensor has a PET function, which provides immunity to false shots, caused by crawling animals up to 35 kg. It is important to note that the Pet function is designed for crawling animals, so if the animal is not on the ground, but on... - Page 8 Before starting the installation, it is necessary to define the height at which the sensor will be positioned, which can vary from 1.8 to 2.2 m. If the sensor is installed at a height of less than 1.8 m, the PET function is compromised. »...
-
Page 9: Installation Without Using The Articulator
4.1. Installation without using the articulator This product does not come with an articulator. Note: if the fixing support is inclined in relation to the ground, the characteristics of the PET function will change. 1. To install using an articulator, use the hole located in the attaching bracket; Furo para conexão Connection hole do articulador... -
Page 10: Operation
5. Operation The LED jumper is used to control the LED indication without interfering with the detector. Jumper in the ON position (pins 1 and 2), LED on, jumper in the OFF position (pins 2 and 3), LED off. Factory default: LED on . The P. -
Page 11: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 12 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
