- Page 1 User manual IVP 3000 MW PET...

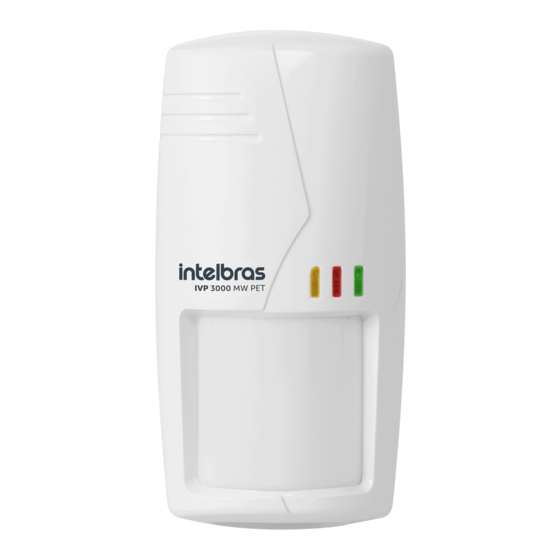

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The IVP 3000 MW Pet passive infrared sensor with triple technology, which combines microwave detec- tion, passive infrared detection and PET function, offers advanced signal analysis technology that prevents...
- Page 3 » Follow all instructions in the manual for assembling and installing the product. » This sensor is intended for indoor environments. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
- Page 4 Detection range (side view) 2,0 a 2,2 m Zona Rastejamento (Look Down) Side view Terminal Block » ALARM: sensor output ALARM GND +12V TAMPER » GND: negative source » +12 V: positive source » Tamper: anti-tamper key...
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Product 3. Characteristics 4. Installation 5. Operation 6. Test Warranty term... -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 9 – 16 Vdc Operating Current ≤ 35 mA Detection Angle 90° Detection Range 12 × 12 m ± 20% Detection method MW and PIR Sensor Low noise PIR MW antenna High frequency Ga As: FET MW Frequency 10.525 GHz Immunity to animals... -
Page 7: Characteristics
The IVP 3000 MW Pet sensor does not have an articulator. . So for your installation, follow the procedure below: The IVP 3000 MW Pet sensor has a Pet function, which provides immunity to false shots caused by small crawling animals up to 20 kg. -
Page 8: Operation
3. At the bottom of the front cover we have the crawl zone lens. This lens comes closed with a label (factory default). To use the detection function in the crawl zone, remove this label (do not remove the lens, remove only the label). To start the installation, press down and remove the back cover;... -
Page 9: Test
6. Test When powered on, all LEDs will flash constantly, indicating that the sensor has activated the self-test. After 60 seconds, all LEDs will go out and the sensor will enter operating mode. Perform the walk test, with movements transverse to the sensor’s detection rays, observing the LED indications. »... -
Page 10: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 11 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
