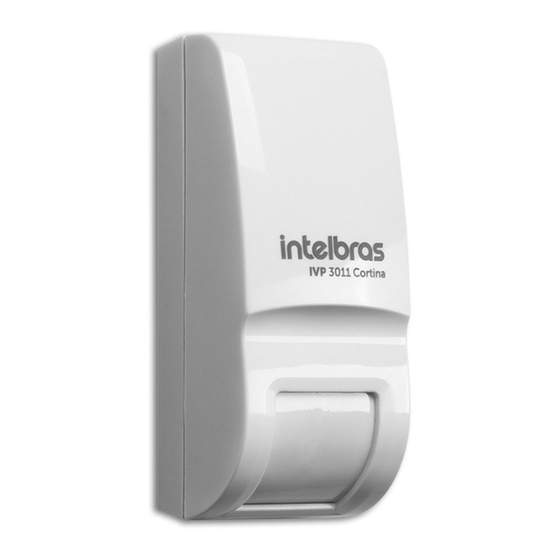

Intelbras IVP 3011 Cortina User Manual

Infrared passive sensor
Hide thumbs

Advertisement

Quick Links

Download this manual
User's Manual
IVP 3011 Cortina (Curtain)

Advertisement

loading
Need help?

Need help?

Do you have a question about the IVP 3011 Cortina and is the answer not in the manual?

Questions and answers

Related Manuals for Intelbras IVP 3011 Cortina

Summary of Contents for Intelbras IVP 3011 Cortina

  • Page 1 User’s Manual IVP 3011 Cortina (Curtain)
  • Page 2 Congratulations, you just have purchased a product with Intelbras quality and safety. The IVP 3011 Cortina sensor is suitable for doors and windows pro- tection. It can detect with angle of 15° through passive infrared rays, allowing effective detection and reduced false triggers. Read the prod-...
  • Page 3 Caution and safety » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product. » Follow all instructions of the manual for product mounting and installation.
  • Page 4 Detection range (side view) 2,2 m Side view Terminal block » Tamper: Anti-tamper key » (-) GND: negative source » (+) 12 V: Positive source » Alarm: Sensor output Alarm GND +12...

  • Page 5: Table Of Contents

    Summary 1. Technical specifications 2. Producto 3. Features 4. Installation 5. Operation 6. Test Term of Warranty...

  • Page 6: Technical Specifications

    1. Technical specifications Operating voltage 9 a 16 Vdc Operating current ≤18 mA Operating temperature -10°C to 50 °C Detection method Detection distance Alarm output NC – NA(500 mA 100 Vdc) Recommended installation height 2.2 m Startup time Detection angle 15°...

  • Page 7: Features

    1. Front 8. PIR Sensor 2. Lens 9. LED indicator 3. Base 10. Jumper LED 4. Bolt fixation holes 11. Jumper P.COUNT(pulse counter) 5. Cable passage 12. Jumper relay 13. Wall bracket (Bracket) 6. Terminal Block 7. Tamper Key 3. Features »...
  • Page 8 Cable Cable entry Figure 2 Figure 3 To install directly in the wall without bracket 1. Tear the base of the plastic bag to pass the bolts, as indicated. (Fig 3) 2. Attach the sensor, passing the screw through the holes in the back cover. (Fig. 4). Note: M3X25 self-drilling screws.
  • Page 9 For installation using the bracket 1. Attach the bracket in the wall, passing the screw through the holes on the side (Fig 5) 2. Fit the sensor into the bracket (Fig. 6). 3. To remove the sensor from the bracket, just use a small driver as a lever in the lock on the left side (Fig.

  • Page 10: Operation

    Corridor protection. Sensor 5. Operation LED jumper is used for LED indication without interfering with the detector. Jumper in ON position (pin 1 & 2) light on. Jumper in OFF position (pin 2 & 3) light off. Factory standard: LED on. The P.COUNT jumper controls the pulse count for alarm activation.
  • Page 11 P.Count Relay Jumper P.COUNT Position Condition 1 Pulse – maximum sensitivity 2 Pulse - minimum sensitivity Jumper relay Position Condition Normally closed Normally open Jumper LED Position Condition LED on LED off...

  • Page 12: Test

    6. Test When energized, the LED lights on, indicating that the self-test has been activated by the sensor. It performs the walk-through test, with transversal movements to sensor detection, by observing the LED indication. Note: while a movement could be detected, the LED remains on and will indicate open or closed.

  • Page 13: Term Of Warranty

    Term of Warranty It is expressed that this contractual warranty is granted according to the following conditions: Customer name: Customer’s signature: Tax Invoice No. Date of Purchase: Model: Serial No.: Retailer 1. All parts, pieces and components of this product are warranted against any man- ufacturing defects, which may arise within a period of 1 (one) year - being 90 (ninety) days of legal warranty and 9 (nine) months subject to contractual warran- ty - from the date when the Customer purchased the product, according to the...
  • Page 14 Customer to regularly make secure backup of the product data. 7. Intelbras is not liable for the installation of this product, as well as eventual at- tempts of fraud and/or sabotage in their products. Keep software and applications up to date, and if necessary, the required network protections against intrusions (hackers).
  • Page 15 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
