  • Page 1 User manual IVP 4000 smart...

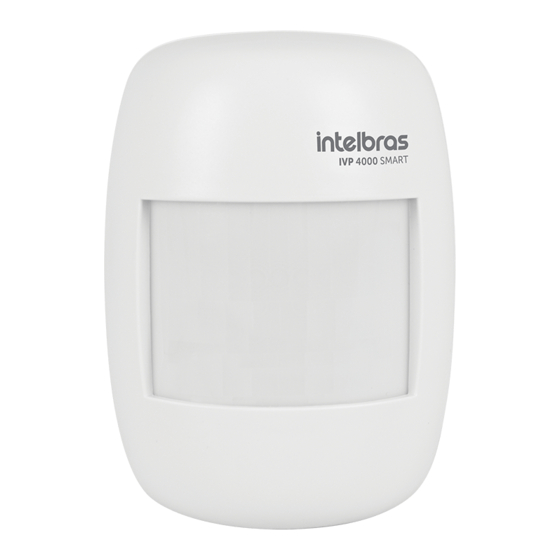

  • Page 2 Passive infrared sensor Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 4000 smart was developed by Intelbras with 100% digital technology. The sensor has an integrated Temperature Sensor to offer the same detection sensitivity in different environments (from -10 to +50°) reducing the risk of false triggers,...
  • Page 3 » The sensor must be installed where a possible intruder is easily detected, that is, where there is movement across the sensor’s detection beams. » LGPD – General Personal Data Protection Law: Intelbras does not access, transfer, capture, or perform any other type of processing of personal data from this product.

  • Page 4: Table Of Contents

    5.2. Setting the operating mode of the IVP 4000 smart sensor ......

  • Page 5: Technical Specifications

    1. Technical specifications Consumption < 20 mA Detection angle 115° Detection range 12 m Operating Temperature - 10 °C to + 50 °C Transmission frequency 433,92 MHz Detection method Battery LITHIUM CR123A 3 V Supervision Supervised (FSK) or unsupervised (OOK) Anti-jamming Immunity against interference from malicious signals 2.

  • Page 6: Installing The Ivp 4000 Smart Sensor

    2. With the help of a tool, drill a hole in the back cover for the screw. 3. Insert the CR123A battery and position the sensor in the desired location. The IVP 4000 smart does not need to be installed with an articulator as it already has a 15° inclination angle.

  • Page 7: Ivp 4000 Smart Sensor Supervision Adjustment

    Advantage of the Economy mode: this ability to learn from the environment, means that in places with high degrees of movement, periodic and non-continuous shots are generated, in turn, saving battery power. 5.3. IVP 4000 smart sensor supervision adjustment The SUPERV jumper (JP3) is used to select between supervised (FSK) or unsupervised (OOK) modes. With jumper JP3 open the sensor is in supervised mode (FSK).

  • Page 8: Low Battery Sensor

    5.4. Low battery sensor The IVP 4000 SMART sensor controls the battery level. If it is critical (equal to or below 2.5V), it will send the information to the control panel. If the sensor is configured in unsupervised mode (OOK) and the low battery signal is enabled in the control unit, the information is sent during the trip.

  • Page 9: Test

    Adjust its sensitivity if necessary or reposition the sensor installation. If the alarm control panel used is Intelbras, put it in test mode, this way it will not be necessary to observe the LED, as the control panel will indicate the sensor’s operation through siren beeps.

  • Page 10: Ivp 4000 Smart Sensor Supervision Adjustment

    50 sec 30 min 7.3. IVP 4000 smart sensor supervision adjustment » For board version 4410030/2 or 4410030/3: to change the modulation from OOK to FSK, simply remove the battery from the sensor, open the OOK/FSK jumper (JP3) and then put the battery back in its original position. Once this is done, the sensor will operate in FSK mode.

  • Page 11: Homologation

    8. Homologation 0912-14-0160 This equipment operates on a secondary basis, that is, it is not entitled to protection against harmful interference, even from stations of the same type, and may not cause interference to systems operating on a primary basis. This is a product approved by Anatel, the approval number can be found on the product label, for queries go to the website: sistemas.anatel.gov.br/sch.

  • Page 12: Warranty Term

    8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated).
  • Page 13 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira 01.21 Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 Made in Brazil CNPJ 82.901.000/0016-03 –...
