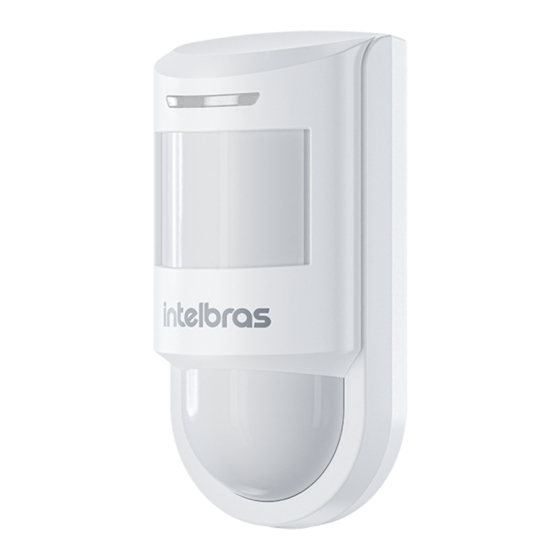

Passive infrared motion sensor with triple technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
IVP 9000 MW MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVP 9000 MW MASK and is the answer not in the manual?

Questions and answers

Related Manuals for Intelbras IVP 9000 MW MASK

Summary of Contents for Intelbras IVP 9000 MW MASK

  • Page 1 User manual IVP 9000 MW MASK...
  • Page 2 The IVP 9000 MW MASK sensor also contains technologies for anti-cloaking, anti-masking, detection of light sources, monitoring of supply voltage and detection of change in installation position by accelerometer. All these technologies combined ensure greater security to the site against any form of sabotage of the alarm system.
  • Page 3 Care and safety » Follow all instructions in the manual for assembling and installing the product. » LGPD – Data processing by Intelbras: Intelbras does not access, transfer, capture or perform any type of processing of personal data from this product.
  • Page 4 Detection area (Top view) Detection angle (Side view) 2,1 m 18 (m) Side view 2,1 m 18 (m)

  • Page 5: Table Of Contents

    Summary 1. Technical specifications 2. Features 3. Product 4. Installation 4.1. Microwave sensitivity adjustment ............. . .9 4.2.

  • Page 6: Technical Specifications

    1. Technical specifications Operating voltage 9 ~16 Vdc Operating current 50 mA Detection angle 110° Detection range (PIR and MW) 18 metros Detection method Microwaves and PIR (AND) Number of pyroelectric sensors Pyroelectric sensor type Quad Microwave frequency 10,525 GHz Animal immunity Up to 10 kg Automatic (factory default)

  • Page 7: Product

    3. Product 1. Front cover 2. Flat lens 3. Hemispherical lens 4. LEDs 5. Closing screw 6. Wire passage seals 7. Seals for wall installation 8. Seals for corner installation 9. Connector 10. External base 11. Internal base Board 12. Pyro sensor 16.

  • Page 8: Installation

    4. Installation » Before starting the installation, it is necessary to define the height at which the sensor will be positioned, which can vary from 2 to 2.4 m; » Do not install sensors that have microwave technology close to each other, as there may be interference between them; »...

  • Page 9: Microwave Sensitivity Adjustment

    Use the fixing holes located on the base to fix the XSA 1000 articulator, for more information about the XSA 1000 articula- tor, consult the user manual on the website: www.intelbras.com.br The recommended screw for attaching articulators to the product is 3.5 × 9.5 mm.

  • Page 10: Operating Mode Settings

    In figure 1 of the example above we have the area we want to protect. Figures 5 and 6 indicate that the trimpot adjustment exceeded the limits of the environment to be protected. In this way the microwave will detect move- ments outside the desired area.
  • Page 11 Key 2 – SENSITIVITY: controls the sensitivity of the two PIR channels to trigger the alarm. With the switch in the ON position, the sensitivity is configured in order to avoid trips with little movement, that is, minimum sensitivity. This setting is suitable for semi-open environments or environments with some interference that could cause unwanted triggering.

  • Page 12: End-Of-Line Resistor Settings

    4.3. End-of-line resistor settings The IVP 9000 MW MASK has 3 sets of switches, and in each one of them the 1K, 2k2, 3k9 resistors are already integrated in the sensor board, it is not necessary to connect any external resistor to the sensor terminals.
  • Page 13 IVP 9000 MW MASK sensor. If the control panel does not have a compatible configuration, keep all switches in the OFF position. Possible adjustments of the IVP 9000 MW MASK sensor with Intelbras alarm center 0- Single zone without end-of-line resistor:...
  • Page 14 2- Single zone with end-of-line resistor and wiring short-circuit detection: ZONE 1 ZONE 2 ZONE 3 PROBLEM ALARM TAMPER ALARM 3 – Single zone with end-of-line resistor, tamper detection and wiring short circuit: ZONE 3 ZONE 1 ZONE 2 PROBLEM ALARM TAMPER ALARM...
  • Page 15 ZONE 2 PROBLEM ALARM TAMPER ALARM 6- Dual zone with end-of-line resistor, tamper detection and wiring short circuit: Connection with an IVP 9000 MW MASK sensor using the Alarm and Trouble output ZONE 1 ZONE 2 ZONE 3 ALARM TAMPER...

  • Page 16: Process Completion

    7- Parallel duplication with wiring short circuit detection: ZONE 1 ZONE 2 ZONE 3 ALARM ALARM PROBLEM TAMPER PROBLEM ALARM TAMPER ALARM 4.4. Process completion Once the sensor is configured, close it by sliding up the front case on the back cover and tighten the screw.

  • Page 17: Operation

    5. Operation When turning on the sensor, the blue LED flashes for approximately 60 seconds. This time is necessary for the stabilization of the circuits that make up the sensor. After this period, if they are enabled, the LEDs light up with each motion detection. The LEDs have automatic intensity adjustment according to the brightness of the installed environment.
  • Page 18 PROB Power supply voltage monitoring The IVP 9000 MW MASK periodically monitors its supply voltage. When detecting supply voltage below 9 volts, the red LED periodically flashes and the PROBLEM output remains open as long as the supply voltage is below the recommended level.

  • Page 19: Test

    Anti-camouflage The IVP 9000 MW MASK is capable of detecting movements even if the individual uses some material to camouflage body temperature. When doing this analysis and detecting the movement, the sensor indicates the trip through the ALARM output. 6. Test Once installed and running, walk across the area to be protected, simulating a possible intrusion into the environment.

  • Page 20: Warranty Term

    8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated).
  • Page 21 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.22 CNPJ 82.901.000/0016-03 –...
