- Page 1 English User manual IVP 7000 MW EX...

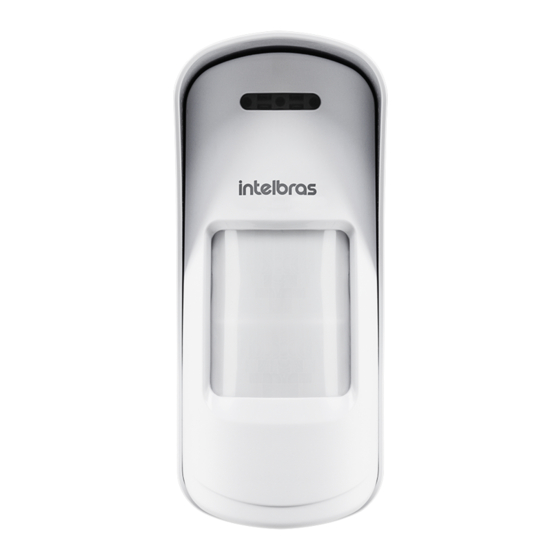

- Page 2 Parabéns, you have just acquired a product with Intelbras quality and safety. The IVP 7000 MW EX motion sensor combines microwave detection with passive infrared detection, providing advanced signal analysis technology to avoid accidental triggering in environments with a high risk of intrusion. The IVP 7000 MW EX sensor has protection against poverty, water immunity to white light, or that makes it perfect for the most adverse envi- ronments, and can be installed in internal, semi-open or external environments.
- Page 3 Care and security » LGPD – Processing of data by Intelbras: Intelbras does not access, transfer, capture, and does not perform any type of processing of personal data from this product. » This product is intended for EXTERNAL environments. » Do not touch the surface of the infrared sensor (PIR). If necessary, use a soft, dry cloth to clean.
- Page 4 » The sensor must be installed where an intruder can be easily detected, or seja, where it performs transverse movements to the detection functions. » The sensor must be installed on a flat surface, fixed and free of tremors, with a height between 2.0 and 2.2 meters. It is recommended to install the sensor parallel to the wall so that it has a greater detection range.
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Features 3. Product 4. Installation 4.1. Installation without using the articulator ............8 4.2. -
Page 6: Technical Specifications
1. Technical specifications Operational voltage 9 ~16 Vdc Operational current 65 mA Consumption 1,04 W Detection angle 120° Detection range (PIR and MW) 12 metros Detection method Microwaves and PIR (AND) Number of pyroelectric sensors Pyroelectric sensor type Dual Microwave frequency 10,525 GHz Immunity to animals Up to 30 kg... -
Page 7: Product
3. Product Pyro sensor Tamper key Microwave module Trimpot microwave adjustment LEDs LED light conductor Jumper LEDs 10. Fresnel lens Sensitivity key 11. Product basis Connection terminal 12. Cable passage 4. Installation » Before starting the installation, it is necessary to define the height at which the sensor will be positioned, which can vary from 2 to 2.2 m;... -
Page 8: Installation Without Using The Articulator
To install the sensor, follow the procedure below: » Unlock the back cover by partially loosening the screw and remove the front cover, as shown in the picture. 4.1. Installation without using the articulator » For installation directly on the wall, or in the corner of the wall, remove the plate and break the seals indicated for the holes in the rear fixing cover. -
Page 9: Installation With Or Use Of The Articulator
Note: use a tool to make or furo na drunk. 4.2. Installation with or use of the articulator » The IVP 7000 MW EX sensor is accompanied by the XSA 1000 support, follow the steps below for its correct use. Articulated support... - Page 10 Installation » Insert the shaft into the cover (part 1 and part 2); » Pass the ring through the previous set (piece 3); » Insert the nut into the connector (key 5 and 6); » Screw the ring on the base turning clockwise until you feel that it is tight; »...
- Page 11 To fix the XAS 1000 in the installation location, follow the steps below: Note: the XAS 1000 support has an opening for passing the wire, if necessary, follow the steps below for its correct use. » Lead the wiring through the wire feedthrough; »...
-
Page 12: Microwave Sensitivity Adjustment
» After definitive fixation of the base, address or sensor for the desired detection field, always respecting its specifications. Trave a position of the sensor turning the fixation ring attached or fine. 4.3. Microwave sensitivity adjustment The trimpot allows adjusting the sensitivity of the microwave. Turning the trimpot counterclockwise increases the sensitivity and consequently the distance that the microwave is capable of detecting movements. -
Page 13: Operating Mode Settings
4.4. Operating mode settings » J.LEDS: the jumper (J. LEDS) is used to control the indication of two LEDs without interfering and not detecting. With the jumper, the indication LEDs are enabled, or else, accesses. Factory default: Access LEDs. LEDs J.LEDS LEDs Condition... -
Page 14: Operation
5. Operation When turning on the sensor, the blue LED flashes for approximately 50 seconds. This time is necessary for the stabilization of the circuits that make up the sensor. After this period, if enabled, the LEDs light up with each motion detection. »... -
Page 15: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 16 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.23 CNPJ 82.901.000/0016-03 –...
