Summary of Contents for Intelbras IVP 8000 Pet
- Page 1 English User guide IVP 8000 Pet...

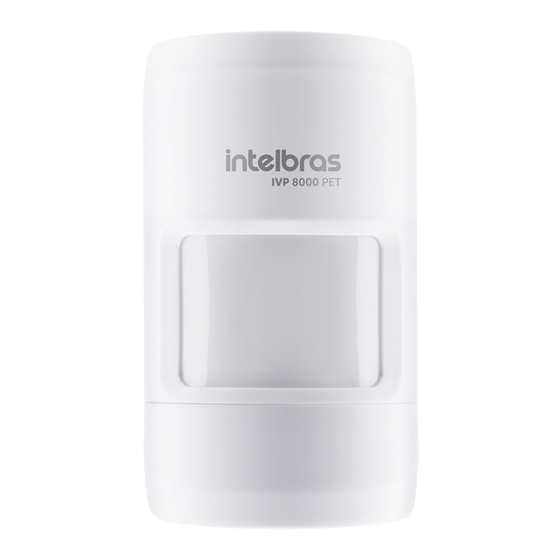

- Page 2 Passive infrared sensor Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared motion sensor IVP 8000 Pet has an intelligent detection algorithm that, com- bined with automatic temperature compensation, prevents false triggers. Allows quick and simple configuration remotely through software or application.
- Page 3 Care and safety » LGPD – Data processing by Intelbras: Intelbras does not access, transfer, capture or process any kind of personal data from this product. » Follow all instructions in the manual for assembling and installing the product;...
- Page 4 » The Pet function is intended for crawling animals weighing up to 20 kg. If the animal is on top of a bench, for example, the Pet function can be canceled. Obs.: before starting the installation, it is necessary to define the height at which the sensor will be positioned, which can vary from 1.8 to 2.2 m.
-
Page 5: Table Of Contents
5. Sensor stabilization 6. Registering the IVP 8000 Pet sensor 6.1. Sensors with firmware version equal to or greater than 3.0.0 ......8 6.2. Sensors with firmware version less than 3.0.0 . -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 3 Vdc Operating current 26 mA Current at rest Frequency range 915 MHz to 928 MHz Modulation DSSS BPSK 40 Kbps Maximum transmission power 11 dBm Battery LITHIUM CR123A 3 V Detection angle 90° Detection range 12 m Detection method Animal immunity... -
Page 7: Product
6. Sync key 14. Screw installation seal 7. Blue LED (Trigger) 4. Sensor aperture To access the IVP 8000 Pet sensor board for registration, changing the battery or removing it from the control panel, remove the lower front cover. See image below:... -
Page 8: Sensor Stabilization
After inserting the battery, the sensor goes into stabilization mode and the blue LED flashes for a few seconds. When stabilization is complete, the blue LED will stop flashing. 6. Registering the IVP 8000 Pet sensor The sensor registration can be performed through the AMT 8000 Desktop Programmer software, remote AMT mobile application, keyboard commands and synchronization button on the alarm cen- ter. -
Page 9: Identifying The Best Location For Installation
8. Identifying the best location for installation The IVP 8000 Pet sensor has signal level indications for communication with the AMT 8000 control panel, to help choose the best installation location. Follow the procedure: 1. Take the sensor, duly registered, to the place to be installed;... -
Page 10: Trial Period
2. For installation directly on the wall or in a corner of the wall, break the indicated seals for the holes in the bracket. Wall mounted Mounted on the corner of the wall 3. After fixing the bracket, fit the base on the bracket and slide it down and then fit the lower front cover. -
Page 11: Test
12. Configuring the IVP 8000 Pet sensor Sensor settings can be performed via keyboard, software or application. The configured functions are: » Detection sensitivity. -
Page 12: Information About Sensor Adjustments
12.2. Information about sensor adjustments Sensitivity adjustment table. Level Condition Maximum sensitivity Medium sensitivity (factory default) Minimum sensitivity 12.3. Information about LED operation and mode of operation » Off: LED does not light. Factory standard. » On: LED will light on every sensor detection. Operation mode ... -
Page 13: Configuring The Sensor Through The App
12.4. Configuring the sensor through the app After the application is properly connected to the alarm panel, select Configure panel on the main screen of the App. Menu Configure center > Online > Events > Then select sensors: Settings General > Zones >... -
Page 14: Configuring Sensors With Firmware Version Less Than 3.0.0
12.5. Configuring sensors with firmware version less than 3.0.0 Configuring the sensor via the keyboard Using the keyboard of the AMT 8000 control panel, enter the programming mode with the installer password, then type the following command: 0 = Off 1 = On Zone Sensitivity Operation mode... -
Page 15: Configuring The Sensor Through The App
12.6. Configuring the sensor through the app After the application is properly connected to the alarm panel, select Configure panel on the main screen of the App. Menu Configure center > Online > Events > Then select sensors: Settings General > Zones >... -
Page 16: Battery
13. Battery The sensor monitors the battery level and sends low battery information to the alarm control panel, indicating that the battery must be replaced. Use only quality batteries that are sized correctly for the device. The estimated useful life for the battery is 3 to 5 years, and may be influenced by the number of activations, weather conditions and sensor configuration mode. -
Page 17: Warranty Term
(48) 2106-0006 or 0800 704 2767 (Monday to Friday from 8 am to 8 pm and on Saturdays from 8 am to 6 pm) or through e -mail suporte@intelbras.com.br. - Page 18 Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, nº 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.23 CNPJ 82.901.000/0016-03 –...
