  • Page 1 User manual IVP 2000 SF...

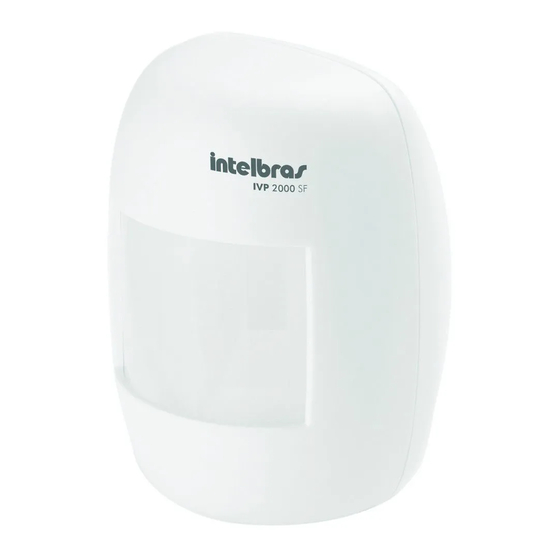

  • Page 2 Passive infrared sensor Congratulations, you have just purchased a product with Intelbras quality and safety. The passive infrared sensor IVP 2000 SF was developed by Intelbras with 100% digital technology. This sensor features SMD technology, offers efficient detection with reduced risk of false triggers, and has automatic temperature compensation. It is compatible with most devices on the market that work on the same frequency and modulation.
  • Page 3 » We recommend that the sensor configuration be done according to item 5. Configuring the IVP 2000 SF sensor (for boards in version 4230312/5 and firmware 2.0.0) and item 7. Configuring the IVP 2000 SF sensor (for board version 4230312/4 and firmware 1.0.2 or earlier).

  • Page 4: Table Of Contents

    5.2. Sensitivity adjustment of the IVP 2000 SF sensor ....... .

  • Page 5: Technical Specifications

    1. Technical specifications Detection angle 115° Detection range 12 m Power 9 Vdc battery Consumption 25 mA Operating Temperature -10 °C to + 50 °C Modulation Unsupervised (OOK) Frequency 433.92 MHz Baud rate 2 KBps (open source) 2. Characteristics » 2 levels of sensitivity. »...

  • Page 6: Installing The Ivp 2000 Sf Sensor

    2. With the help of a tool, drill a hole in the back cover for the screws. 3. Insert the 9V battery and position the sensor in the desired location. The IVP 2000 SF does not need to be installed with an articulator, as it already has a 15°...

  • Page 7: Low Battery Sensor

    5.4. Low battery sensor The IVP 2000 SF sensor controls the battery level. If it is critical (7V), it will send the information to the control panel. If low battery signaling is enabled in the control unit, the information is sent during the trigger.

  • Page 8: Configuring The Ivp 2000 Sf Sensor (For Board Version 4230312/4 And Firmware 1.0.2 Or Earlier)

    7. Configuring the IVP 2000 SF sensor (for board version 4230312/4 and firmware 1.0.2 or earlier) LED adjustment The LEDS jumper (JP1) is used to control the LED indication without interfering with the detector. With the switch in posi- tion L the LEDs are enabled to function normally. With the switch in position D, the LEDs are disabled, that is, they do not light up.

  • Page 9: Low Battery Sensor

    7.3. Low battery sensor The IVP 2000 SF sensor controls the battery level. If it is critical (7V), it will send the information to the control panel. If low battery signaling is enabled in the control unit, the information is sent during the trigger.

  • Page 10: Warranty Term

    8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated).
  • Page 11 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.21 CNPJ 82.901.000/0016-03 –...
