  • Page 1 User’s Manual IVP 3011 Teto (Ceiling)

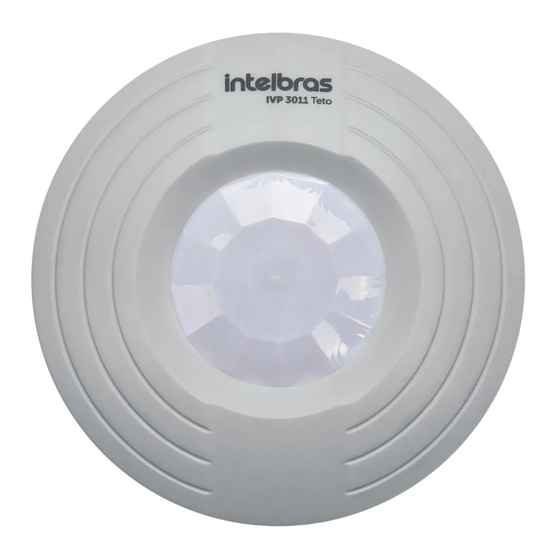

  • Page 2 IVP 3011 Teto (Ceiling) Infrared passive sensor Congratulations, you just have purchased a product with Intelbras quality and safety. IVP 3011 Teto sensor has a 360° view angle and its detection is done by passive infrared rays, reducing the risk of false shots.
  • Page 3 Caution and safety » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product. » Follow all instructions of the manual for product mounting and installation.
  • Page 4 Detection range (side view) Sensor Sensor Vista lateral Vista lateral Terminal block » Tamper: Anti-tamper key » (-) GND: negative source » (+) 12 V: Positive source » Alarm: sensor output +12 V Alarm Alarm Tamper...

  • Page 5: Table Of Contents

    Summary 1. Technical specifications 2. Features 3. Producto 4. Installation 5. Operation 6. Test Term of Warranty...

  • Page 6: Technical Specifications

    1. Technical specifications Operating voltage 12 Vdc Operating current ≤18 mA Operating temperature -10°C to 60 °C Detection method Detection distance Diameter 7 m Alarm outlet NC - NO (500 mA 100 VDC) Recommended installation height Startup time Detection angle 360°...

  • Page 7: Producto

    3. Producto 1. Front 7. Jumper Relay 2. Lens 8. PIR sensor 3. Base 9. Jumper LED 4. Bolt fixation holes 10. LED Indicator 5. Cable passage 11. Terminal Block (connectors) 6. Jumper P.COUNT (pulse counter) 12. Tamper key (anti-violation)

  • Page 8: Installation

    4. Installation » Execute the installation in an area free of obstacles that may hinder the visual field of the sensor. » The PIR (P-COUNT) sensitivity adjustment must be done according to each envi- ronment. To attach the sensor in the ceiling, follow the procedure: 1.
  • Page 9 Back cover Cable Cable entry Figure 2 Back cover Screw Screw Figure 3...

  • Page 10: Operation

    5. Operation LED jumper is used for LED indication without interfering with the detector. Jumper in ON position (pin 1 & 2) light on. Jumper in OFF position (pin 2 & 3) light off. Factory standard: LED on. The P.COUNT jumper controls the pulse count for alarm activation. With the jumper in the 1P position, the sensor provides maximum sensitivity (one pulse, pins 1 &...

  • Page 11: Test

    Jumper P.COUNT Position Condition 1 Pulse – maximum sensitivity 2 Pulse - medium sensitivity 3 Pulse - minimum sensitivity Jumper relay Position Condition Normally closed Normally open Jumper LED Position Condition Closed LED on Open LED off 6. Test When energized, the LED lights on, indicating that the self-test has been activated by the sensor.

  • Page 12: Term Of Warranty

    Term of Warranty It is expressed that this contractual warranty is granted according to the following conditions: Customer name: Customer’s signature: Tax Invoice No. Date of Purchase: Model: Serial No.: Retailer 1. All parts, pieces and components of this product are warranted against any man- ufacturing defects, which may arise within a period of 1 (one) year - being 90 (ninety) days of legal warranty and 9 (nine) months subject to contractual warran- ty - from the date when the Customer purchased the product, according to the...
  • Page 13 Customer to regularly make secure backup of the product data. 7. Intelbras is not liable for the installation of this product, as well as eventual at- tempts of fraud and/or sabotage in their products. Keep software and applications up to date, and if necessary, the required network protections against intrusions (hackers).
  • Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
