Checking the compatibility of vehicle and accessories

Requirements
Vehicle
Head-unit/monitor
Limitations
Video only
Factory rear-view camera
1.3.

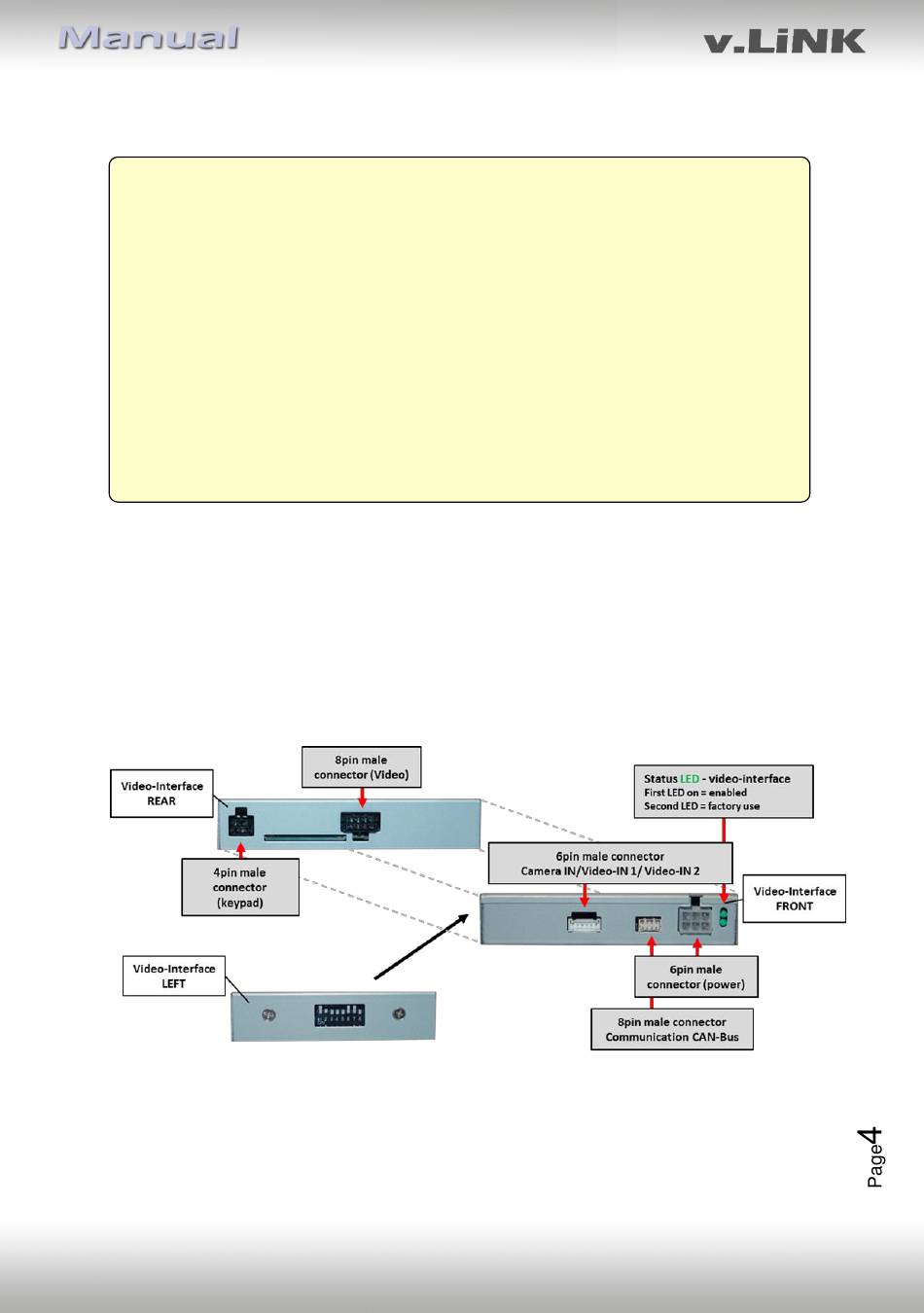

Boxes and connectors

1.3.1. Video-interface

The video-interface converts the connected after-market sources video signals to an GVIF
signal which is the inserted into the factory monitor on certain trigger options.
Version 01.07.2016
All manuals and user guides at all-guidesbox.com
Buick Lacrosse , Regal
Opel Insignia A, Astra J, Meriva B, Mokka
Chevrolet Cruze, Orlando
CD500, DVD600, DVD800, DVD900, CD600intelliLink and
DVD950intelliLink
The interface inserts ONLY video signals into the infotainment.
For sound use the possibly existing factory-audio-AUX-input or a
FM-modulator.
Automatic switch-back from inserted video to factory rear-view
camera only while reverse gear is engaged. To extend the switch-
back additional electronics is required.
RL2-DVD900
