1.2.

Checking the compatibility of vehicle and accessories

Requirements
Vehicle
Head-unit/monitor
Limitations
Video only
1.3.

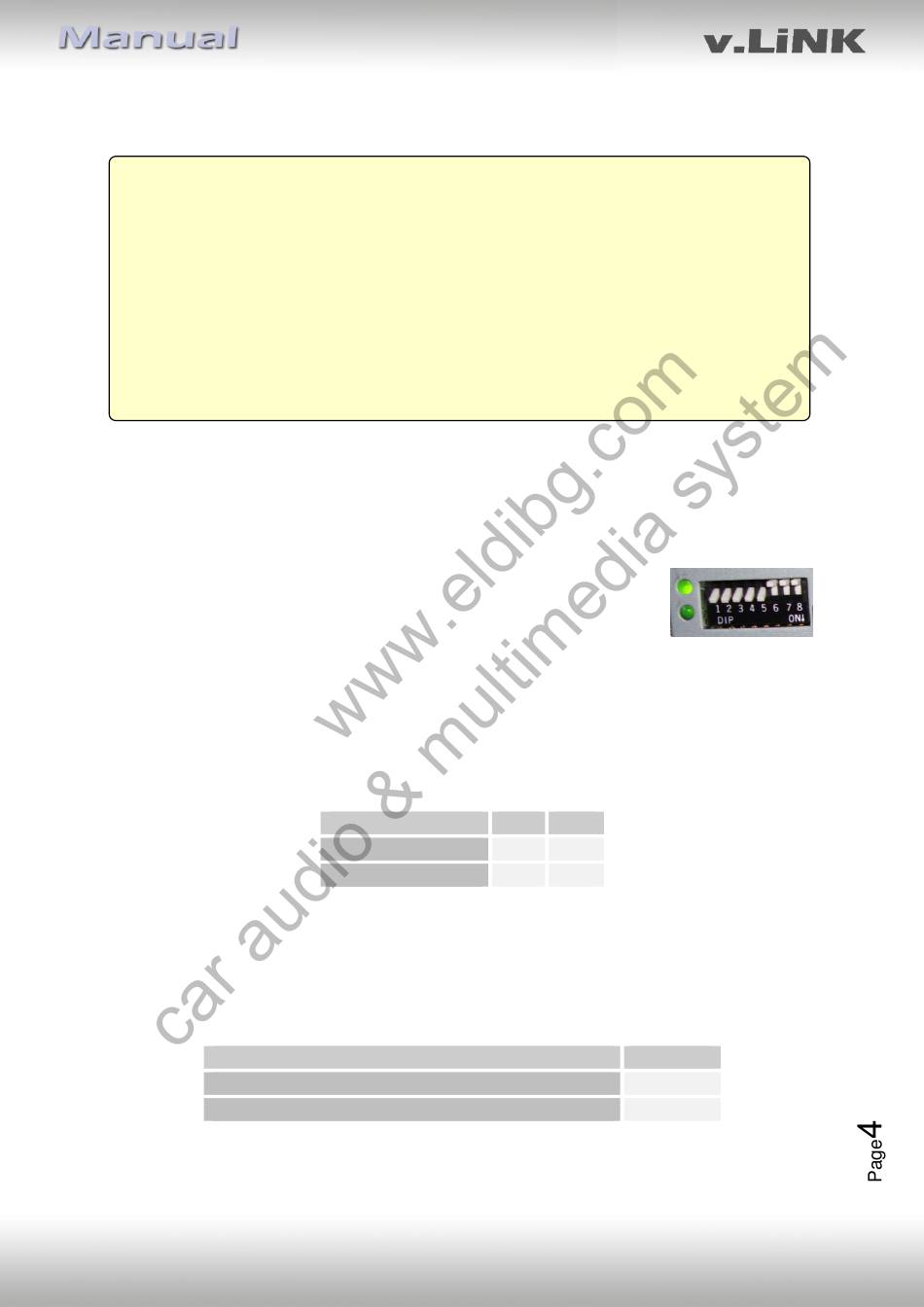

Dip-switch settings

With the video interface boxes dip-switches it is possible to select vehicle/navigation the
interface is to be installed in (dip 7 and 8), to select the video signal of an optional connected
after-market navigation (Dip 4), to dis- or enable the interfaces inputs
(dip 1 to 3) and to preselect the type of camera which is (to be) installed
(dip 5).
Dip position down is ON and position up is OFF.

1.3.1. Vehicle selection (dip 7-8)

Choose the vehicle/navigation/monitor the interface is to be installed to and set dip 7
through 8 according to the below table.

1.3.2. Video signal selection after-market navigation(Dip 4)

To the video interface's RGB-input it is possible to connect a RGB- or a VGA-video source. Set
dip 4 according to table.
After-Market Navigation
VGA 800x480 (RGB-Input Pin 4 H-Sync, Pin 8 V-Sync)
RGB NTSC 400(or480)x240
Version 18.12.2014
Audi A3 (8V), Seat Leon, Skoda Octavia 3, VW Golf 7, VW Polo 5
(6C) and other vehicles with
MIB High/Standard with 7" (Audi) respectively 8"
(Seat/Skoda/VW) and 5.8" Monitor
The interface inserts ONLY video signals into the infotainment.
For sound use the possibly existing factory-audio-AUX-input or a
FM-modulator.
Vehicle/ Navigation Dip 7 Dip 8
7"/8"-monitor
5.8"- monitor
OFF OFF
OFF ON
Dip 4
ON
OFF
VL2-MIB-2
