Connecting video-interface and GM-LAN box

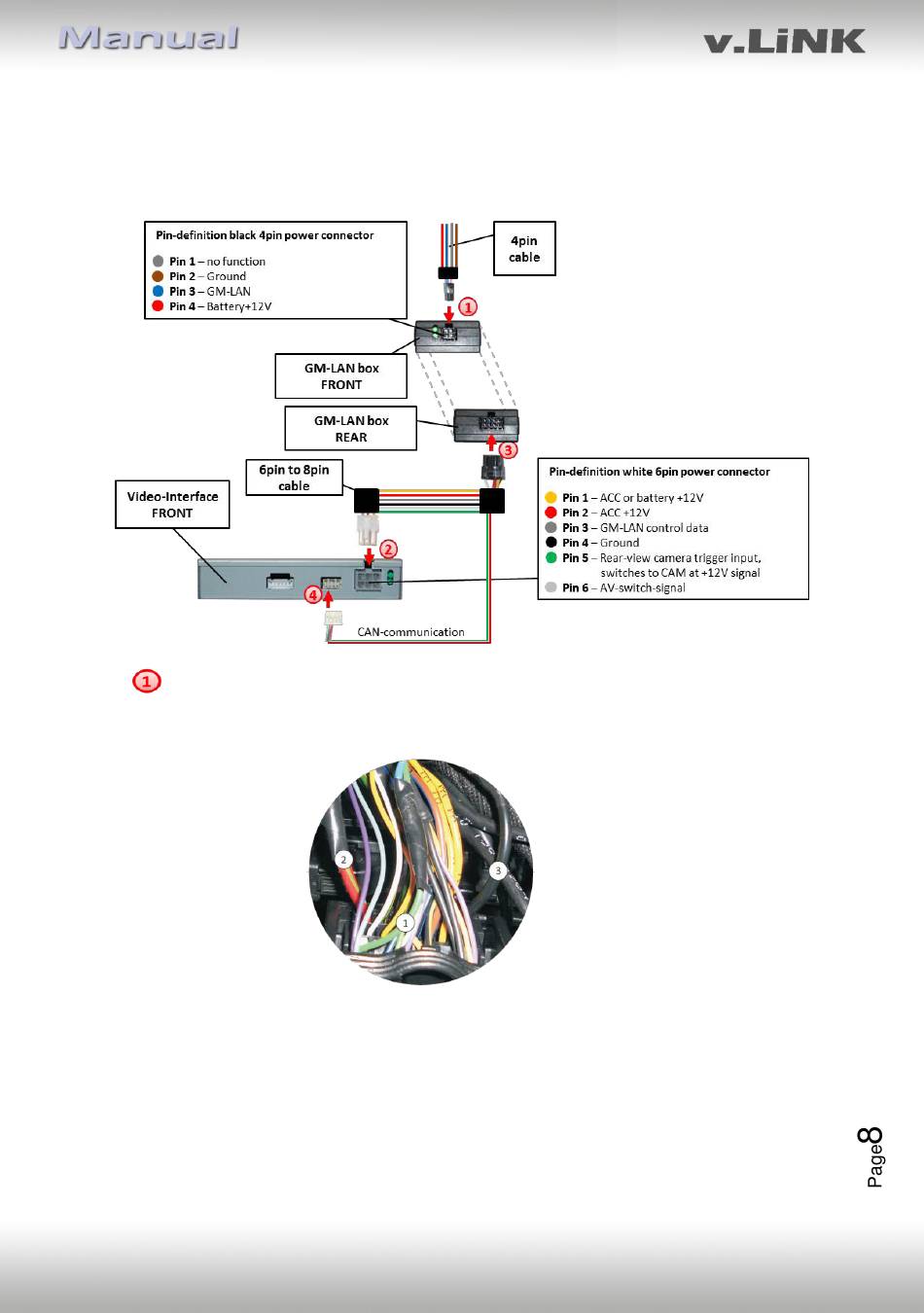

The GM-LAN box reads digital signals from the GM-LAN and converts them for the video-
interface. ACC +12V max. 0.5A (red of 6pin) and reverse gear +12V max. 0.5A (green of 6pin)
constant signal. Video-source switching (white of 6pin) as +12V impulse.
Connect black female 4pin Micro-Fit connector of the 4pin cable to the male 4pin
Micro-Fit connector of the GM-LAN-box.
Note: Check LEDs on GM-LAN-box after reconnecting the battery, one must be on.
1) GM-LAN
2) +12V Battery
3) Ground
Note: GM-LAN position can be different on certain vehicles
Version 01.07.2016
All manuals and user guides at all-guidesbox.com
Vehicle female Quadlock connector
