2.6.3

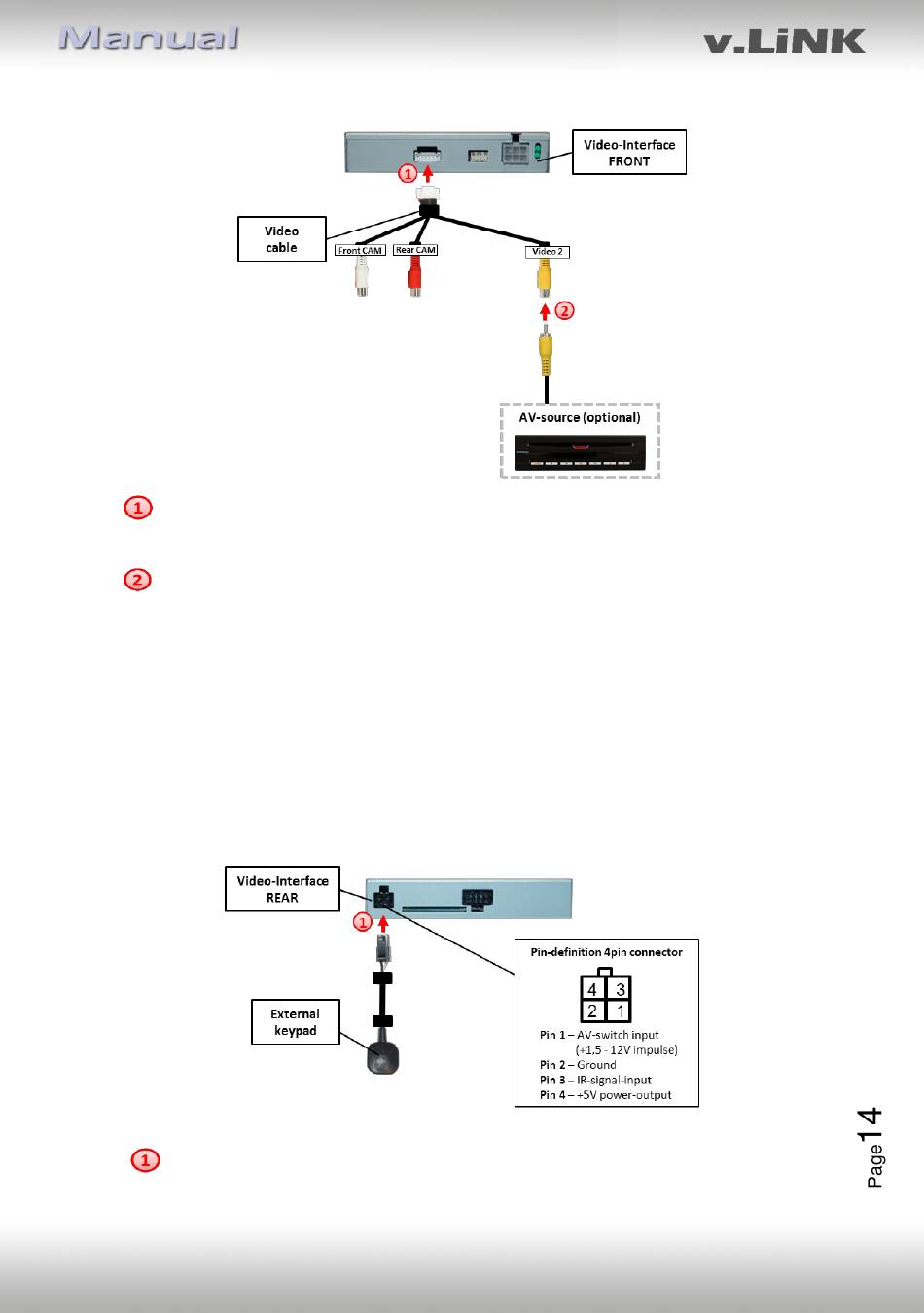

After Market Video Source
Connect 6pin male connector of video cable to female 6pin connector of
video interface
Connect video RCA of video source to yellow RCA "Video2" of video cable.
2.6.4 Audio Insertion
This interface can only insert video signals into the factory infotainment. If an AV-source is
connected, audio insertion must be done by factory audio AUX input or FM-modulator. The
inserted video-signal can be activated simultaneously to each audio-mode of the factory
infotainment.
2.7
Connection Video Interface and external keypad
Connect 4pin female Microfit connector of external keypad to male 4pin
Microfit connector of video interface
Version 01.07.2016
All manuals and user guides at all-guidesbox.com
RL2-DVD900
