v.link VL2-RLINK Manual

For dacia vehicles with lg head-unit and renault vehicles with rlink (lg) and medianav head-unit. video-inserter with 2 video inputs + rgb + rear-view camera input and can control.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

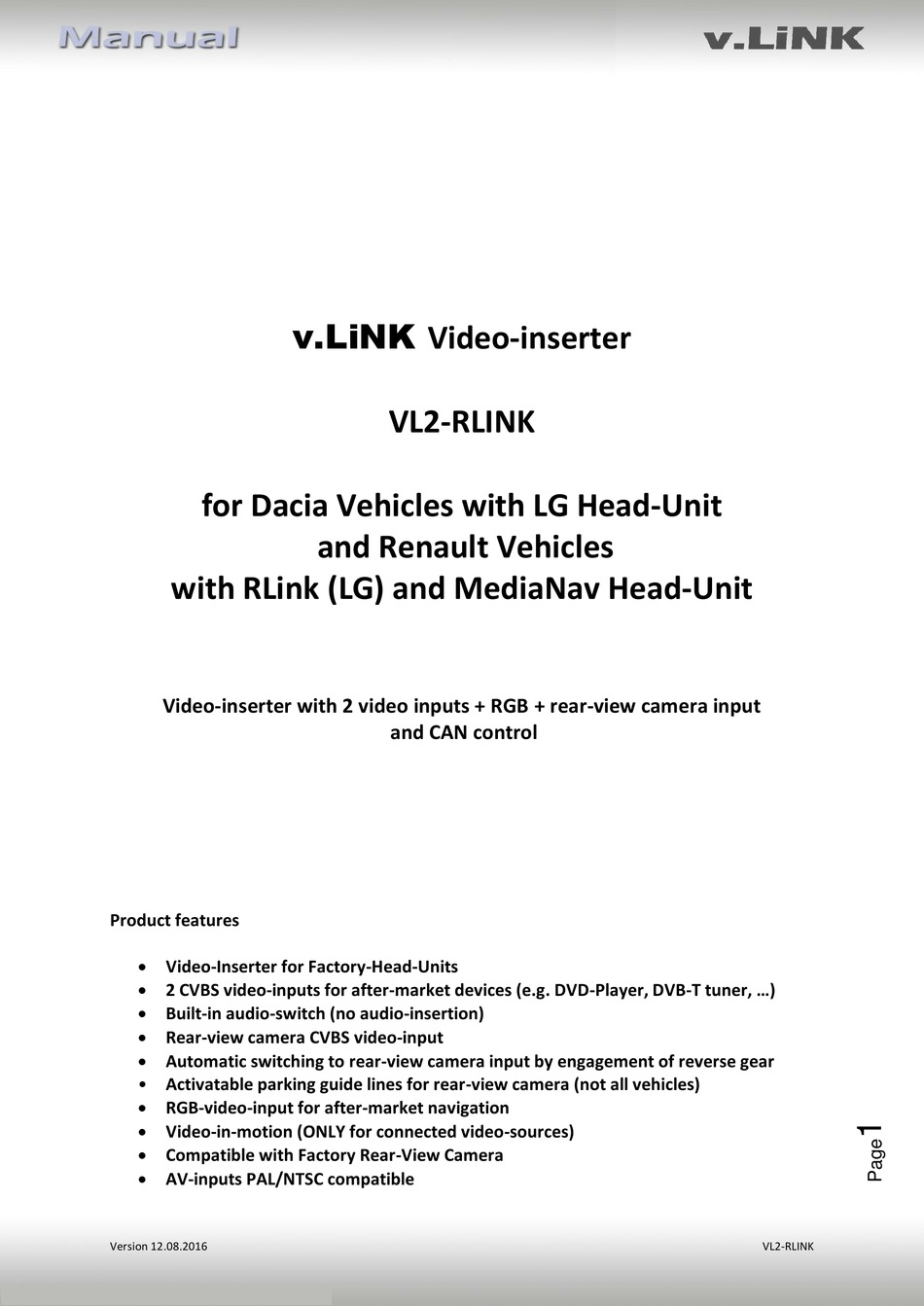

for Dacia Vehicles with LG Head-Unit
with RLink (LG) and MediaNav Head-Unit
Video-inserter with 2 video inputs + RGB + rear-view camera input
Product features
 Video-Inserter for Factory-Head-Units
 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
 Built-in audio-switch (no audio-insertion)
 Rear-view camera CVBS video-input
 Automatic switching to rear-view camera input by engagement of reverse gear
• Activatable parking guide lines for rear-view camera (not all vehicles)
 RGB-video-input for after-market navigation
 Video-in-motion (ONLY for connected video-sources)
 Compatible with Factory Rear-View Camera
 AV-inputs PAL/NTSC compatible
Version 12.08.2016
v.LiNK Video-inserter
VL2-RLINK
and Renault Vehicles
and CAN control
VL2-RLINK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL2-RLINK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for v.link VL2-RLINK

Summary of Contents for v.link VL2-RLINK

  • Page 1 Video-inserter VL2-RLINK for Dacia Vehicles with LG Head-Unit and Renault Vehicles with RLink (LG) and MediaNav Head-Unit Video-inserter with 2 video inputs + RGB + rear-view camera input and CAN control Product features  Video-Inserter for Factory-Head-Units  2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...

  • Page 2: Table Of Contents

    Case 2: CAN-box does not detect reverse gear 2.6.4.3. Video signal connection 2.7. Connecting video-interface and keypad 2.8. Picture settings and parking guide lines 3. Interface operation 3.1. By VOL-Button 3.2. By external keypad Specifications Frequently asked questions Technical support Version 12.08.2016 VL2-RLINK...

  • Page 3: Prior To Installation

    1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 12.08.2016 VL2-RLINK...

  • Page 4: Checking The Interface Compatibility Of Vehicle And Accessories

    To delay the switch reset, additional electronics is required. 1.3. Boxes and connectors 1.3.1. Video-interface The video-interface converts the connected after-market sources video signals to an LVDS signal which is the inserted into the factory monitor by various trigger options. Version 12.08.2016 VL2-RLINK...

  • Page 5: Can-Bus Box

    CVBS AV1-input enabled disabled CVBS AV2-input enabled Disabled RGB-input resolution 800x480 400x240 or 480x240 Rear-view cam type after-market factory or none No function set OFF No Function set OFF See following chapters for detailed information. Version 12.08.2016 VL2-RLINK...

  • Page 6: Enabling The Interface's Video Inputs (Dip 1-3)

    2.1. Place of installation The interface is installed by flex-wires to the monitor panel and at the rear of head-unit. For this purpose the housing of head-unit have to be opened. Version 12.08.2016 VL2-RLINK...

  • Page 7: Connection Scheme

    2.2. Connection Scheme Version 12.08.2016 VL2-RLINK...

  • Page 8: Connecting Video-Interface And Can-Box

    CAN, it is possible to install without CAN- box. In this case see also note in chapter after-market rear-view camera, how the inteface without CAN-Box is supposed to be connected. Version 12.08.2016 VL2-RLINK...

  • Page 9: Installation Of Flex-Wires Into Monitor Panel

    There are two possible ways of installation: 1. By means of the two 50Pin-Flex Wires (e.g. MediaNav) 2. By means of the to 60Pin-Flex Wires (z.B. Tomtom Monitor) Connect beige-coloured 20Pin-Connector of daughter PCB to 20Pin-Connector of video interface Version 12.08.2016 VL2-RLINK...
  • Page 10 60Pin: For connection of flex-wire PNL OUT to the original flex-wire of monitor platinum, please use the connector enclosed. 50Pin: Fix daughter PCB to mainboard of Head-Unit by means of spacers. 60Pin: Attach daughter PCB at the outer side of monitor. Please use enclosed long screws for easier mounting. Version 12.08.2016 VL2-RLINK...

  • Page 11: Connection To Head-Unit

    AV-sources and an after-market rear-view camera to the video-interface. Before final installation of the peripheral devices, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 12.08.2016 VL2-RLINK...

  • Page 12: After-Market Rgb Navigation

    Connect female 8pin connector of the RGB cable to the male 8pin connector of the video-interface. The loose grey wires have no function and have to be isolated. Connect male 6pin connector of the RGB cable to the after-Market navigation. Version 12.08.2016 VL2-RLINK...

  • Page 13: Video Sources To Av1 And Av2

    Connect 6pin male connector of video cable to female 6pin connector of video- interface Connect video RCA the AV1-source to the female RCA connector AV2 of video- interface. Connect male video RCA of AV2 source to female RCA connector AV2 of video- interface. Version 12.08.2016 VL2-RLINK...

  • Page 14: Audio-Switch And Audio-Insertion

    RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 12.08.2016 VL2-RLINK...

  • Page 15: After-Market Rear-View Camera

    CAM while reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 8pin cable. Version 12.08.2016 VL2-RLINK...
  • Page 16 Connect reverse gear light signal/power to coil (85) and ground to coil (86) of relais. Connect rear-view camera power and green wire (video interface side) of 6pin to 8pin cable to output (87) of relay. Connect permanent battery power to input (30) of relay. Version 12.08.2016 VL2-RLINK...

  • Page 17: Video Signal Connection

    CAM. Note: Picture settings for CAM input must be done in AV2. 2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 12.08.2016 VL2-RLINK...

  • Page 18: Picture Settings And Parking Guide Lines

    The following settings are available: Brightness Contrast Saturation Position H (horizontal) Position V (vertical) Guide CNTRL (ON Note: In case the CAN-Box does not support the vehicle, guide lines cannot be used. Version 12.08.2016 VL2-RLINK...

  • Page 19: Interface Operation

    Power consumption 4.8W Video input 0.7V~1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Weight 328g Dimensions (box only) B x H x T 152 x 22 x 92 mm Version 12.08.2016 VL2-RLINK...

  • Page 20: Frequently Asked Questions

    Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 12.08.2016 VL2-RLINK...

  • Page 21: Technical Support

    Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 12.08.2016 VL2-RLINK...
