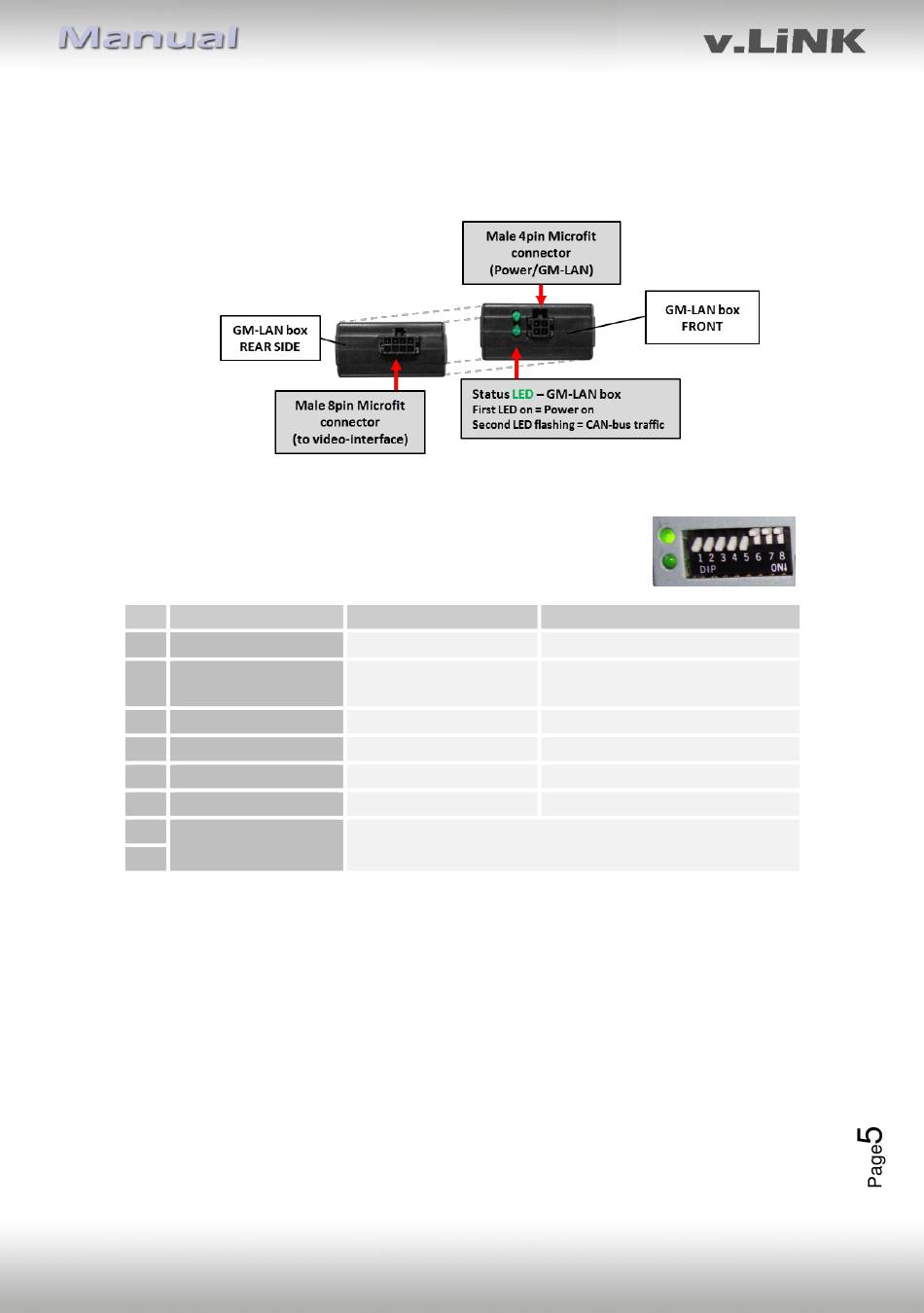

1.3.2. GM-LAN box

The GM-LAN box reads digital signals from the GM-LAN-bus and converts them for the
video-interface.
1.4.

Dip-switch settings

Some settings must be selected by the dip-switches on the
video-interface. Dip position down is ON and position up is OFF.
Dip Function
1 No Function
2 Input
Front Camera
3 Video 2
4 No Function
5 Rear-view cam type
6 No function
7 Monitor
selection
8
See following chapters for detailed information.
1.4.1.1. Enabling the interface's video inputs (dip 2-3)
Only the enabled video inputs can be accessed when switching through the interface's video
sources. It is recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.
Version 01.07.2016
All manuals and user guides at all-guidesbox.com
ON (down)
enabled
enabled
After-Market
-
Try all 4 possible combinations of dip 7 and 8 to find the
best picture (quality and size)
OFF (up)
Set OFF
disabled
disabled
Switch to OFF
Factory or none
Set OFF
RL2-DVD900
