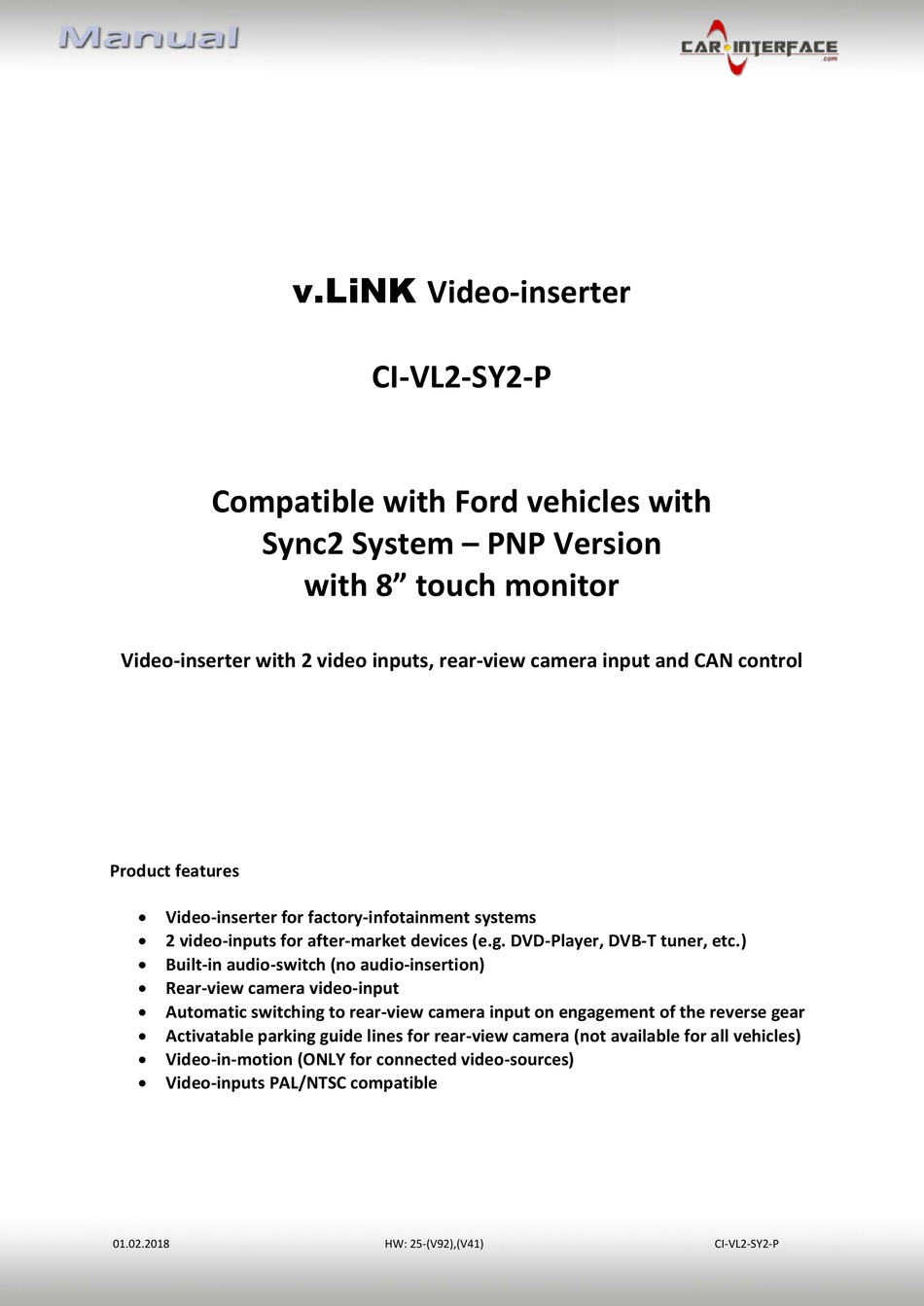

v.LiNK Video-inserter
CI-VL2-SY2-P
Compatible with Ford vehicles with
Sync2 System – PNP Version
with 8" touch monitor
Video-inserter with 2 video inputs, rear-view camera input and CAN control
Product features
Video-inserter for factory-infotainment systems
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, etc.)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs PAL/NTSC compatible
01.02.2018
HW: 25-(V92),(V41)
CI-VL2-SY2-P
Advertisement
Table of Contents
Related Manuals for v.link CI-VL2-SY2-P
Summary of Contents for v.link CI-VL2-SY2-P
- Page 1 Video-inserter CI-VL2-SY2-P Compatible with Ford vehicles with Sync2 System – PNP Version with 8” touch monitor Video-inserter with 2 video inputs, rear-view camera input and CAN control Product features Video-inserter for factory-infotainment systems 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, etc.) ...
-
Page 2: Table Of Contents
Connection Video signal of the rear-view camera 2.7. Connecting video-interface and keypad 2.8. Picture settings and guide lines 3. Interface operation 3.1. By Voice button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 5: Can-Bus Box
If set to ON, the interface switches to its rear-view camera input while the reverse gear is engaged. Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 6: Dip-Switch Settings Of The Can-Box
Dip position down is ON and position up is OFF. Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 Edge, Raptor, Explorer neu Edge, new Fusion After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 7: Installation
(U-Form und L-Form). In case of a low installation depth behind the monitor, the U-shape delivered module has to be changed to the L-shape module on base of the enclosed angle plate and screws, as shown below Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 8: Connection Schema
2.2. Connection schema Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 9: Connecting Video-Interface And Can-Box
Note: Check the LEDs on the video-interface after reconnecting the battery, one must be on. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 10: Connection To The Vehicle's Head Unit
Disconnect the female 24pin connector of the vehicle harness from the vehicle’s head-unit and connect it to the male 24pin connector of the PNP Power/CAN cable Connect the female 24pin connector of the PNP Power/CAN cable to the male 24pin connector of the vehicle’s head-unit. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 11: Connection To The Vehicle's Monitor
20pin connector (Box Side) opposite the cable to the female 20pin connector of the video interface. Take care for installing the cable in the right direction as both connectors are identical. (Pay attention to the wire`s caption “MONITOR SIDE” and “BOX SIDE”) Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 12: Connecting Of Peripheral Devices
Connect the video RCA of the AV-source 2 to the female RCA connector Video 2 of the video cable. Note: The single grey wire is out of function and should be isolated. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 13: Audio-Switch And Audio-Insertion
RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 14: After-Market Rear-View Camera
CAM while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 12pin cable. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 15: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Connect the rear-view camera power wire and the green wire (video interface side) of 6pin to 8pin cable both to output (87) of the relay. Connect permanent battery power to input (30) of relay. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 16: Connecting Video-Interface And Keypad
Note: The picture settings for Camera IN input have to be adjusted in AV2. 2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 17: Picture Settings And Guide Lines
Note: If there is no communication between the CAN box and the vehicle`s CAN-bus (several vehicles aren’t compatible), the .reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 18: Interface Operation
154 x 22 x 92 mm (W x H x D) Dimensions CAN-box 73 x 22 x 30 mm (W x H x D) Dimensions intermediate modul 167 x 36 x 105 mm (W x H x D) Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... -
Page 19: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P... - Page 20 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 01.02.2018 HW: 25-(V92),(V41) CI-VL2-SY2-P...
