Compatible with Ford vehicles with
Video-inserter with 2 video + RGB + rear-view camera input and CAN control
Product features
Video-inserter for factory-navigation systems
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (vehicle specific restrictions
possible)
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
Video-inputs PAL/NTSC compatible
Version 06.04.2017
v.LiNK Video-inserter
CI-VL2-SY2-N
Sync2 System
with 8" touch monitor
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for v.link CI-VL2-SY2-N
Summary of Contents for v.link CI-VL2-SY2-N

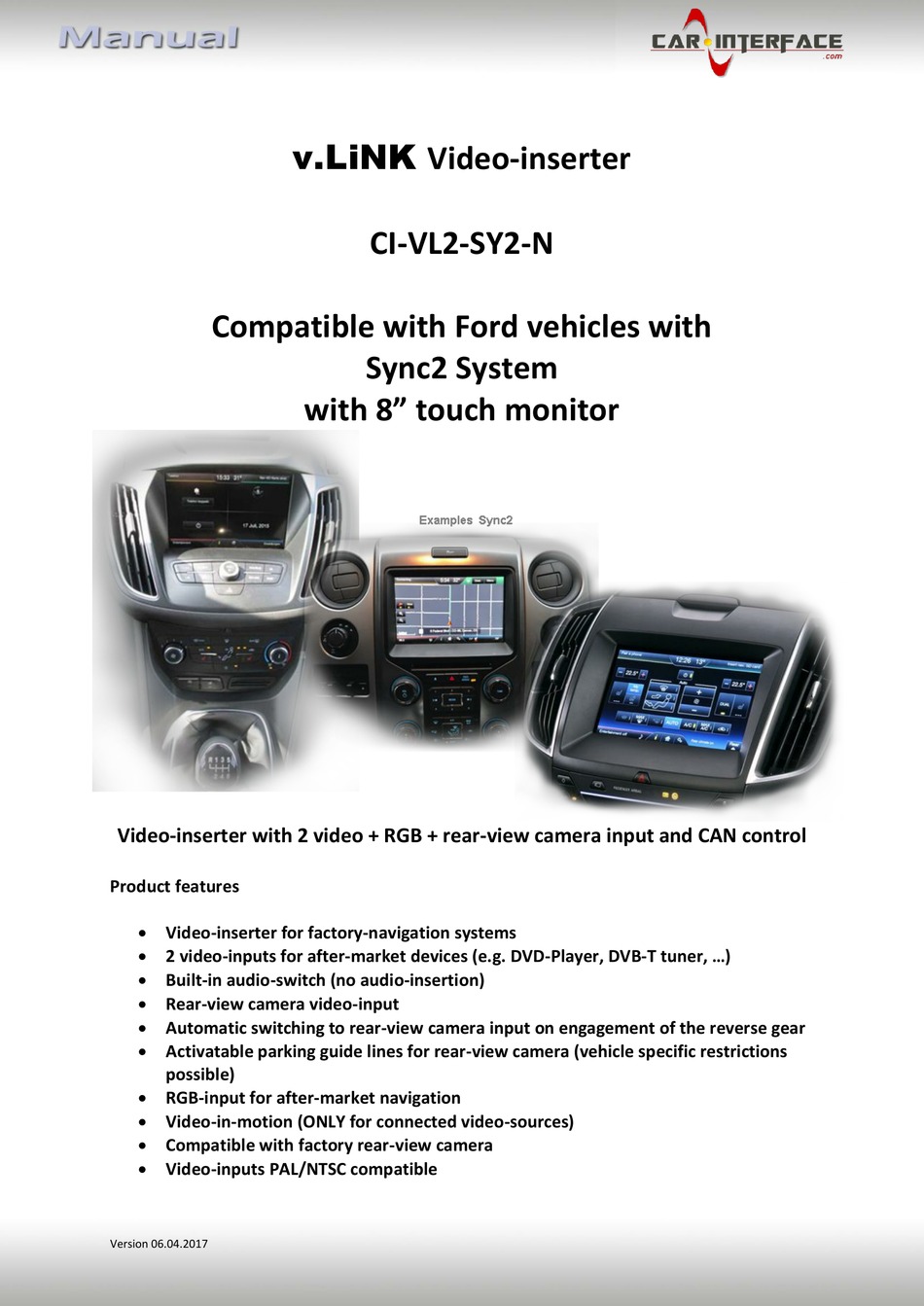

- Page 1 Video-inserter CI-VL2-SY2-N Compatible with Ford vehicles with Sync2 System with 8” touch monitor Video-inserter with 2 video + RGB + rear-view camera input and CAN control Product features Video-inserter for factory-navigation systems 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …) ...
-
Page 2: Table Of Contents
Case 2: CAN-box does not receive the reverse gear signal 2.6.4.3. Connection Video signal 2.7. Connecting video-interface and keypad 2.8. Picture settings and guide lines 3. Interface operation 3.1. By Voice button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 06.04.2017 CI-VL2-SY2-N... -
Page 3: Prior To Installation

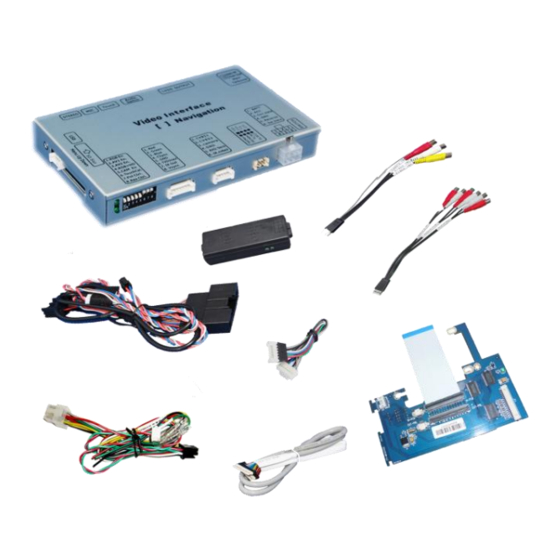

Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 06.04.2017 CI-VL2-SY2-N... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To delay the switch-back, an additional electronic part is required. 1.3. Boxes and connectors 1.3.1. Video Interface The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Version 06.04.2017 CI-VL2-SY2-N... -
Page 5: Can-Bus Box
Only the enabled video inputs can be accessed by switching through the interface’s video sources. It is recommended to enable only the required inputs, because the disabled inputs will be skipped while switching through the video interfaces inputs. Version 06.04.2017 CI-VL2-SY2-N... -
Page 6: Rgb-Video Input Signal Selection For After-Market Navigation (Dip 4)
Dip position down is ON and position up is OFF. If the CAN-Bus communication doesn`t succeed, change the position of dip switch 4 and make a power reset before checking. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 06.04.2017 CI-VL2-SY2-N... -
Page 7: Installation
2.1.1. Place of installation for the interface-box The interface is built to be connected behind the vehicle`s monitor and head-unit. 2.1.2. Place of installation for the daughter PCB The interface’s daughter PCB is built to be installed in the monitor housing. Version 06.04.2017 CI-VL2-SY2-N... -
Page 8: Connection Schema
2.2. Connection schema Version 06.04.2017 CI-VL2-SY2-N... -
Page 9: Connecting Video-Interface And Can-Box
Note: Check the LEDs on the video-interface after reconnecting the battery, one must be on. Note: No liability for vehicle wire colours and pin definition! Changes by the vehicle manufacturer are possible. The given information has to be verified by the installer. Version 06.04.2017 CI-VL2-SY2-N... -
Page 10: Connection To The Vehicle's Head Unit
Disconnect the female 24pin connector of the vehicle harness from the vehicle’s head-unit and connect it to the male 24pin connector of the PNP Power/CAN cable Connect the female 24pin connector of the PNP Power/CAN cable to the male 24pin connector of the vehicle’s head-unit. Version 06.04.2017 CI-VL2-SY2-N... -
Page 11: Connection To The Vehicle's Monitor
20pin connector (Box Side) opposite the cable to the female 20pin connector of the video interface. Take care for installing the cable in the right direction as both connectors are identical. (Pay attention to the wire`s caption “MONITOR SIDE” and “BOX SIDE”) Version 06.04.2017 CI-VL2-SY2-N... -
Page 12: Warning Notes, Concerning The Installation Of Ribbon Cables
Connect the RGB cable’s female 8pin connector to the video-interface's male 8pin connector. The disconnected grey wires don’t have any function and have to be isolated. Connect the RGB cable’s male 6pin connector to the after-Market navigation. Version 06.04.2017 CI-VL2-SY2-N... -
Page 13: Video-Sources To Av1 And Av2
Connect the video cable’s female 6pin connector to the video interface’s male 6pin connector . Connect of the AV-source 1’s video RCA to the video cable’s female RCA connector Video IN 1. Connect the AV-source 2’s video RCA to the video cable’s female RCA connector Video IN2. Version 06.04.2017 CI-VL2-SY2-N... -
Page 14: Audio-Switch And Audio-Insertion
RCA port AV-Out of the audio cable. Connect the audio-RCA of the AV-source 1 to the female RCA port AV1 of the audio cable. Connect the audio-RCA of the AV-source 2 to the female RCA port AV2 of the audio cable. Version 06.04.2017 CI-VL2-SY2-N... -
Page 15: After-Market Rear-View Camera
CAM while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 12pin cable. Version 06.04.2017 CI-VL2-SY2-N... -
Page 16: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Connect the reverse gear light signal/power to coil (85) and ground to coil (86) of relay. Connect the rear-view camera power wire and the green wire (video interface side) of 6pin to 8pin cable both to output (87) of the relay. Connect permanent battery power to input (30) of relay. Version 06.04.2017 CI-VL2-SY2-N... -
Page 17: Connecting Video-Interface And Keypad
CAM. Note: The picture settings for CAM input have to be adjusted in AV2. 2.7. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 06.04.2017 CI-VL2-SY2-N... -
Page 18: Picture Settings And Guide Lines
Note: If there is no communication between the CAN box and the vehicle`s CAN-bus (several vehicles aren’t compatible), the .reverse gear guide-lines can`t be shown during the vehicle’s operation, even if they once appear after having switched the system to powerless! Version 06.04.2017 CI-VL2-SY2-N... -
Page 19: Interface Operation
RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions video-box 155 x 22 x 90 mm (W x H x D) Dimensions CAN-box 73 x 22 x 30 mm (W x H x D) Version 06.04.2017 CI-VL2-SY2-N... -
Page 20: Faq - Trouble Shooting-Interface Functions
Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 06.04.2017 CI-VL2-SY2-N... - Page 21 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 06.04.2017 CI-VL2-SY2-N...
