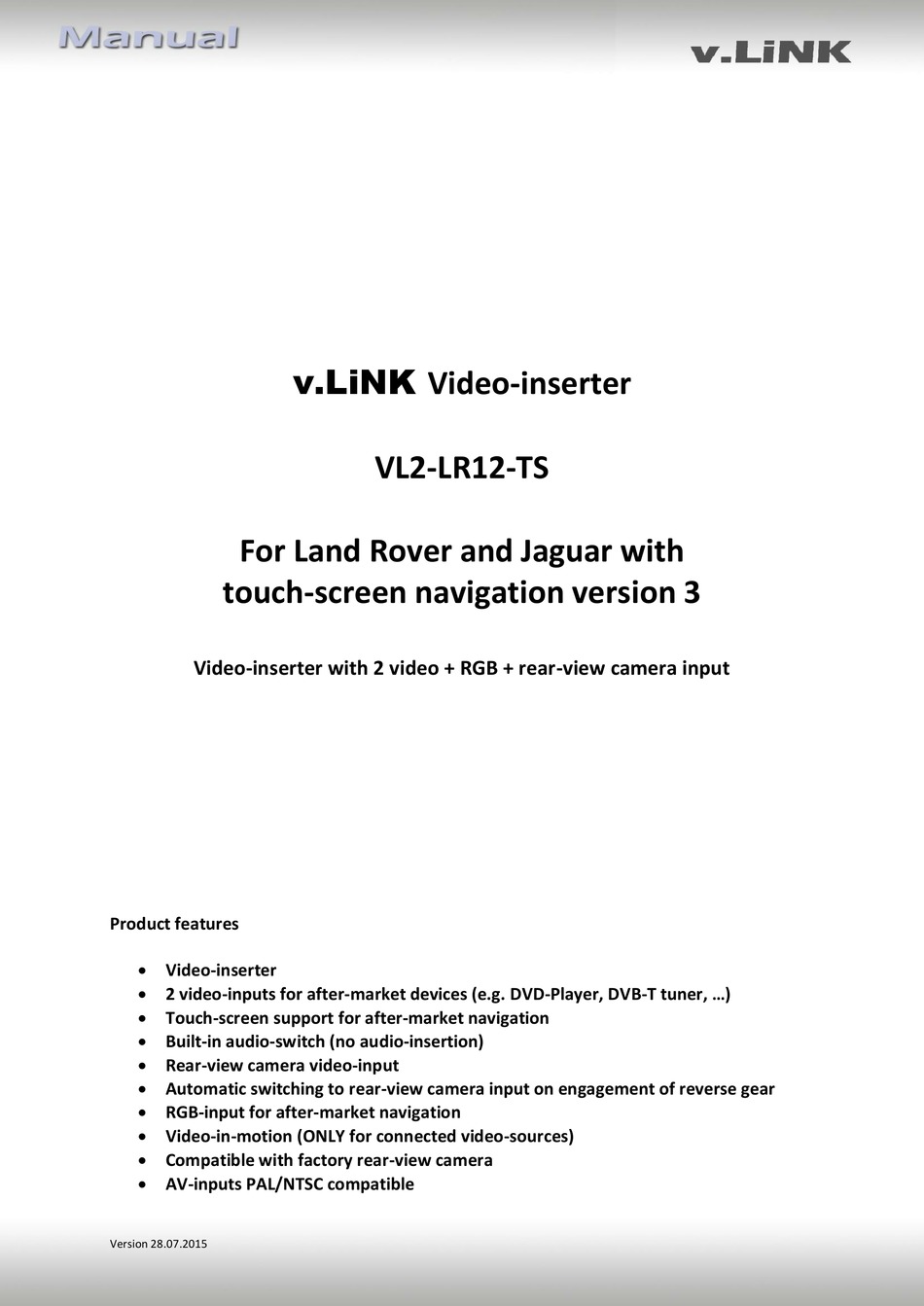

For Land Rover and Jaguar with
touch-screen navigation version 3
Video-inserter with 2 video + RGB + rear-view camera input
Product features
 Video-inserter
 2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
 Touch-screen support for after-market navigation
 Built-in audio-switch (no audio-insertion)
 Rear-view camera video-input
 Automatic switching to rear-view camera input on engagement of reverse gear
 RGB-input for after-market navigation
 Video-in-motion (ONLY for connected video-sources)
 Compatible with factory rear-view camera
 AV-inputs PAL/NTSC compatible
Version 28.07.2015
v.LiNK Video-inserter
VL2-LR12-TS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL2-LR12-TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for v.link VL2-LR12-TS

  • Page 1 Video-inserter VL2-LR12-TS For Land Rover and Jaguar with touch-screen navigation version 3 Video-inserter with 2 video + RGB + rear-view camera input Product features  Video-inserter  2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, …)  Touch-screen support for after-market navigation ...
  • Page 2: Table Of Contents

    2.5.4. After-market navigation 2.6. Connecting video-interface and keypad 2.7. Picture settings 2.8. Activation of parking guide lines for rear-view camera 3. Interface operation 3.1. By NAV-button 3.2. By keypad 4. Specifications 5. Connections (video-interface) 6. Technical support Version 28.07.2015 VL2-LR12-TS...
  • Page 3: Prior To Installation

    Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 28.07.2015 VL2-LR12-TS...
  • Page 4: Checking The Compatibility Of Vehicle And Accessories

    Choose the vehicle/navigation/monitor the interface is to be installed to and set dip 7 through 8 according to the below table. Vehicle/Navigation Dip 7 Dip 8 7“ monitor, e.g.. Jaguar and Discovery 4 8“ monitor, e.g. Evoque Version 28.07.2015 VL2-LR12-TS...
  • Page 5: Video Signal Selection After-Market Navigation(Dip 4)

    6pin to 8pin cable at the black 8pin connector and connect it to the reverse gear light (+12V). For this use a relay because the reverse gear light of the vehicle is clocked (relay AC-RW1230 and AC-RS5 optional available). Version 28.07.2015 VL2-LR12-TS...
  • Page 6: Dip-Switch Settings Of The Can-Box

    The interface is installed on the backside of the vehicle’s monitor. The external daughter PCB is plugged in the flex cable between panel-board and main-panel of the factory monitor. Therefore, the monitor must be removed and the body must be opened. Version 28.07.2015 VL2-LR12-TS...
  • Page 7: Connection Schema

    2.2. Connection schema Version 28.07.2015 VL2-LR12-TS...
  • Page 8: Connecting Video-Interface And Can-Box

    6pin Molex connector of the video-interface. Connect black female 8pin Micro-Fit connector of the 6pin to 8pin cable to male 8pin Micro-Fit connector of the CAN-box. Note: Check LEDs on video-interface after reconnecting the battery, one must be on. Version 28.07.2015 VL2-LR12-TS...
  • Page 9: Connection To The Factory Monitor

    Connect the ribbon cable of the daughter-PCB to the ribbon cable-socket of the main- board. Fix the daughter-PCB at the spacers of the main-board. Connect the interface-cable to the male 20pin connector of the daughter-PCB and to the male 20pin connector on the rear of the video-interface. Version 28.07.2015 VL2-LR12-TS...
  • Page 10: Connecting Power And Can-Bus

    Before final installation of the peripheral devices, we recommend a test-run to detect incompatibility of vehicle and interface. Due to changes in the production of the vehicle manufacturer is always the possibility of incompatibility. Version 28.07.2015 VL2-LR12-TS...
  • Page 11: Video-Sources To In1 And In2

    It is possible to switch the audio signals from the to IN1 and IN2 connected AV-sources parallel to the video-signal of the respective AV-source by video-interface’s built-in audio- switch. Version 28.07.2015 VL2-LR12-TS...
  • Page 12 Audio input signal R/L of source IN1 Audio output signal R/L of factory audio AUX or FM-modulator Ground No function Note: When switching the video interface from video-IN1 to video-IN2, the audio will also automatically be switched. Version 28.07.2015 VL2-LR12-TS...
  • Page 13: After-Market Rear-View Camera

    6pin to 8pin cable at the black 8pin connector and connect it to the reverse gear light (+12V). For this use a relay because the reverse gear light of the vehicle is clocked (relay AC-RW1230 and AC-RS5 optional available). Note: Set Dip 5 to ON. Version 28.07.2015 VL2-LR12-TS...
  • Page 14: After-Market Navigation

    The loose grey wires have no function and have to be isolated. Connect male 6pin connector of the RGB cable to the after-Market navigation. 2.6. Connecting video-interface and keypad Connect the female 4pin connector of the keypad to the male 4pin connector of the video-interface. Version 28.07.2015 VL2-LR12-TS...
  • Page 15: Picture Settings

    OSD. Press the MENU button to open settings menu on the OSD and to switch to the next setting. Choose menu item “Guide Line” and activate (ON) or deactivate (OFF) parking guide lines by UP and DOWN buttons. Version 28.07.2015 VL2-LR12-TS...
  • Page 16: Interface Operation

    Power consumption 2.4W Video input 0.7V~1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Weight 195g Dimensions (box only) B x H x T 182 x 24 x 100 mm Version 28.07.2015 VL2-LR12-TS...
  • Page 17: Connections (Video-Interface)

    5. Connections (video-interface) Version 28.07.2015 VL2-LR12-TS...
  • Page 18 Camera is being tested under Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 28.07.2015 VL2-LR12-TS...
  • Page 19: Technical Support

    Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 45 D-47445 Moers +49 2841 949970 Email mail@navlinkz.de 10R-03 5384 Made in China Version 28.07.2015 VL2-LR12-TS...
