for Mercedes Benz vehicles
generations NTG3, NTG4 with
Comand APS, Audio50 APS or Audio 20
with 10pin HSD LVDS connector on the monitor

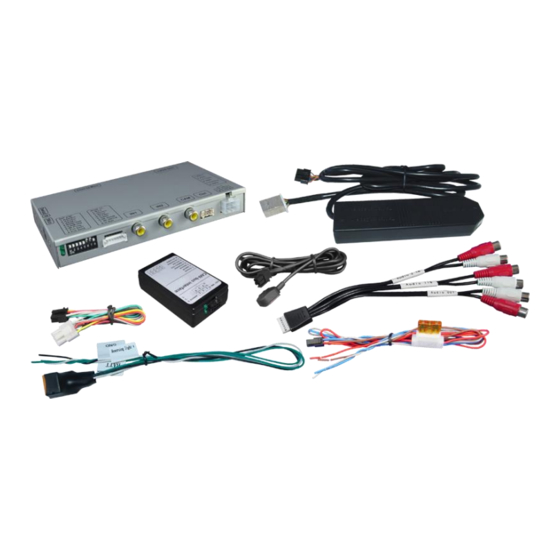

Video-inserter with 2 video + RGB + rear-view camera input and CAN control
Product features
Video-inserter for factory-infotainment monitors
2 video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner, ...)
Built-in audio-switch (no audio-insertion)
Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of reverse gear
RGB-input for after-market navigation
Video-in-motion (ONLY for connected video-sources)
Compatible with factory rear-view camera
AV-inputs PAL/NTSC compatible
Version 31.07.2012
v.LiNK Video-inserter
VL2-MBN4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for v.link VL2-MBN4
Summary of Contents for v.link VL2-MBN4

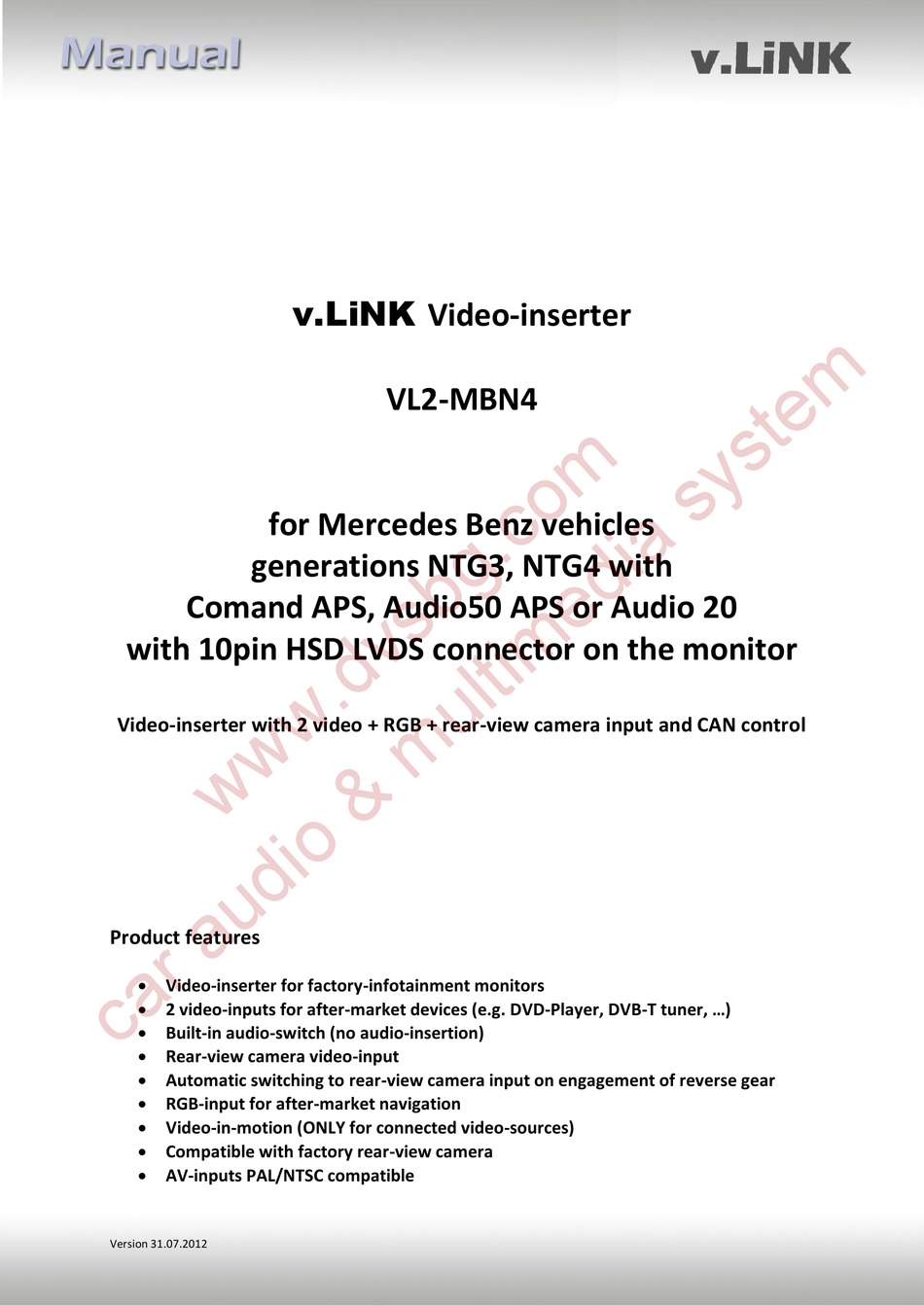

- Page 1 Video-inserter VL2-MBN4 for Mercedes Benz vehicles generations NTG3, NTG4 with Comand APS, Audio50 APS or Audio 20 with 10pin HSD LVDS connector on the monitor Video-inserter with 2 video + RGB + rear-view camera input and CAN control Product features ...
-
Page 2: Table Of Contents
To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded. Version 31.07.2012 VL2-MBN4... -
Page 3: Prior To Installation
Head-unit/monitor Comand APS, Audio50 APS or Audio20 with 10pin HSD LVDS connector on the monitor Limitations Video only The interface inserts ONLY video signals into the infotainment. For sound use the possibly existing factory-audio-AUX-input or a FM-modulator. Version 31.07.2012 VL2-MBN4... -
Page 4: Dip-Switch Settings
Video-input ON (down) OFF (up) Dip 1 enabled disabled Dip 2 Video IN1 enabled disabled Dip 3 Video IN2 enabled disabled Version 31.07.2012 VL2-MBN4... -
Page 5: Rear-View Camera Settings (Dip 5)
If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent. 2.1. Place of installation The interface is installed on the backside of the vehicle’s monitor. Version 31.07.2012 VL2-MBN4... -
Page 6: Connections
Pin 4 (Pin 4, E-class 2011) Pin 1 (grey) - CAN-LOW No liability for vehicle wire colors and pin definition! 8pin connector of the factory Possible changes by the vehicle manufacturer. The given monitor information must be verified by the installer. Version 31.07.2012 VL2-MBN4... -
Page 7: Installation Procedure - Function Check
If audio switch SW-A2X1 shall be used, connect the audio wires and check the audio function ONLY after positive function check proceed with final installation of the video sources! After installation and connection of the real video source(s), adjust picture settings (see chapter 2.4.) Version 31.07.2012 VL2-MBN4... -
Page 8: Picture Settings
Audio pins Definition Audio input signal R/L of source IN2 Audio input signal R/L of source IN1 Audio output signal L/R of factory audio AUX or FM-modulator Ground No function Audio-switch- port Audio-cable Video-interface Version 31.07.2012 VL2-MBN4... -
Page 9: Interface Operation
Power consumption 2.4W Video input 0.7V~1V RGB-Video amplitude 0.7V with 75 Ohm impedance Temperaturr range -40°C to +85°C Video input formats PAL/NTSC Weight 195g Dimensions (box only) B x H x T 182 x 24 x 100 mm Version 31.07.2012 VL2-MBN4... - Page 10 Version 31.07.2012 VL2-MBN4...
