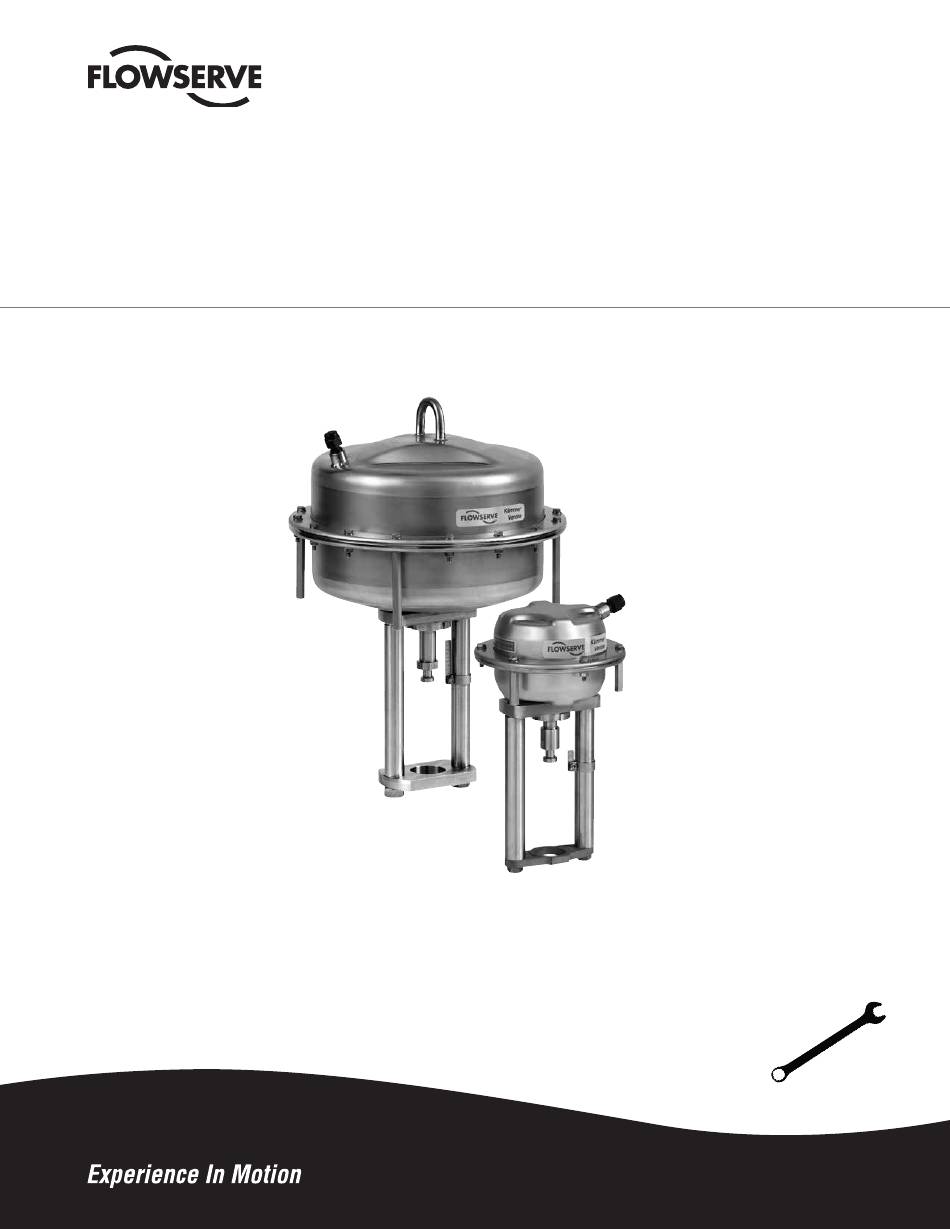

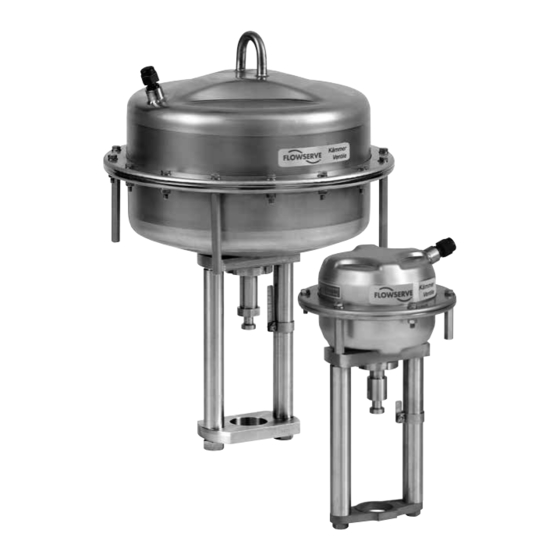

- Page 1 USER INSTRUCTIONS User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® ® Pneumatic Diaphragm On-Off Actuators Installation Operation Series 2, Types: P2, P3, P4 Maintenance Instructions FCD KMENIM0001-03 06/17...
- Page 2 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® ® ® Index Using Kämmer valves and actuators correctly. Unpacking Installation Quick check Maintenance Remove and install actuator Reverse the actuator action Disassemble and assemble valve Trouble-shooting chart...
- Page 3 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® USING KÄMMER VALVES AND ACTUATORS CORRECTLY General Qualified personnel The following instructions are designed to assist in unpa- Qualified personnel are people who, on account of cking, installing and performing maintenance as required their training, experience and instruction and their on Kämmer products.
-
Page 4: Installation
DANGER: Between actuator and valve there are WARNING: If slings are used, be aware that the centre moving parts. To avoid injury Flowserve provides of gravity of the Valve/ actuator may be above the lifting pinch-point-protection in the form of cover plates, STOP! point. -
Page 5: Quick Check
Check fail-safe position. To do this, close supply pressure and maintenance please contact your nearest and observe whether the valve opens or closes as FLOWSERVE office. defined. After use at fluctuating temperatures, re-tighten all bolt connections and check for leaks. - Page 6 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® ® ® Washer Bushing O-Ring 22 x 2 Guide O-Ring 32,99 x 2,62 Lower body Flange Yoke plate Nut M 38 x 1,5 Actuator stem Yoke rod Coupling half Screw Coupling insert...
- Page 7 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® Service to the actuator is best performed when the actuator is removed from the valve body. For the purpose of these instructions, consider the actuatoras a separate subassembly with the procedures described in these instructions being performed on a bench. However, many service repairs and adjustments can be accomplished in the field while the actuator and valve body are still connected to each other.
- Page 8 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® ® ® Washer Bushing O-Ring 22 x 2 Guide O-Ring 32,99 x 2,62 Lower body Flange Yoke plate Nut M 38 x 1,5 Actuator stem Yoke rod Coupling half Screw Coupling insert...
- Page 9 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® 7.1.10 With a suitable press compress the spring set. DISASSEMBLE AND ASSEMBLE ACTUATOR 7.1.11 Secure the actuator stem (10) from rotating with a wrench (refer to fig. 1) across the flats on the stem’s lower part and retighten the DANGER: Actuators with “spring-to-close”...
- Page 10 User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® ® ® 8.1.2.6 Remove following parts: 8.2.2 Actuator action spring-to-close washer (1), diaphragm (29), piston (28), spring 8.2.2.1 Insert the guide (4) into the lower body half. set (30), spring plate (27), plate (26) and spacer 8.2.2.2 Replace the upper yoke plate ensuring that the nose (25).
-
Page 11: Troubleshooting Chart
User Instructions Series 2, Type P2, P3, P4 - KMENIM0001-03 - 06.17 ® 9 TROUBLESHOOTING CHART Problem Possible cause Corrective action Stem pulsates Unstable air supply Check air supply Vent or passage blocked Clean vent or passage Actuator slow Air supply too low Adjust air supply Diaphram case leaks air Seal diaphram case... - Page 12 Fax: +1 412 787 1944 Singapore Flowserve Pte Ltd 12 Tuas Avenue 20 Singapore, 638824 Singapore Tel.: +65 6879 8989 Fax: +65 6862 4940 Yout contact: All data subject to change without notice ©03.2002 Flowserve Corporation. Flowserve and Kämmer are trademarks of Flowserve Corporation...
