Insportline Kalistic User Manual

Magnetic upright bike

Advertisement

Quick Links

USER MANUAL - EN
IN 7559/IN 7559-2 Magnetic Upright Bike inSPORTline
Kalistic
(ST-2630)
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kalistic and is the answer not in the manual?

Questions and answers

Summary of Contents for Insportline Kalistic

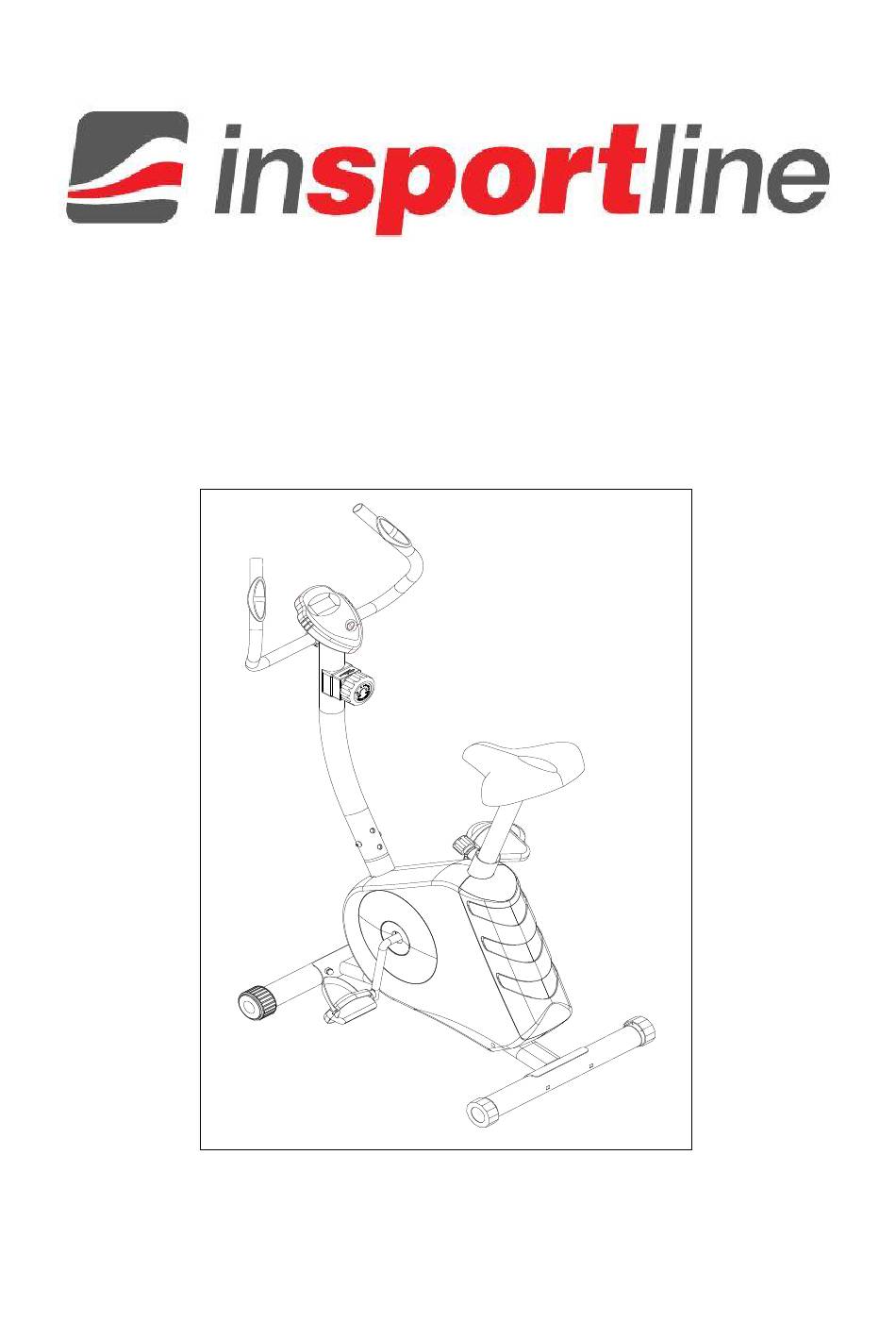

  • Page 1 USER MANUAL - EN IN 7559/IN 7559-2 Magnetic Upright Bike inSPORTline Kalistic (ST-2630) IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE...
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT SAFETY INFORMATION ....................3 EXPLODED VIEW (A) ..........................4 EXPLODED VIEW (B) ..........................5 PARTS LIST ............................6 ASSEMBLY ............................. 8 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........13...
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To guarantee your safety and health, please use this equipment correctly. Please read the information as below carefully before using this equipment. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
  • Page 4: Exploded View (A)

    EXPLODED VIEW (A)
  • Page 5: Exploded View (B)

    EXPLODED VIEW (B)
  • Page 6: Parts List

    PARTS LIST Description Q’TY Computer Computer cable Tension Control Cap 71*58*40 Bolt M5*16 Washer d5*Φ10*1 Tension wire Force tube join Handle pulse Φ25 Washer d6*Φ12*1 Bolt ST4.0*19 Handlebar join Spacer d8 Bolt M8*30*S6 Washer d8*Ф20*1.5*R30 Bolt M8*16*S6 Foam gripΦ25*5*470 Nylon nut M8 Washer d8*Ф16*1.5 Main frame join Knob M16*1.5*22*Φ37...
  • Page 7 Description Q’TY Nut 2 Inductor Crank cover Rear cover of chain cover Square magnet 40*25*10 Magnet location grid Bolt M6*16 Spacer d6 Washer d6*Φ12*1.2 Washer d12 Tension spring Φ1.5 Magnetic board join Magnetic board axle Bolt ST4.2*19 Bolt ST4.2*16 Fly wheel 2KG Flywheel axle Nut M10*1*H2 Bearing...
  • Page 8: Assembly

    ASSEMBLY STEP 1: Attach front bottom tube (26), back bottom tube (31) to main frame join (19) with bolt (28), washer (14) and nut (29). Lock pedal (33L/R) to crank of main frame join (19).
  • Page 9 STEP 2: Secure the saddle (25) to the Seat post join (22) with the washer (18) and nylon nut (17) Insert the Seat post join (22) to the main frame (19), then tighten it after adjusting it to the suitable position.
  • Page 10 STEP 3: Connect sensor wire (35) with Trunk wire (34). Connect tension wire (2) with tension wire (6). Lock force tube join (7) to main frame join (19) with bolt (15) and washer (14).
  • Page 11 STEP 4: Fit handlebar join (11) into the cap of main frame tube join, lock with bolt (13) and spacer (12). Lock cap (3) into handlebar.
  • Page 12 STEP 5: Connect computer wire (1a) with inductor wire (34). Lock computer (1) into computer board of force tube join (7) with bolt (36), insert wire (30) into the hold of computer’s back. Installation is completed.
  • Page 13: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
  • Page 14 If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller is eligible to require a compensation for all the costs arising from the repair. The cost shall be calculated according to the valid price list of services and transport costs.

This manual is also suitable for:

In 7559In 7559-2
