- Page 1 4KEX100-L 100M HDMI HDBase-T Extender User Manual...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 3: Important Safety Instructions
Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 4: Table Of Contents
Table of Contents Overview ....................... 1 Package Contents ........................2 Panel ............................3 Installation Instructions ..................6 Specification ......................8 Transmitter ..........................8 Receiver ............................ 9 Warranty ......................11 www.avaccess.com... -
Page 5: Overview
Overview Overview 4KEX100-L is a 100m low-cost 4K Full HDBase-T Extender with PoE and offers the distribution of uncompressed 4K@60Hz UHD video, HD audio, Ethernet, power, RS232, and two-way IR up to 100m/330ft along a single CatX cable. It features the transmission of uncompressed 4K@60Hz UHD video, HDCP 2.2 compatibility, power, Ethernet, bi-directional RS232 and IR... -
Page 6: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x 4KEX100-L TX 1 x 4KEX100-L RX 1 x Power Supply (DC 18V 1A) 1 x IR Emitter 1 x Wide-band IR Receiver (30KHz~50KHz) ... -
Page 7: Panel

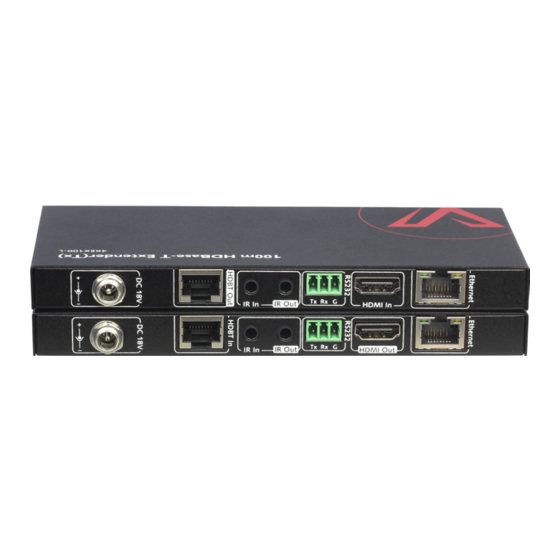

Overview Panel Transmitter Front Panel ID Name Description ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. ON: Transmitter and Receiver are linked. Blinking: Connection exception Link LED OFF: No link Rear Panel Name Description Connects to a power supply Power If transmitter is connected to power, receiver is... - Page 8 Overview Name Description Connects to IR emitter IR OUT Connects to a device with RS232 port RS232 Connects to HDMI source HDMI IN Connects to a device with Ethernet port Ethernet Receiver Front Panel ID Name Description ON: The receiver is powered on. Power LED OFF: The receiver is powered off.
- Page 9 Overview Rear Panel Name Description Connects to a power supply Power If transmitter is connected to power, receiver is adapter free HDBT IN Connects to HDBT OUT port of HDBT transmitter Connects to IR receiver IR IN Connects to IR emitter IR OUT Connects to a device with RS232 port RS232...
-
Page 10: Installation Instructions
Installation Instructions Installation Instructions Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to HDMI IN of the Transmitter. Connect a good quality CatX cable between the HDBT OUT of the Transmitter and the HDBT IN input of the Receiver. - Page 11 Installation Instructions www.avaccess.com...
-
Page 12: Specification
Specification Specification Transmitter Video Input 1 x HDMI IN HDMI: HDMI1.4 with 4K@60Hz 4:2:0 8bit, Input Signal Type HDCP 2.2 Input Video Level 0.5~1.0 Vp-p Maximum Pixel Clock 297MHz Output 1 x HDBT OUT Output Signal Type HDBase-T 4096 x 2160@60/50/30/25/24Hz, Input/Output 3840 x 2160@60/50/30/25/24Hz, Resolution Support... -
Page 13: Receiver
Specification Humidity 10% to 90%, non-condensing Power Supply DC 18V 1A Power Consumption 11W (Pair) Human-body Model: ESD Protection ±8kV(Air-gap discharge)/ ±4kV(Contact discharge) Device Dimensions 162mm x 15mm x 74.2mm/ (W x H x D) 6.38" x 0.59" x 2.92" Product Weight 0.25kg Certification... - Page 14 Specification Audio Stereo, LPCM 5.1, LPCM 7.1; Dolby True HD, Supported Formats DTS-HD Master Audio Control Control Method 1 x IR TX, 1 x IR RX, 1 x RS232, 1x Ethernet General Operating Temperature 0°C to 45°C (32°F to 113 °F) Storage Temperature -20°C to70°C (-4°F to 158 °F) Humidity...
-
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.3...
