- Page 1 4KEX70-ARC-H2 4K@60 4:4:4 HDR HDBaseT Extender with ARC User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another confined space.
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ............................2 Features ............................2 Package Contents ........................3 Panel ............................... 4 Transmitter ......................... 4 Receiver ..........................5 Installation and Application ................... 8 Brackets Installation ........................8 ... -
Page 6: Introduction

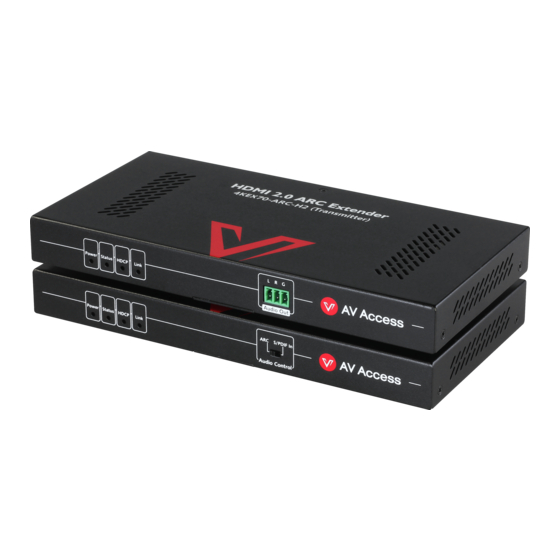

Introduction Introduction Overview 4KEX70-ARC-H2 is an HDBaseT Extender. It supports 4K@60 4:4:4 with HDR and HDCP 2.2 compliant, offers the distribution of uncompressed UHD video, audio, power, and IR together up to 40m/131ft over a single Cat X cable. With a feature set including transmission of uncompressed 4K@60Hz UHD video, HDCP 2.2 compatibility, Dolby and DTS HD audio, bi-directional IR control, it... -
Page 7: Package Contents
Introduction (4K@60Hz YUV 4:4:4) via a single Cat 6a/7 cable. Visual Lossless Compression enables 4K@60 HDR extension over HDBaseT. Receiver to transmitter audio return via ARC or digital coax pathway. HDMI audio de-embedding with phoenix analog connector. ... -
Page 8: Panel
Introduction Panel Transmitter Front Panel Name Description ON: The transmitter is powered on. POWER LED OFF: The transmitter is powered off. Flashing Slowly: STATUS LED The transmitter is working properly. OFF: The transmitter is not working properly. ON: HDCP video is being transmitted. Flashing Quickly: Non-HDCP video is being HDCP LED transmitted. -
Page 9: Receiver
Introduction Rear Panel Name Description DC 12V Connect to the power supply provided. Connect to HDBT IN port of receiver HDBT Out Connect to IR receiver IR In Connect to IR emitter IR Out Connect to control system for RS232 Passing RS232 Trough HDMI In... - Page 10 Introduction Name Description Flashing Slowly: Status LED The receiver is working properly. OFF: The receiver is not working properly. ON: HDCP video is being transmitted. Flashing Quickly: Non-HDCP video is being HDCP LED transmitted. OFF: No HDMI signal. ON: HDBT link is normal Link LED OFF: No HDBT Link ...
- Page 11 Introduction Name Description Connect to control system for RS232 Passing Trough RS232 HDMI Out Connect to an HDMI display S/PDIF In Connect to audio system on S/PDIF IN mode www.avaccess.com services@avaccess.com...
-
Page 12: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure the device is disconnected from the power source. Steps to install the device in a suitable location: Remove the four screws that secure the side panels to the transmitter. Position and install the mounting brackets with the four mounting screws provided. -
Page 13: Ir Cable Operation
Installation and Application IR Cable Operation Cable Type IR Emitter: Connect to the "IR Out" port of the device. Broadband IR Receiver (30-50 KHz): connect to the "IR In" port of the device. Using the IR Emitter Insert the IR emitter plug into the “IR Out” jack located on the transmitter or receiver. - Page 14 Installation and Application IR Signal Emission Controlled Device IR Emitter IR Receiver Example 3: When connected to control system, ensure the IR emitter is over against the IR receiver's front side instead of its flat side (see below picture): Please refer to your device's user guide to find out where the IR receiver is on your connected device.
- Page 15 Installation and Application IR Receiver TIVO BOLT Note: Products from AV Access do not support Bluetooth control, the introduction above applies to device with IR control capability only. Here is a list about different devices' control method. Device Control Method...
-
Page 16: Typical Application
Installation and Application Typical Application Blu-ray Player Power Supply Remote Insert IR Receiver into the IR IN port of N579 AV Receiver or connect IR Emitters to the IR OUT port of Connect an N579 Connect the included AV Receiver Connect the audio 12V power supply to to HDMI IN... -
Page 17: Audio Dip Switch Control
Audio DIP Switch Control Audio DIP Switch Control The Extender features an Audio DIP Switch that can be used to control audio output. ARC Mode Note: When you want to configure ARC channel feed by TV: Ensure AV System and TV support ARC function and CEC should be open. ... - Page 18 Audio DIP Switch Control Speaker AV Receiver Power Supply Power Supply HDMI Audio Return De-embedded audio output from HDMI IN Transmitter Cat X Switch to ARC Mode Receiver HDMI Audio Return Display Built-in Tuner Audio Device DVD Player Figure 1 Audio Control switch to ARC Mode Figure 1 www.avaccess.com...
- Page 19 Operate with RS232 Power Supply Remote Blu-ray Player AV Receiver HDMI IN Power Supply De-embedded audio IR Emitter S/PDIF Out output from HDMI IN IR Receiver 1 Transmitter Cat X Switch to S/PDIF In Mode Receiver HDMI OUT IR Receiver 2 IR Emitter S/PDIF In AV System...
-
Page 20: Operate With Rs232
Operate with RS232 Operate with RS232 RS232 Pinout The following figure shows the RS232 pinout. Please connect with Phoenix Connectors provided. TXD RXD RS232 Port Connected RS232 Device Pins TX GND RS232 Pass Through According to the bi-direction RS232 pass through function, you can use two RS232 control systems for serial communication by connecting to the devices via serial cables in order to control the source device or the display. - Page 21 Operate with RS232 Contro l Syste m RS232 Cable Transmitter Cat X Receiver RS232 Cable Contro l Syste m www.avaccess.com services@avaccess.com...
-
Page 22: Specification
Specification Specification Technical Input 1 x HDMI, 1 x HDBT Input Signal Type HDMI with HDCP 2.2 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 , 1366x768 1440x900 1600x900 1600x1200 1680x1050 1920x1080 1920x1200 Input/Output Resolution 2,3,5,6,8 2,3,5,6,8 3840x2160 , 4096x2160... -
Page 23: Transmission Distance
Supported Video Input/Output: 15m/49ft 1080p@60Hz HDMI Input/Output: 10m/33ft 4K@30Hz 4:4:4 Input/Output: 5m/16ft 4K@60Hz 4:4:4 35m/115ft 4K@60Hz 4:4:4 Cat 5e/6 60m/197ft 1080P@60Hz 40m/131ft 4K@60Hz 4:4:4 Cat 6a/7 70m/197ft 1080P@60Hz Note: AV Access recommends the use of T568B straight-through category cables. www.avaccess.com services@avaccess.com... -
Page 24: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Ensure all devices are powered on (source, extender and display devices). Indicator: Ensure LED indicators of the 4KEX70 extender are normal according to user manual. Devices: Ensure picture can be shown normally when connecting source to display device directly. - Page 25 Trouble Shooting transmitter to receiver is normal. Try a better HDMI cable or Ethernet cable. How can I fix the IR signal if it is weak or not working? Make sure the IR cables are correctly installed according to the diagrams in IR Pass Through section above.
-
Page 26: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 28 AV Access Technology Limited V1.0.1...
