- Page 1 U2EX50 USB2.0 Extender 50m TX/RX User Manual...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 3: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 4: Table Of Contents
Table of Contents Overview ....................... 1 Package Contents ........................2 Panel ............................3 Installation Instructions ..................7 Specification ......................9 Warranty ......................11... -
Page 5: Overview

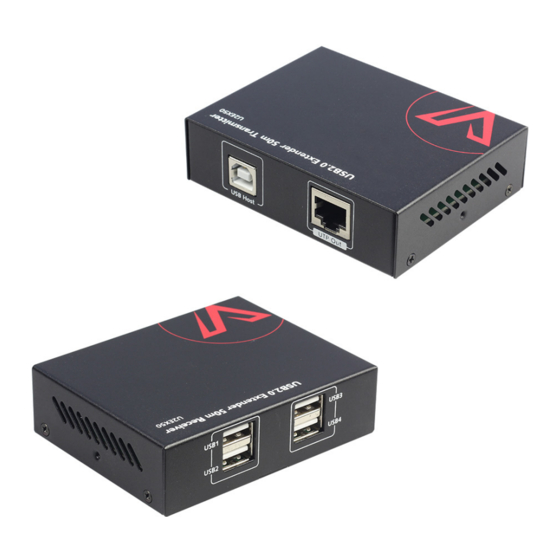

Overview Overview The U2EX50 USB 2.0 extender is a slim transmitter (TX) receiver (RX) pair that can extend a USB signal up to 50m via CatX cable. The built-in USB HUB in the RX supports up to 4 USB 2.0 ports. The TX can be powered by the host such as a PC. -
Page 6: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x U2EX50(TX) 1 x U2EX50(RX) 1 x Power Adapter (12V 0.5A) 1 x USB-A to USB-B Cable 2 x Mounting Brackets (Pair) ... -
Page 7: Panel
Overview Panel Transmitter Front Panel No. Name Description Blinking: The device is working properly. Status LED OFF: The device is not working properly. ON: The device is powered on. Power LED OFF: The device is powered off. www.avaccess.com... - Page 8 Overview Rear Panel Name Description USB Host Connects the PC with USB-A to USB-B cable Connects TX and RX with a CatX cable UTP Out www.avaccess.com...
- Page 9 Overview Receiver Front Panel No. Name Description 12V DC power input DC 12V ON: The device is powered on. Power LED OFF: The device is powered off. Blinking: The device is working properly. Status LED OFF: The device is not working properly. Connects TX and RX with a CatX cable UTP In www.avaccess.com...
- Page 10 Overview Rear Panel Name Description Connects to USB device such as keyboard, USB 1~4 mouse, MIC, camera www.avaccess.com...
-
Page 11: Installation Instructions
Installation Instructions Installation Instructions During installation, connect or disconnect the cables gently. Video conference system: www.avaccess.com... - Page 12 Installation Instructions Personal entertainment system: www.avaccess.com...
- Page 13 Installation Instructions Personal or public surveillance system: Under this situation, two USB cameras is prior recommended. If you want to use more cameras simultaneously, it depends on your PC's USB ability, as we know, because of the USB authentication time limit, more USB cameras will not work properly.
-
Page 14: Specification
Specification Specification Technical TX: 1 x USB Type-B 1 x UTP Out I/O Connections RX:1 x UTP IN 1 x DC 12V IN 4 x USB2.0 General Power Supply DC 12V 0.5A power adapter Power Consumption 4.5W Bandwidth USB 2.0 up to 480Mbps Operating 32°F to 113°F (0°C to 45°C) Temperature... -
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.6...
