Midea commecial and VRF with KNX, Serial and IP support
Inside the Package

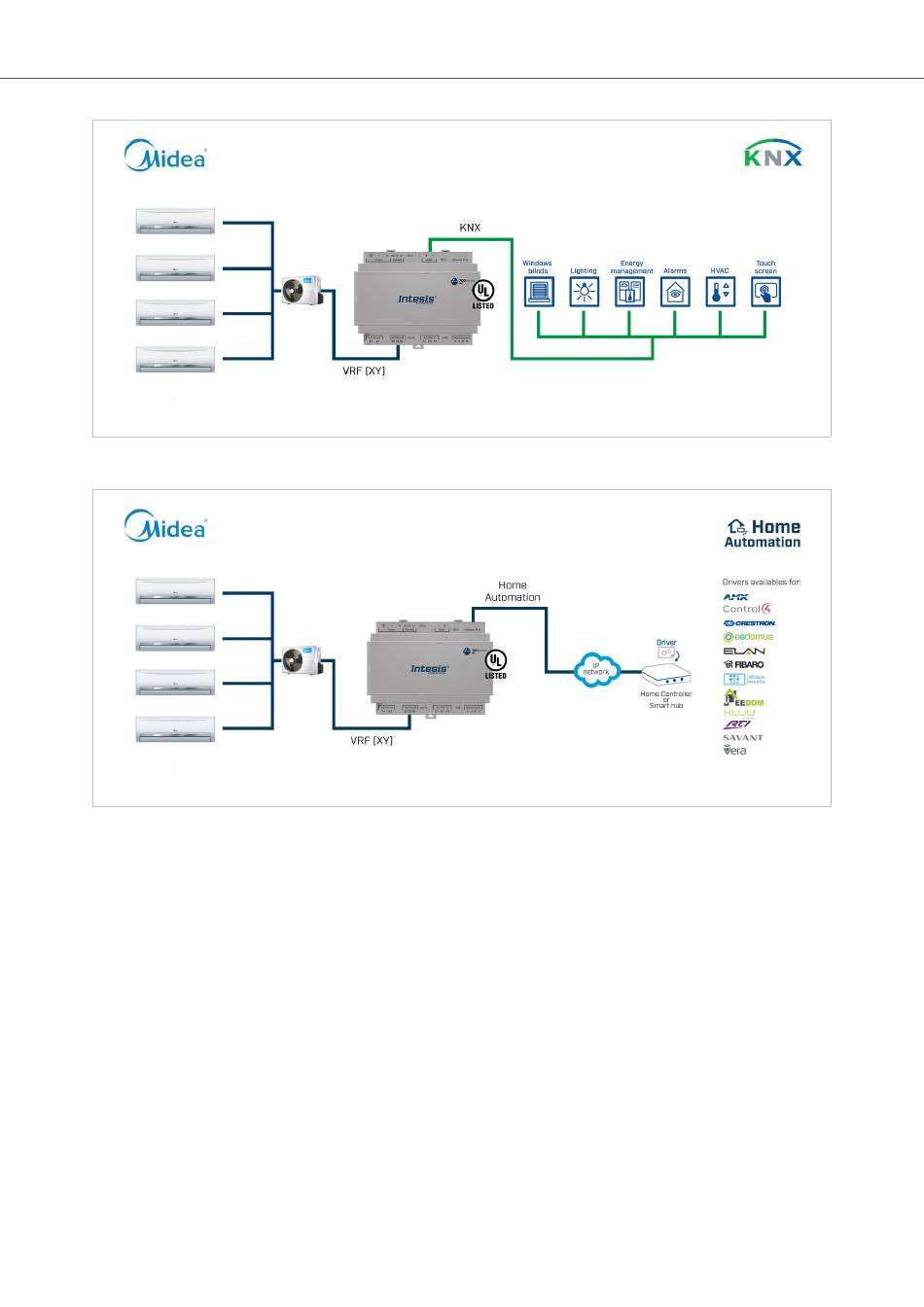

Figure 3. Integration of Midea AC systems into KNX installations
Figure 4. Integration of Midea AC systems into Home Automation installations
4.1. Inside the Package
Items included:
• Intesis IN770AIR00xO000 gateway
• USB Mini-B type to USB A type cable
• Installation sheet
4.2. Gateway Main Features
• Several applications available: Configurable for BACnet/IP and MS/TP, Modbus TCP and RTU, KNX, and Home
Automation communication protocols.
• Late configuration: Change between applications easily.
• Scan function: Find the devices connected to the air conditioning bus.
• Specific signals to monitor outdoor units.
• 2 x DIP switches for the EIA-485 connector termination and polarization configuration.
• 14 LEDs indicate the operating status for both the gateway and the communication bus.
Page 6 of 34
USER MANUAL Version 1.0.1
