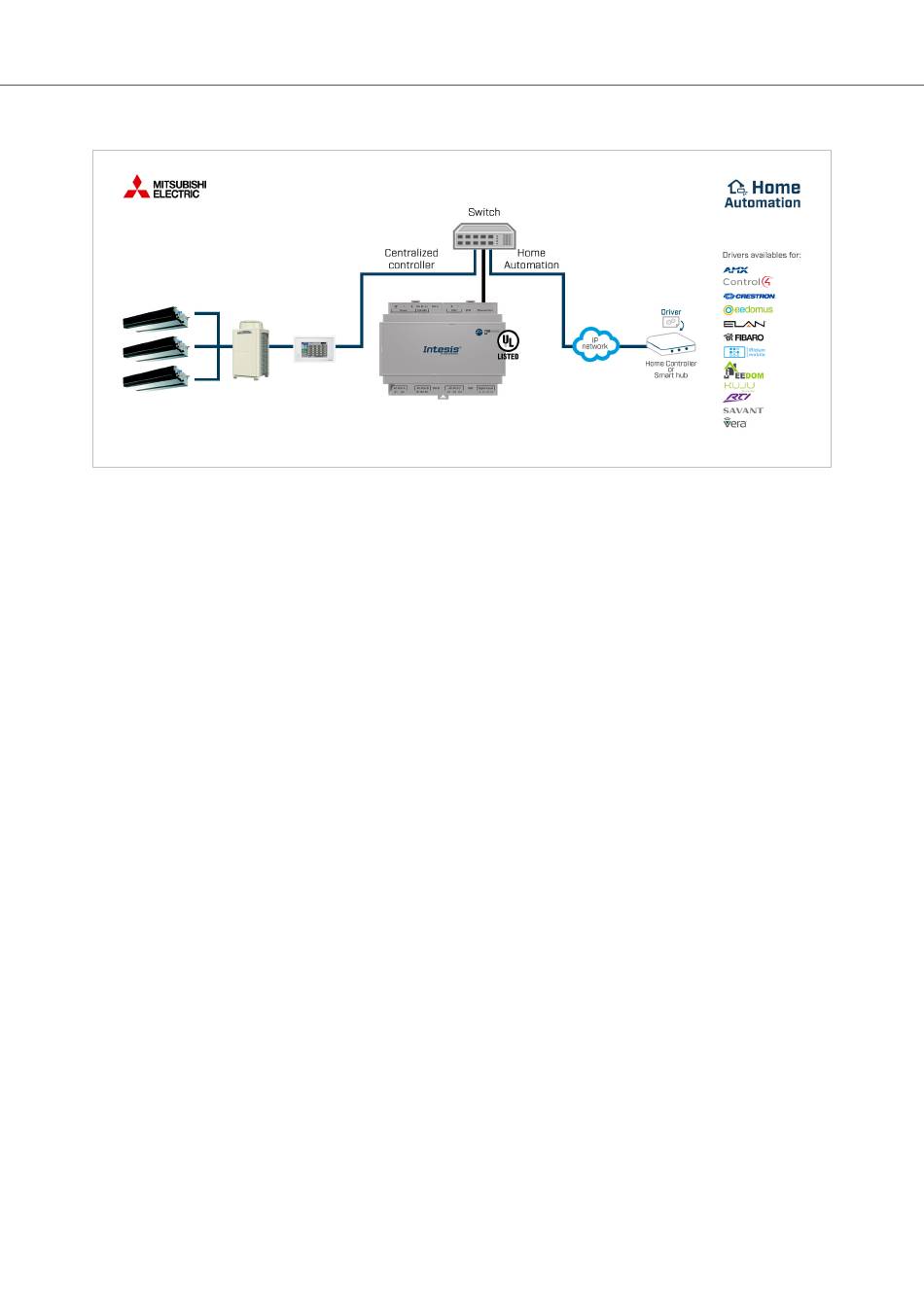

Figure 3. Integration of Mitsubishi Electric AC systems into Home Automation installations

4.1. Inside the Package

Items included:
• Intesis IN770MIT00xO040 Gateway
• USB Mini-B type to USB Type-A cable
• Installation Sheet

4.2. Main Features

• Several applications available: Configurable for Modbus TCP and RTU, KNX, and Home Automation
communication protocols.
• Late configuration: Change between applications easily.
• Scan function: Find the devices connected to the air conditioning bus.
• Specific signals to monitor outdoor units.
• 2 x DIP switches for the EIA-485 connector termination and polarization configuration.
• 14 LEDs indicate the operating status for both the gateway and the communication bus.
• DIN rail and wall mounting case.
• Accredited with the main certifications for electronic equipment.
• Multiple ports for serial and TCP/IP communication:
– Green pluggable terminal block for EIA-485 (3 poles)
– Orange pluggable terminal block for KNX (2 poles)
– Ethernet
– Green pluggable terminal block for binary inputs (4 poles)
– USB Mini-B type 2.0 port for connection to the PC
– Green pluggable terminal block for AC connection (2 poles)
– Green pluggable terminal block for AC connection (3 poles)
– Green pluggable terminal block for AC connection (3 poles)
