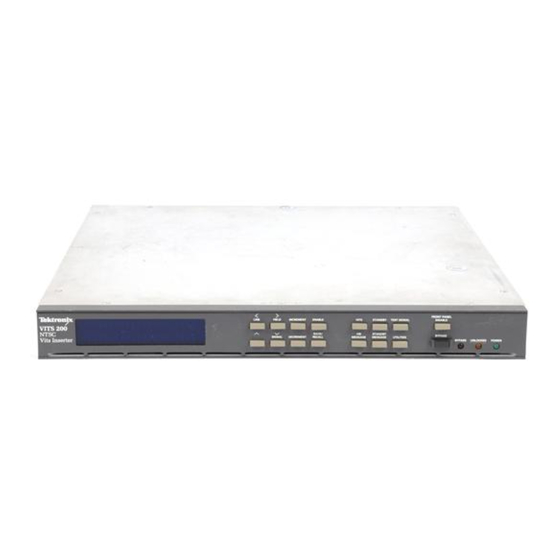

Tektronix VITS 200 Instruction Manual
  1. Manuals
  2. Brands
  3. Tektronix Manuals
  4. Portable Generator
  5. VITS 200
  6. Instruction manual
Tektronix VITS 200 Instruction Manual

Tektronix VITS 200 Instruction Manual

Ntsc vits inserter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
A l l t e s t I n s t r u me n t s , I n c .
5 0 0 C e n t r a l A v e .
F a r mi n g d a l e , N J 0 7 7 2 7
P : ( 7 3 2 ) 9 1 9 - 3 3 3 9
F : ( 7 3 2 ) 9 1 9 - 3 3 3 2
a l l t e s t . n e t
s s a l e s @ a l l t e s t . n e t
T h e t e s t & me a s u r e me n t
e q u i p me n t y o u n e e d a t
t h e p r i c e y o u w a n t .
A l l t e s t c a r r i e s t h e w o r l d ' s l a r g e s t s e l e c t i o n o f
u s e d / r e f u r b i s h e d b e n c h t o p t e s t & me a s u r e me n t
e q u i p me n t a t 5 0 % t h e p r i c e o f n e w .
O O u r e q u i p me n t i s g u a r a n t e e d w o r k i n g , w a r r a n t i e d , a n d
a v a i l a b l e w i t h c e r t i f i e d c a l i b r a t i o n f r o m o u r i n - h o u s e s t a f f
o f t e c h n i c i a n s a n d e n g i n e e r s .
• 1 0 + f u l l t i me t e c h n i c i a n s w i t h o v e r 1 5 0 y e a r s o f
s p e c i a l i z a t i o n
• 9 0 d a y w a r r a n t y & 5 d a y r i g h t o f r e t u r n o n a l l
e q u i p me n t
• • 1 - 3 y e a r w a r r a n t i e s f o r n e w a n d
p r e mi u m- r e f u r b i s h e d e q u i p me n t
• E v e r y u n i t t e s t e d t o O E M s p e c i f i c a t i o n s
• S a t i s f a c t i o n g u a r a n t e e d
Y o u h a v e p l a n s , w e w i l l h e l p y o u a c h i e v e t h e m.
A n y p r o j e c t . A n y b u d g e t .
t
G e t a q u o t e t o d a y !
C C a l l ( 7 3 2 ) 9 1 9 - 3 3 3 9 o r e ma i l s a l e s @a l l t e s t . n e t .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VITS 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Tektronix VITS 200

Summary of Contents for Tektronix VITS 200

  • Page 1 T h e t e s t & me a s u r e me n t e q u i p me n t y o u n e e d a t t h e p r i c e y o u w a n t . A l l t e s t I n s t r u me n t s , I n c .
  • Page 2 Instruction Manual VITS 200 NTSC VITS Inserter 070-8332-04 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so. Refer to all safety summaries prior to...
  • Page 3 Copyright © Tektronix, Inc. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. Printed in the U.S.A.
  • Page 4 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.
  • Page 6 For product support outside of North America, contact your local Tektronix distributor or sales office. Service Contact your local Tektronix distributor or sales office. Or visit Support our web site for a listing of worldwide service locations. www.tektronix.com For other...

  • Page 8: Table Of Contents

    ........6–1 VITS 200...
  • Page 9 ..... . 2–21 Figure 2–5: Controlling the VITS 200 with a VM700A... .
  • Page 10 ... . 1–7 Table 2–1: Character List for the VITS 200 ....
  • Page 11 Table 2–8: SCPI Commands (4.1.1 and 4.2.1) ....2–32 Table 2–9: Defined RS-232 Commands for use with the VITS 200 2–33 Table 2–10: RS-232 Mnemonics .

  • Page 12: General Safety Summary

    Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. VITS 200...
  • Page 13 CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: Double Protective Ground CAUTION WARNING Not suitable for Insulated (Earth) Terminal Refer to Manual High Voltage connection to the public telecom- munications network VITS 200...

  • Page 14: Service Safety Summary

    Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. VITS 200...
  • Page 15 Service Safety Summary viii VITS 200...
  • Page 16 Getting Started...

  • Page 18: Product Description

    Getting Started Product Description The TEKTRONIX VITS 200 NTSC VITS INSERTER is a high quality signal generator designed for VITS and data insertion into the program signal. It provides three different modes of standby operation in the event of program line failure.
  • Page 19 23 or on lines 17 through 30. VITS can be programmed on even and odd fields or in a four-field sequence. The VITS 200 may be genlocked to either the Program signal or the EXTERNAL 1 input. If you like, you can program the same signal or external input to be inserted on more than one line.
  • Page 20 As many as 15 one-line text messages can be programmed into memory. Any one of these messages may be inserted on lines 10 through 16, or the VITS 200 can be programmed to scroll through any consecutive series of these 15 messages.

  • Page 21: Installation

    Remote Control Remote control of many of the VITS 200 functions is available through the rear-panel REMOTE CONTROL connector, a 25-pin ground closure system, and through the RS-232 connector. Both provide manual switching between Bypass...

  • Page 22: Getting Started

    Pins 1–2: Clamp timing derived from External 1 Input. Pins 1–2 < 1 > Pins 2–3: Clamp timing derived from VITS 200 Genlock (locked to Program Video or free-running). External 2 Clamp Mode Pins 1–2: Clamp timing derived from External 2 Input.
  • Page 23 Pins 2–3: Not used (VITS 100 ONLY) V Sync Pins 1–2: Normal operation Pins 1–2 Pins 2–3: Not used (VITS 100 ONLY) Blanking Pins 1–2: Normal operation Pins 1–2 Pins 2–3: Not used (VITS 100 ONLY) B020249 and above. 1–6 VITS 200...
  • Page 24 Mechanical Installation The VITS 200 is shipped with hardware for rackmounting. The instrument fits in a standard 19-inch rack. Spacing between the front rails of the rack must be at least 17–3/4 inches to allow clearance for the slide-out tracks.
  • Page 25 Getting Started MIL STD 189 “UNIVERSAL” SPACING SPACING EIA RS310, RETMA 1.250” 0.500” (left front) 0.625” VITS 200 NTSC VITS INSERTER 0.625” 1.734” Figure 1–1: Rail Detail for Mounting Slide Tracks 1–8 VITS 200...
  • Page 26 Right-hand and left-hand stationary section is designated by the RH and the LH marked on the rails. Stop latch holes should be towards the bottom when slides are in place. (The right-hand rail is shown above.) Figure 1–2: Assembly of Rack Mounting Hardware 1–9 VITS 200...
  • Page 27 Getting Started BAR NUT (Use if the front rail is not tapped) Figure 1–3: Mounting Stationary Track Sections (Front Rail Mount) BAR NUT SCREWS REAR RACK RAIL Figure 1–4: Mounting Stationary Track Sections (Deep Rack Mount) 1–10 VITS 200...
  • Page 28 Retighten the screws and check the tracks for smooth operation by sliding the instrument in and out of the rack several times. Once the instrument is in place within the rack, tighten the knurled retaining screw to fasten it securely into the rack. 1–11 VITS 200...
  • Page 29 2. Press stop latches and remove instrument. Figure 1–6: Racking and Unracking the VITS 200 Rack Slide Maintenance The slide-out tracks do not require lubrication. The dark gray finish on the tracks is a permanent, lubricated coating.
  • Page 30 To initialize the test signal set, follow these steps: (B020249 and above) 1. Hold the TEST SIGNAL button in while turning the VITS 200 on. 2. Continue to hold the TEST SIGNAL button in until the front panel display says Select Signal Set. The second line of the display will show the currently-selected signal set.
  • Page 31 Getting Started 1–14 VITS 200...
  • Page 32 Operating Basics...

  • Page 34: Operating Basics

    Front Panel The VITS 200 front panel (see Fig. 2–1) is divided into four main areas: the Control area, which includes the manual BYPASS button, the FRONT PANEL DISABLE button, and the three indicator lights;...

  • Page 35: Front Panel

    (this takes approximately 2 seconds). BYPASS This is the manual bypass control. Pressing this button puts the VITS 200 into Relay Bypass mode; the PROGRAM INPUT is applied directly to the PRO- GRAM OUTPUT, through a delay line which matches the program channel through the instrument in normal operation.
  • Page 36 Source function in the UTILITIES menu. POWER Indicator The POWER LED lights to indicate that the VITS 200 is turned on and has power applied. When the instrument is switched on, the LED does not light until after the power supply has completed its startup process (approximately one second).
  • Page 37 VITS assignments, VBI message selections, Standby mode signal selections, standby message, full-field test signal selec- tions, and to access the utilities routines. Fig. 2–2 gives a summary of front-pa- nel operation. VITS STANDBY TEST SIGNAL STANDBY MESSAGE MESSAGE UTILITIES 2–4 VITS 200...

  • Page 38: Figure 2-2: Vits 200 Menu Structure

    Operating Basics Figure 2–2: VITS 200 Menu Structure 2–5 VITS 200...
  • Page 39 Select VITS On Fields function of the UTILITIES menu. Pressing the SIGNAL button will move the cursor to the bottom line of the display, in the Signal area: VITS LINE 10 FLD 1 SIGNAL PASS 2–6 VITS 200...
  • Page 40 The delay between program signal failure and the switch to Standby mode may be set by the user to be between 0 and 99 seconds. See the Standby Delay in Seconds topic in the UTILITY menu discussion for details. 2–7 VITS 200...
  • Page 41 The behavior of this output when program video fails depends on how the VITS 200 is programmed to respond for Standby operation: H If the VITS 200 Standby mode is disabled, the TEST SIGNAL output will continue to provide the selected test signal, and the TEST SIGNAL menu will continue to operate.
  • Page 42 Operating Basics H If the VITS 200 is programmed to provide a test signal for Standby mode operation, the TEST SIGNAL OUTPUT will switch to that standby signal, identical to PROGRAM OUT. H If the VITS 200 is programmed to switch to one of the EXTERNAL inputs for the standby signal, the TEST SIGNAL output will switch to 0% Black.
  • Page 43 If that VBI message number is enabled, the output will change as the characters change on the display. See Table 2–1 for a list of the available characters. Table 2–1: Character List for the VITS 200 Display Decimal...
  • Page 44 If the VBI messages are enabled, the last message selected will be output in the vertical interval. You may also set the VITS 200 to scroll through a number of the VBI messages, using the Scroll VBI MSGS function under the UTILITY menu. If the Vertical Interval messages are disabled there will be no character in the vertical interval.
  • Page 45 The functions available in the UTILITIES menu are: H Select Standby Message 1 H Save Current Setup to Preset 1 H Recall Preset 1 H Standby Delay in Seconds 0 2–12 VITS 200...
  • Page 46 The INCREMENT and DECREMENT buttons then toggle between preset numbers 1 and 2. Once the desired number is displayed, press the SAVE/ RECALL button to recall the preset. 2–13 VITS 200...
  • Page 47 Press the SAVE/RECALL button to reset the VITS. Restore Factory Settings – This function returns the entire VITS 200, except presets, to the factory defaults for VITS selections, VBI messages, standby messages, EXT coupling, LINE mode, FIELD mode, alternate genlock, and regenerated sync selections.
  • Page 48 AC and DC. Pressing SAVE/RECALL stores the selection. Regenerate Sync and Burst OFF – The VITS 200 can insert sync and burst into the program video. This utility turns that capability on and off. Press the < or >...
  • Page 49 24 through 30 in cable mode. Reinit NVRAM OFF – This function selects the Nonvolatile RAM initialization sequence. NOTE. This selection clears the NVRAM, and returns the VITS 200 to the factory selections and programming. ALL USER MADE SELECTIONS AND PRO- GRAMMING WILL BE LOST.

  • Page 50: Remote Control

    Pins 13, 25 REMOTE ENABLE – When pin 13 is first grounded, the Remote Control unit is enabled and the VITS 200 front panel is locked out. The Remote Control must be enabled to use any control pins: the TEST SIGNAL selection pins and the ENABLE and SELECT pins for the standby and VBI messages.
  • Page 51 Pins 22, 23 BYPASS – The BYPASS LED and BYPASS SWITCH pins work just like the BYPASS push button and indicator on the VITS 200. The BYPASS LEDs work in parallel. Both of them will light whenever the VITS 200 is in the Bypass mode of operation.
  • Page 52 Pin 10 UNLOCKED LED – This pin drives an LED, which works just like the one on the VITS 200 front panel. It lights to indicate that the VITS 200 can not acquire or maintain genlock. This indicator works whether the Remote Control is enabled or not.

  • Page 53: Video Clapboard

    14 as the LSB and pin 3 as the MSB. See Table 2–5 for details. As with the STANDBY MESSAGE, the only indication on the Remote Control or the VITS 200 of which message has been selected is by the switch positions.

  • Page 54: Figure 2-4: Video Clapboard Connections

    2. Press the VBI Message button, select VERT MSG 2 and ENABLE it. NOTE. Any of the vertical interval messages may be used. Message two is used here by grounding pin 2 of the VITS 200 remote connector. To use another message, ground the appropriate selection pins for it (see Table 2–5).

  • Page 55: Rs-232 Control

    Operating Basics RS-232 Control The VITS 200 may be controlled through a 3-wire RS-232 interface, or by any device that can generate or transmit commands in ASCII characters. Using XON and XOFF makes it possible to control the VITS 200 directly from an ASCII terminal, personal computer (PC), or a VM700A (See Figure 2–5).
  • Page 56 RS-232 control will permit the operator to learn the current settings of the VITS 200 and change them from the terminal. New settings may be specified by name (e.g. “LINE”) or value (e.g. “15”), eliminating the need to scroll through a list of choices as with the front panel controls or with the ground-closure remote.
  • Page 57 For best results, follow these guidelines when sending text to the VITS 200: H Send one line at a time; wait for a carriage return between lines. (The VITS 200 will send a carriage return to signal that it has executed a command only if it is in TERM mode.) 2–24...
  • Page 58 VBI and Standby message text strings must be enclosed in double quotes. H Compound headers (such as :VITS:LMOD) are limited to those predefined for the VITS 200. H A line can contain several commands, if they are separated by a semicolon (:COMMAND parameter1;:COMMAND parameter2;...), but no line may exceed 128 characters.
  • Page 59 :BYPASS ON is the RS-232 equivalent of pushing the front panel BYPASS button in, and OFF is the equivalent of releasing it. A query will return the current state of the VITS 200 mode, but will not distinguish the reason it’s in that mode.
  • Page 60 This is the first step of reinitializing the NVRAM to the factory settings. When this is ENAbled, a *RST command will reset ALL of the VITS 200 settings to the factory defaults. When REINitnvram is set to DISable, an RST command will have no effect.
  • Page 61 Operating Basics ON forces the VITS 200 into Standby mode, even if locked to program video. OFF is the default setting. :StandbyMES Parameters: ENA or DIS Enables or disables the Standby Message function. Query returns the current status. :StandbyMES:ADD Parameters: “TXT”...
  • Page 62 This query will return a message reporting any existing error condition in the VITS 200. :SYSTem:VERSion? Parameters: None, query only This query will return the SCPI version that the VITS 200 conforms to. :TestSIGnal Parameters: “Signal mnemonic” Selects the signal for the TEST SIGNAL output. Use the RS-232 mnemonic for the test signal name.
  • Page 63 OFF. Query returns the current ON or OFF state. :VerticalMES:SELect Parameters: Msg # This command selects a particular VBI message number for insertion. Query returns the current message number. :VITS? Parameters: None, query only 2–30 VITS 200...
  • Page 64 VITS assignment changes to take effect. :VITS:SIGNal Parameters: “Signal mnemonic” Specifies the signal for use as VITS on the current line and field. Use the RS-232 mnemonic for the test signal name. Query returns the current selection. 2–31 VITS 200...
  • Page 65 No Action Wait-to-continue command *IDN? Identification query No Parameters *RST Resets the VITS 200 to the factory defaults. Must have set No Parameters REINitnvram to ENAble for this to have any effect. :SYSTem :ERRor? :VERSion? Returns the SCPI version this instrument complies to. Query only.
  • Page 66 Operating Basics Table 2–9: Defined RS-232 Commands for use with the VITS 200 Parameter Command Header Purpose Example :HELP? :SoftwareVER? Returns the VITS 200 software version. Query only. No Parameters :VITS? Command/query. Query returns all of the following: :FieldMODe? [text] Selects/queries between 2 and 4 field mode of operation.
  • Page 67 Operating Basics Table 2–9: Defined RS-232 Commands for use with the VITS 200 (Cont.) Parameter Example Command Header Purpose :VerticalMES? [txt] ENAble or DISable VBI Messages, can also query status :MESSage [#],[txt] Programs specified VBI Message [1–15] text [1–23 characters] 11, “1–23 charac-...

  • Page 68: Rear Panel

    S/N B020510 and above. Rear Panel The VITS 200 rear panel, shown in Fig. 2–6, contains the line power socket, fuse, and power switch; the source ID selection switches, and assorted connec- tors. Fig. 2–6 is explained on the following page.
  • Page 69 If the program video fails, the VITS 200 switches to the user-selected Standby signal with, if selected, one of the three full page standby messages as the output. If the power to the VITS 200 fails, a relay bypass switches the program video directly to this connector.
  • Page 70 Specifications...

  • Page 72: Specifications

    Specifications This section lists the performance requirements for the VITS 200, along with pertinent supplemental information. Performance requirements may be verified with the performance check procedure in Section 5 of the manual. Items listed as Performance Requirements are quantitative, and are stated with tolerance limits.
  • Page 73 36 dB to 5 MHz Typically "2 Program to External Channel Timing Difference Signal to Noise Ratio >70 dB 84 dB AC Coupled, 87 dB DC Coupled, relative to reference on VM700A with an unweighted 5 MHz low pass filter. 3–2 VITS 200...
  • Page 74 9 cycles of subcarrier 600 ns "100 ns. Breezeway Duration 1.5 ms 100 ns Front Porch Duration 50% amplitude point 4.7 ms 100 ns Horizontal Sync Duration 50% amplitude point 2.3 ms 100 ns Equalizing Pulse Duration 50% amplitude point 3–3 VITS 200...
  • Page 75 250 ns "25 ns Rise Time Chrominance Amplitude 20.01 IRE "0.5 IRE 20 IRE 40.02 IRE "0.5 IRE 40 IRE 80 IRE 80.04 IRE" .5 IRE Phase 90 "0.5 Relative to Burst 400 ns "40 ns Rise Time 3–4 VITS 200...
  • Page 76 400 ns typical (sin2 shaped packets) 50% Gray 50 IRE Luminance with sync and burst See Figure 3–8 for timing information. Sin X/X See Figure 3–9 for timing information. Bandwidth 4.75 MHz Pedestal 24 IRE Peak 90 IRE Peak amplitude from pedestal 3–5 VITS 200...
  • Page 77 Opt 1J 103.4 "0.3 . Phase 400 ns "40 ns Rise Time BTA Ghost Canceller Reference (GCR) See Figure 3–14 for timing information. Amplitude 70 IRE Positive Peak 77.3 IRE Negative Peak –3.9 IRE Fall time 250 ns 3–6 VITS 200...
  • Page 78 500 kHz 140 ns typical (sin shaped packets) Other Packets 400 ns typical (sin shaped packets) Cable Sweep (S/N: B020510 & above) Pedestal Amplitude 50 IRE Sweep Amplitude 100 IRE Frequencies Start 0.1 MHz Stop 4.2 MHz 3–7 VITS 200...
  • Page 79 Specifications Figure 3–1: 0% Black Figure 3–2: 7.5% Black Figure 3–3: 10 MHz Sweep 3–8 VITS 200...
  • Page 80 Specifications Figure 3–4: NTC7 Combination Figure 3–5: FCC Composite Figure 3–6: NTC7 Composite 3–9 VITS 200...
  • Page 81 Specifications Figure 3–7: FCC Multiburst Figure 3–8: 50% Gray SIN X Figure 3–9: 3–10 VITS 200...
  • Page 82 Specifications Figure 3–10: FCC Color Bars Figure 3–11: Multipulse 3–11 VITS 200...
  • Page 83 Specifications Figure 3–12: VIRS Figure 3–13: Red Field Figure 3–14: BTA Ghost Canceller Reference 3–12 VITS 200...
  • Page 84 Specifications Figure 3–15: Phillips GCR Positive Figure 3–16: Phillips GCR Negative 3–13 VITS 200...
  • Page 85 Specifications –10 –40 4.7 ms 8.75 ms 11.5 ms 1.5 ms 61.9 ms Figure 3–17: Korean GCR Positive –10 –40 4.7 ms 8.75 ms 11.5 ms 1.5 ms 61.9 ms Figure 3–18: Korean GCR Negative 3–14 VITS 200...
  • Page 86 Specifications Figure 3–19: Cable Multiburst Figure 3–20: Cable Sweep 3–15 VITS 200...
  • Page 87 +5 V v5 mV line frequency ripple v50 mV switching ripple 5.2 V v10 mV line frequency ripple v10 mV switching ripple 12 V v5 mV line frequency ripple Line Input Range Regulates from 90 to 250 VAC. 3–16 VITS 200...
  • Page 88 Table 3–7: Physical Characteristics Characteristics Performance Requirements Supplemental Information Dimensions Height 1.734 inches (4.404 cm) Width 19.0 inches (48.3 cm) Length 18.4 inches (46.7 cm) Net Weight 9.5 lbs (4.3 kg) Shipping Weight 21.5 lbs (9.8 kg) 3–17 VITS 200...
  • Page 89 CAT II Local-level mains (wall sockets). Equipment at this level includes appliances, portable tools, and similar products. Equipment is usually cord-connected. CAT I Secondary (signal level) or battery operated circuits of electronic equipment. 3–18 VITS 200...
  • Page 90 Class 1 (as defined in IEC 1010-1, Annex H) – grounded product Overvoltage Category Overvoltage Category II (as defined in IEC 1010-1, Annex J) Pollution Degree Pollution Degree 2 (as defined in IEC 1010-1). Note: Rated for indoor use only. 3–19 VITS 200...
  • Page 91 Specifications 3–20 VITS 200...
  • Page 92 WARNING The following servicing instructions are for use only by qualified personnel. To avoid injury, do not perform any servicing other than that stated in the operating instructions unless you are qualified to do so. Refer to all Safety Summaries before performing any service.

  • Page 94: Theory Of Operation

    Theory of Operation...

  • Page 96: Test Signal Generation

    Theory of Operation The VITS 200 contains three boards: A1 Inserter, A2 Front Panel, and A3 Controller. The Front Panel board contains only momentary contact switches and a connector, and needs no further discussion. The Controller and Inserter boards interact quite intimately; therefore some of the circuit discussions will include parts of both boards.
  • Page 97 LINE” to determine when to generate a half line, and the seven MSBs of horizontal count to select the appropriate blocks of data. The 12-bit Tektronix DAC, A1U65 (schematic 7), turns the data into analog voltage levels at an 8 FSC rate. A one-volt reference is generated for the DAC by A1U84 (schematic 7) and associated parts.

  • Page 98: Genlock

    It then uses the digitized color subcarrier burst to determine the tangent of the phase angle between the system clock and the burst. This tangent is used to look up the arctangent (that is, the angle itself), which is stored in PROM A1U33 4–3 VITS 200...

  • Page 99: External Inputs

    External Inputs 1 & 2 <1>, External Inputs 3 & 4 <2>, Input <5>, and Clocks and Genlock Offset <6>. There are four external inputs to the VITS 200, each of which may be selected for any lines of the vertical blanking interval just like a VITS signal. As the four external inputs are identical, this discussion will focus on the EXTernal 1 input.

  • Page 100: Signal And Switching Control

    A3 Controller board and the A1 Inserter board. The controller (A3U23, schematic 3) stores VITS selections in RAM (A3U29, schematic 4) which is addressed by the system 4–5 VITS 200...
  • Page 101 A1U17 determines that VIRS AUTO has been requested and drives “[VIRSAMP]” active low. “VIRSPRES” from A1U71B returns to A1U17 and “CCVIRS” from A1U17 is sent to A1U14 (schematic 1) to control insertion. 4–6 VITS 200...

  • Page 102: Character And Source Id Generation

    The source-identification signal is one line of video with up to 16 pulses on it, which can be recognized by a TEKTRONIX VM700A. The VM700A expects a start and a stop bit, but the other 14 bits (pulses) can be used to identify up to 16,384 sources (214).
  • Page 103 A3U35 (schematic 4) performs several functions besides deriving “CHLOAD” from the Horizontal Counters. It also looks at the data coming out of the RAM to determine if a character is being called. If it is, “CHARPRES” is asserted 4–8 VITS 200...

  • Page 104: Front Panel, Remote Controls, And Controller

    (schematic 5) level shifts the RS-232 data to and from TTL levels for the controller. The controller has two RS-232 interfaces built into it. The third control method for the VITS 200 is a ground closure remote which can be connected to the rear-panel REMOTE CONTROL connector. A cable connects this to A3J12 on the Controller board (schematic 5), see Fig.
  • Page 105 Pin 16 is driven by an open collector transistor (A3Q40, schematic 7), and pulls down when the VITS 200 is in Standby mode. This is intended to be used as a trigger for other instruments with ground closure remotes, such as the TEKTRO- NIX ASG 100.
  • Page 106 24 is intended to drive an LED indicating when the ground closure remote has control of the VITS 200. Pin 25 is connected to the controller, and is pulled low by the remote to request control of the VITS 200.

  • Page 107: Power Supply Overview

    Theory of Operation the VITS 200 tries to lock to program input or EXTernal 1 input. This line switches the input to the genlock A/D (A1U43, schematic 5), the back porch signal to the A/D, and the comp sync to the genlock with A1U70 (schematic 3).

  • Page 108: Power Supply Detailed Description

    Width Modulator, so long as the input AC voltage is sufficient to maintain regulation. When the VITS 200 is first turned on, C113 charges through R154. When the charge across C113 reaches approximately 16V, Pulse Width Modulator U78 begins to switch Q16 on and off through the emitter drive circuitry (Q17, CR22, CR21, and associated circuitry).
  • Page 109 Jumper P18 is included for troubleshooting. Removing P18 will interrupt power to T1, which will allow inspection of U78 and the Q16 emitter drive circuits. Once U78 and Q16 have checked out, high voltage can be applied to T1. 4–14 VITS 200...
  • Page 110 Q16 ON Q16 OFF CURRENT IN PRIMARY CURRENT IN SECONDARIES VOLTAGE V IN ACROSS PRIMARY +5.6V VOLTAGE ACROSS +5V SECONDARY –V VOLTAGE ACROSS –5V SECONDARY –5.6V OUTPUT OUTPUT DIODES ON DIODES OFF Figure 4–2: Basic Operation of T1 4–15 VITS 200...
  • Page 111 60 Watts. As the supply goes into current limit, U76A and Q18 come into play. U78–1 is an indication of the peak current in T1. This voltage is fed to the inverting input 4–16 VITS 200...
  • Page 112 "12V is generated from "15V at the output of the transformer, T1. The "15V 12 Volts Generation <8> at C102 and C103 passes through RC filters and is applied to the three-terminal linear regulators (U73 and U85) to derive the "12V outputs. 4–17 VITS 200...
  • Page 113 A regulated "5V is used by the ADC (A1U43, schematic 5) and the DAC Regulated 5 Volts <9> (A1U59, schematic 6). These regulated supplies are generated from the "12V supplies, which are applied to three-terminal linear regulators (U52 and U53) to derive the "5V supplies. 4–18 VITS 200...

  • Page 114: Performance Verification

    Performance Verification...

  • Page 116: Recommended Equipment List

    220V operation must be checked, a conversion transformer or appropriate 220 volt autotransformer is needed. 2. NTSC Video Measurement Set For example: Tektronix VM 700A, Option 01 3. Multimeter Capable of measuring: 0–20 VDC, Accuracy 0.7% For example: Tektronix DM252 5–1...
  • Page 117 Accuracy: 0.25% Time Base: 5 msec/div to 2 msec/div, capable of dual time base and accepting external triggering For example: Tektronix 11403 with a 11A34 Vertical Amplifier 8. Oscilloscope 10X Probe For example: Tektronix P6137 9. NTSC Vectorscope and Waveform Monitor Capable of displaying line-rate and field-rate signals, bandwidth of 50 KHz to 6 MHz.

  • Page 118: Calibration Data Report

    Auxiliary Equipment 16. 75Ω Terminators Two – 0.025% end-line terminators One – feedthrough terminator For example: Tektronix End-line Terminator, Part No. 011–0102–01 Tektronix Feedthrough Terminator, Part No. 011–0103–00 17. BNC Coax Cables 75Ω low loss video cables For example: Tektronix Part No. 012–0159–02 18.
  • Page 119 Performance Verification Calibration Data Report Instrument VITS 200 Cal. Date_____________________ Serial Number___________________ Certificate Number ______________ Technician____________________ Procedure 070-8967-00 Revision Date______________________________ Characteristics Performance Requirement Step Incoming Outgoing Power Supply Characteristics Line Input Range Regulates from 90 V to 250 V Program Channel Unity "...

  • Page 120: Figure 3-2: 7.5% Black

    > 55 dB down 100% " 0.5% Pulse to Bar Ratio K Factor (K 0.3% "10 mV DC Offset 0 "5 SCH Phase Accuracy 140 ns "20 ns Luminance Rise Time 300 ns "35 ns Chrominance Rise Time 5–5 VITS 200...
  • Page 121 +6 dB to –12 dB v 10 ns for input sync amplitude Sync Lock Jitter range of 287 mV "3 dB Noise Performance Locks to 28 dB S/N Ratio Video Certificate number not provided, unless “Certificate of Traceability” is issued. 5–6 VITS 200...

  • Page 122: Verification Procedure

    Verification Procedure 1. Turn On a. Connect the VITS 200 AC power cord to the variable autotransformer. Set the variac for 120 volts. Set the mains Power switch for the variac to On. b. Turn the VITS 200 POWER ON.
  • Page 123 Store (1) Reference soft key. 6. Line Input Range REQUIREMENT — Stable operation over an AC input range of 90–250 V. a. CHECK – for stable instrument operation while varying the autotrans- former over the 90–250 V range. 5–8 VITS 200...
  • Page 124 INCREMENT to next line. xi. Repeat steps viii and ix for the remaining Externals. c. Connect a 75W cable from 1780R CH A to VITS 200 PROGRAM OUT (terminate CH A with precision 75W Terminator). d. Set the 1780R for DC level checks.
  • Page 125 ("3 mV match between traces, 1 minor div). n. Use Utilities to set Externals to DC coupling saving each. Select UTILITIES from VITS 200 Front Panel. ii. Use Decrement to select Coupling External 1. iii. Use an arrow button to move the cursor to AC.
  • Page 126 Connect 1410 Subcarrier to SUBC (Subcarrier out from the 1410 to the 1780R Ext CW Ref). b. Connect 1410 rear panel J1 Black Burst to SYNC (Black Burst out of the 1410 to the 1780R External Ref input). 5–11 VITS 200...
  • Page 127 Knob to 50%. Ensure the VITS 200 PROGRAM OUT is connected to the 1780R CH 1 Input. g. Set the 1780R for External CW Ref by holding down the REF button. h. Select Measure and Diff Phase from the 1780R.
  • Page 128 REQUIREMENT — Gain: Unity " 1%. Line Tilt: v 0.5%. a. Connect a cable from the VITS 200 MONITOR OUT to the VM700A Channel A input b. Connect the test signal generator output cable to the VITS 200 PROGRAM IN.
  • Page 129 Connect the NTC7 Composite signal from the TSG–170D to the VM700A CH A Input with a barrel connector. b. Select Measure. c. Select K FACTOR soft key (on screen). d. Note the PB Ratio on the VM700A screen. 5–14 VITS 200...
  • Page 130 OUT on the VITS 200. Connect the coax from the TSG–170D to the VITS 200 PROGRAM IN. g. CHECK – that the PB Ratio is within "0.5% of the above noted Ratio. h. Move the coax from PROGRAM OUT to MONITOR OUT.
  • Page 131 CH 1 of the 11A34. b. Verify that NTC7 Compos(ite) is selected as the VITS 200 Full Field Test Signal. c. Set the 11K oscilloscope: Enable CH 1 on the 11A34.
  • Page 132 Disconnect the output of the TSG–170D from the 1434 and then reconnect it to the VITS 200 External 1. b. Set VITS 200 STANDBY to Extern(al) 1. c. Select NTC7 Composite from the TSG–170D Other Signals. d. Select Relative to Ref Bar & Line Time on the VM700A. Select Measure.
  • Page 133 Select Measure. ii. Select NOISE SPECTRUM soft key (on screen). d. CHECK – that the Noise Level number is > 70 dB. 21. Repeat steps 17 through 20 for External Channels 2, 3, and 4. Test Signal Checks 5–18 VITS 200...
  • Page 134 Verify that the test signal generator is connected to the VITS 200. PROGRAM IN. c. Select NTC7 Composite as the VITS 200 Full Field Test Signal. d. Select Relative Bar Line Time on the VM700A. Select Measure. ii. Select Bar Line Time soft key.
  • Page 135 27. Signal-to-Noise Ratio REQUIREMENT — Test Signal: >78 dB. Black Burst: >70 dB. a. Select TEST SIGNAL on the VITS 200. b. Use DECREMENT to select 0% BLACK. c. Select Measure, Noise Spectrum soft key, Menu, and Relative to Ref soft key.
  • Page 136 IRE). c. CHECK – that Sync Duration is 4.7 ms "100 ns. d. CHECK – that Sync Rise Time is 140 ns "20 ns. e. CHECK – that Burst Delay from Sync is 5.3 ms "100 ns. 5–21 VITS 200...
  • Page 137 29. Luminance Rise Time REQUIREMENT — 140 ns "20 ns. a. Disconnect VM700A from Black Burst. Connect the VITS 200 TEST SIGNAL to 1780R Video A. b. Select NTC7 Composite as the VITS 200 test signal. c. On the 1780R: Set REF to INT.
  • Page 138 31. Front Porch Duration REQUIREMENT — 1.5 ms "100 ns. a. Set the VITS 200 TEST SIGNAL to 7.5% Black. b. Use variable gain to put sync tip and blanking 100 IRE apart (use the graticules). c. Set Time cursor 1 to 50 IRE.
  • Page 139 Ref. c. Connect the 1410 Switcher or Linearity module output to the 1434 VIDEO INPUT. d. Connect the 1434 VIDEO OUTPUT to the VITS 200 PROGRAM IN. e. Set the following 1434 Video Noise Generator controls: Control Setting CH A Impulse .
  • Page 140 VITS 200 TEST SIGNAL to the 1780R CH 1 Input. Select Test Signal on the VITS 200 then use Decrement to select Red Field as the Full Field Test Signal. Set the 1780R for External Ref + CW by holding in the REF button.
  • Page 141 CHECK – that the Red bar phase changes 4_ and that the VITS 200 maintains lock while changing the 1434 Attenuation from + 6 dB to – 6 dB (A ATTEN dB display from 00 to 12). d. Continue increasing the 1434 Attenuation to – 12 dB (A ATTEN dB display shows 18).
  • Page 142 1_ (10 IRE or by Readout). e. Change the 20 Hz offset polarity (+ to – or – to +). CHECK – after the genlock has settled, that the Red bar has shifted less than 1_ (10 IRE or by Readout). 5–27 VITS 200...
  • Page 143 “Fast” and “+” simultaneously together until the B ATTEN dB display shows 28. b. Turn White Noise ON in 1434 CH B Section. c. CHECK – that the VITS 200 remains locked. d. Turn White Noise OFF in 1434 CH B Section. e. Disconnect the 1434 from the VITS 200.
  • Page 144 VITS 200 to Bypass. CHECK – that the Marker Reference Level readout is w36 dBm down. u. Set the VITS 200 to Operate mode. v. Remove the precision high-frequency terminator from the VITS 200 PROGRAM OUT. w. Connect the Device Under Test connector on the RF Bridge to the VITS 200 PROGRAM OUT.
  • Page 145 Place the lid over the instrument but do not replace the screws. ac. Connect the Device Under Test connector on the RF Bridge to the VITS 200 TEST SIGNAL output. ad. CHECK – that the Marker Level readout is w36 dBm down.
  • Page 146 Connect a 75 W BNC cable to the min. loss pad, and the other end to the VITS 200 TEST SIGNAL output. d. Set the VITS 200 Standby to Red Field, Enable, and Save. e. Select Max. Hold on the spectrum analyzer. Set the spectrum analyzer Frequency Marker to the top of the chromi- nance spike of the red field.
  • Page 147 ....– Vertical Position ... as needed to view waveform Horizontal Mag... . 5–32 VITS 200...
  • Page 148 REQUIREMENT — "1% to 5 MHz. "3% to 10 MHz. a. Move the Sweep coax from PROGRAM IN to External 1. b. Set the VITS 200 Standby to External 1. Press Standby on the VITS 200 Front Panel. ii. Use the Increment or Decrement to set the Standby Signal to External 1.
  • Page 149 If your Instrument has a 1J option you will need to select the USA test signal set. To change the signal set perform the following steps, otherwise go to step b: Turn off the VITS 200. 5–34 VITS 200...
  • Page 150 TEST SIGNAL on the VITS 200. d. Connect a probe from CH3 of the 11A34 in the 11403A scope to U24 Pin 7 on the VITS 200 Inserter board. e. Set 11K Scope: Press Utility and initialize. ii. Enable CH3 on the 11A34.
  • Page 151 If the instrument has the 1J option then perform the following step, otherwise skip to step n. Turn off the VITS 200. ii. Press and hold the TEST SIGNAL key and turn the instrument back iii. When the message displayed is “Select Signal Set Used”, increment to JAPAN 1V.
  • Page 152 Adjustment Procedures...

  • Page 154: Adjustment Procedures

    Vertical Amplifier: 40 MHz Bandwidth, 1 mV Sensitivity Accuracy: 0.25% Time Base: 5 msec/div to 2 msec/div, capable of dual time base and accepting external triggering For example: Tektronix 11403 with a 11A34 Vertical Amplifier 5. Oscilloscope 10X Probe For example: Tektronix P6137 6–1...
  • Page 155 Auxiliary Equipment 10. 75Ω Terminators Two – 0.025% end-line terminators One – feedthrough terminator For example: Tektronix End-line Terminator, Part No. 011–0102–01 Tektronix Feedthrough Terminator, Part No. 011–0103–00 11. BNC Coax Cables 75Ω low loss video cables For example: Tektronix Part No. 012–0159–02 12.

  • Page 156: Calibration Procedure

    Calibration Procedure Preliminary Setup H Connect the VITS 200 AC power cord to the variable autotransformer. Turn the power on and set the autotransformer to 110 V. H Connect the test signal generator output to the VITS 200 PROGRAM IN with a 75 ohm coax.
  • Page 157 ADJUST – R93 for 6.0 V. DC Level Adjustments 4. Program, External, and Test Signal DC Levels a. Set the VITS 200 as follows: Press VITS. ii. INCREMENT or DECREMENT to Line 15. iii. Select 0% Black Set. iv. Press SAVE.
  • Page 158 Adjustment Procedure b. Connect a 75W cable from the 1780R CH A to the VITS 200 PROGRAM OUT (terminate CH A loopthrough with precision 75W terminator). c. Connect the test signal generator to the VITS 200 PROGRAM IN. d. Set the 1780R for DC level Checks.
  • Page 159 Adjustment Procedure Select UTILITIES from VITS 200 Front Panel. ii. Use Decrement to select Coupling External 1. iii. Use an arrow button to move the cursor to AC. iv. Use Increment or Decrement to change to DC. v. Press SAVE.
  • Page 160 OUT amplitude should match within 2 mV. h. Move the 1780R input coax from PROGRAM OUT to TEST SIGNAL. Select TEST SIGNAL on the VITS 200 and increment to NTC7 Compos(ite). ADJUST – R122 on the inserter board for 714 mV. 6. Controller Board a.
  • Page 161 Connect coax from 1780R to the VITS 200 TEST SIGNAL output. c. Select Test Signal on the VITS 200 and Increment to Sin X/X. d. Select X5 Waveform Gain on the 1780R. e. ADJUST – T2 (Inserter board) for matched tips of Sin X/X signal.
  • Page 162 Test Signal on the VITS 200. o. Connect a probe from CH 3 of the 11A34 to U24 Pin 7 on the VITS 200 Inserter board (11A34 installed in the center slot of the 11403A). p. Set 11K Scope: Press Utility and initialize.
  • Page 163 If adjustments were made in steps u or v, repeat the entire Frequency Response Adjustment procedure. y. If instrument is a 1J option, return J54 (Inserter board) to pins 2 and 3, and select JAPAN 1V as signal set, and SAVE. 6–10 VITS 200...
  • Page 164 Connect WWV signal to CH B of the DC503A, and set FUNCTION switch to RATIO A/B. d. Remove plastic plug from oscillator C19 (Inserter board). e. ADJUST – oscillator C19 (adjustment under plug in oven cover) for 28.636364 MHz 1 Hz. Replace the C19 plug. 6–11 VITS 200...
  • Page 165 Adjustment Procedure 6–12 VITS 200...

  • Page 166: Maintenance

    Maintenance...

  • Page 168: Preventive Maintenance

    4. Nothing capable of generating or holding a static charge should be allowed on the work station surface. 5. Keep the component leads shorted together whenever possible. 6. Pick up components by the body, never by the leads. 7. Do not slide the components over any surface. 7–1 VITS 200...

  • Page 169: Troubleshooting Aids

    Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â PARTS LOCATING CHART THEORY OF OPERATION OR ADJUSTMENT PROCEDURE SCHEMATIC Figure 7–1: Using the Foldout Pages 7–2 VITS 200...
  • Page 170 This illustration also shows the location of chassis-mounted components. A1A1 Figure 7–2: Circuit Board Assembly Locations. Circuit boards have been assigned an assembly number so that they may be ordered from Tektronix, Inc. They are as follows: 7–3 VITS 200...
  • Page 171 Inserter board power-up diagnostics are also executed automatically. These are the RAM, ARCTAN, and CTC tests. If any of these fail, the UNLOCKED LED on the front-panel lights, and the instrument re-runs them. The VITS 200 will not lock to program video until the power-up diagnostics are completed successfully.
  • Page 172 Test Result Indication None Normal Genlock setting, no diagnostics. Do not use This position is not used for the VITS 200. Writes to and then reads from all the mP RAM RAM Tests On failure, lights the UNLOCKED LED, and the locations in the genlock IC (A1U29 ), and instrument will not lock to program video.

  • Page 173: Corrective Maintenance

    Tektronix field office or representative will contact you concerning any change in the part number. After repair, the circuits may need readjustment. Torque Specifications Only #4, #6, and #8 screws are used in the VITS 200. Table 7–2 shows the torque ranges for these. Table 7–2: Torque Specifications...
  • Page 174 1. Disconnect the three front-panel cable assemblies from the Controller board. 2. Remove the three screws along the front edge, on the bottom of the VITS 200. 3. Lift the front-panel assembly away from the VITS 200. Inserter Board Removal 1. Remove the Front Panel, as described above.

  • Page 175: Test Selectable Parts

    130 pF, but may be selected from the range of 0 pF to 470 pF. Table 7–3: Test Selectable Parts Pin 18 of Add Capacitor In Parallel With A1U44 A1C31 A3C11 A3U3 A3C66 A3C7 A3U4 A3C67 A3C8 A3U9 A3C69 A3C31 A3U11 A3C68 A3C32 7–8 VITS 200...

  • Page 176: Replaceable Electrical Parts List

    Replaceable Electrical Parts List...
  • Page 178 Replaceable Electrical Parts This section contains a list of the components that are replaceable for the VITS 200. Use this list to identify and order replacement parts. There is a separate Replaceable Electrical Parts list for each instrument. Parts Ordering Information Replacement parts are available from or through your local Tektronix, Inc., Field...
  • Page 179 Chassis-mounted parts and cable assemblies have no assembly number prefix and are located at the end of the electrical parts list. Tektronix Part No. Indicates part number to be used when ordering replacement part from (Column 2) Tektronix.
  • Page 180 DALLAS TX 75262–5303 SEMICONDUCTOR GROUP PO BOX 655303 02875 HUDSON TOOL AND DIE CO INC 18 MALVERN ST NEWARK NJ 07105–1511 04222 AVX/KYOCERA 19TH AVE SOUTH MYRTLE BEACH SC 29577 DIV OF AVX CORP P O BOX 867 8–3 VITS 200...
  • Page 181 PO BOX 3453 34371 HARRIS CORP 200 PALM BAY BLVD MELBOURNE FL 32919 HARRIS SEMICONDUCTOR PRODUCTS GROUP PO BOX 883 4T165 NEC ELECTRONICS USA INC 475 ELLIS ST MOUNTAIN VIEW CA 94039 ELECTRON DIV PO BOX 7241 8–4 VITS 200...
  • Page 182 ELECTRONIC SUB ASSEMBLY MFG CORP 930 SE M STREET GRANTS PASS OR 97526–3248 (ESAM) PO BOX 376 91293 JOHANSON MFG CO 400 ROCKWAY VALLEY RD BOONTON NJ 07005 91637 DALE ELECTRONICS INC 2064 12TH AVE COLUMBUS NE 68601–3632 PO BOX 609 8–5 VITS 200...
  • Page 183 FC20X2JA–BB NUMERIC,5 X 7 DOT MATRIX,DC/DC AC CONVERT,CHAR GEN, LOGIC & MICRO COMP 671–2132–00 B010100 B010118 CIRCUIT BD ASSY:INSERTER 80009 671213200 671–2132–01 B010119 B010122 CIRCUIT BD ASSY:INSERTER 80009 671213201 671–2132–02 B010123 B010202 CIRCUIT BD ASSY:INSERTER 80009 671213202 8–6 VITS 200...
  • Page 184 281–0925–01 CAP,FXD,CER:MLC;0.22UF,20%,50V,Z5U.0.170 X 0.120 04222 SA115E224MAA A1C9 281–0707–00 CAP,FXD,CER DI:15000PF,10%,200V 04222 MA302C153KAA A1C10 281–0925–01 CAP,FXD,CER:MLC;0.22UF,20%,50V,Z5U.0.170 X 0.120 04222 SA115E224MAA A1C11 283–0100–00 CAP,FXD,CER DI:0.0047UF,10%,200V 04222 SR302A472KAA A1C12 281–0925–01 CAP,FXD,CER:MLC;0.22UF,20%,50V,Z5U.0.170 X 0.120 04222 SA115E224MAA A1C13 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA 8–7 VITS 200...
  • Page 185 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A1C73 283–0648–01 CAP,FXD,MICA DI:10PF,5%,500VTAPED & REELED TK0891 RDM15CD100D03 A1C74 283–0600–01 CAP,FXD,MICA DI:43PF,5%,500VTAPE & AMMO PACK 09023 CDA10ED430J03 A1C75 283–0615–01 CAP,FXD,MICA DI:33PF,5%,500V,TAPE & AMMO PACK 09023 CDA15ED330J03 A1C76 283–0768–00 CAP,FXD,MICA DI:132 PF,1%,500V TK0891 RDM15FD132OFO3 8–8 VITS 200...
  • Page 186 CAP,FXD,CER DI:1UF,+80–20%,25V 04222 SR303E105ZAA A1C108 283–0177–00 CAP,FXD,CER DI:1UF,+80–20%,25V 04222 SR303E105ZAA A1C109 283–0177–00 CAP,FXD,CER DI:1UF,+80–20%,25V 04222 SR303E105ZAA A1C110 290–1291–00 671–2132–00 671–2132–04 CAP,FXD,ALUM:150UF,20%,400V,30 X 30MM;SNAPIN,105 0H1N5 CEAUF2G151M30 DEG,BULK A1C110 290–1301–00 671–2132–05 CAP,FXD,ALUM:2700UF,20%,10V,12.5 X 30MM 0H1N5 CEEFM1A272M7 (0.492 X 1.180) 8–9 VITS 200...
  • Page 187 SA105E104MAA A1C160 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A1C161 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A1C162 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A1C163 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A1C164 290–0990–00 CAP,FXD,ALUM:10UF,20%,50V,8X11.5 55680 UET1H100MPH A1C165 281–0265–00 CAP,VAR,CER DI:5.2–30PF,100V 51406 TZ03R300FR169 A1C167 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA 8–10 VITS 200...
  • Page 188 CONN,RF JACK:BNC;50 OHM,FEMALE,RTANG,PCB/REAR 00779 227677–1 PNL,0.5–28 THD,0.625 H X 0.187 TAIL,W/O A1J11 131–0787–00 TERMINAL,PIN:PCB/PRESSFIT;MALE,STR,0.025 SQ,0.448 22526 47359–001 MLG X 0.137 TAIL,0.600 L,PHOS BRZ,50 GOLD (QUANTITY 5) A1J12 131–0608–00 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) 8–11 VITS 200...
  • Page 189 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) A1J56 131–0608–00 671–2132–05 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) A1J57 131–0608–00 671–2132–05 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) 8–12 VITS 200...
  • Page 190 A1P57 131–0993–02 671–2132–05 BUS,CONDUCTOR:SHUNT ASSEMBLY,RED 00779 1–850100–O A1Q1 151–0190–00 XSTR,SIG:BIPOLAR,NPN;40V,200MA,300MHZ,AMPL 04713 2N3904 A1Q2 151–0190–00 XSTR,SIG:BIPOLAR,NPN;40V,200MA,300MHZ,AMPL 04713 2N3904 A1Q3 151–0190–00 XSTR,SIG:BIPOLAR,NPN;40V,200MA,300MHZ,AMPL 04713 2N3904 A1Q4 151–0622–00 XSTR,SIG:BIPOLAR,PNP;40V,1.0A,50MHZ,AMPL 04713 MPS6727 A1Q5 151–0710–00 XSTR,SIG:BIPOLAR,NPN;40V,1.0A,50MHZ,AMPL 04713 MPSW01A A1Q6 151–0342–00 XSTR,SIG:BIPOLAR,PNP;60V,50MA,40MHZ,AMPL 04713 MPS4249 8–13 VITS 200...
  • Page 191 CCF501G392R0F A1R33 311–2226–00 671–2132–00 671–2132–02 RES,VAR,TRMR:CERMET;50 OHM,20%,0.5W,0.197 SQ,TOP TK2073 GF06UT2 500 M L ADJUST A1R33 311–2227–00 671–2132–03 671–2132–12 RES,VAR,TRMR:CERMET;100 OHM,20%,0.5W,0.197SQ,TOP TK2073 GF06UT2 101 M L ADJUST A1R33 311–2228–00 671–2132–13 RES,VAR,TRMR:CERMET;200 OHM,20%,0.5W,0.197SQ,TOP TK2073 GF06UT2 201 M L ADJUST 8–14 VITS 200...
  • Page 192 CCF501G30100F A1R76 322–3250–00 RES,FXD:METAL FILM;3.92K OHM,1%,0.2W,TC=100 91637 CCF50–2F39200F A1R77 322–3193–00 RES,FXD:METAL FILM;1K OHM,1%,0.2W,TC=100 PPM 91637 CCF501G10000F A1R78 322–3354–00 RES,FXD:METAL FILM;47.5K OHM,1%,0.2W,TC=100 91637 CCF501G47501F A1R79 322–3414–00 RES,FXD:METAL FILM;200K OHM,1%,0.2W,TC=100PPM 91637 CCF501G20002F A1R80 322–3354–00 RES,FXD:METAL FILM;47.5K OHM,1%,0.2W,TC=100 91637 CCF501G47501F 8–15 VITS 200...
  • Page 193 RES,FXD,FILM:1K OHM,5%,0.25W TK1727 SFR25 2322–181– A1R147 315–0270–00 RES,FXD,FILM:27 OHM,5%,0.25W TK1727 SFR25 2322–181– A1R149 308–0585–00 671–2132–00 671–2132–04 RES,FXD,WW:50 OHM,0.5%,5W 91637 RS550R00D T/R A1R149 308–0223–00 671–2132–05 RES,FXD,WW:35 OHM,5%,3W 00213 1240S–35–5 A1R149 308–0585–00 671–2545–00 671–2545–04 RES,FXD,WW:50 OHM,0.5%,5W 91637 RS550R00D T/R 8–16 VITS 200...
  • Page 194 RES NTWK,FXD,FI:(2) 162 OHM,(2) 260 OHM,2%,0.125W 91637 CSC04B–05–162/2 A1R218 307–1318–00 RES NTWK,FXD,FI:(2) 162 OHM,(2) 260 OHM,2%,0.125W 91637 CSC04B–05–162/2 A1R219 307–1318–00 RES NTWK,FXD,FI:(2) 162 OHM,(2) 260 OHM,2%,0.125W 91637 CSC04B–05–162/2 A1R220 322–3165–00 RES,FXD,FILM:511 OHM,1%,0.2W,TC=T0MI,SM BODY 91637 CCF501G511R0F A1R221 322–3165–00 RES,FXD,FILM:511 OHM,1%,0.2W,TC=T0MI,SM BODY 91637 CCF501G511R0F 8–17 VITS 200...
  • Page 195 IC,MEMORY:CMOS,EPROM;32K X 8 80009 160886702 A1U4 160–8612–01 671–2132–05 IC,MEMORY:CMOS,EPROM;8K X 8 80009 160861201 A1U4 160–9573–00 IC,MEMORY:CMOS,8K X 8,EPROM (Opt 1C Philips GCR) 80009 160957300 A1U4 163–1015–00 IC,MEMORY:CMOS,32K X 8,EPROM (Opt 1K Korean GCR) 80009 163101500 *MOUNTING PARTS* 8–18 VITS 200...
  • Page 196 IC,MEMORY:CMOS,EPROM;32K X 8 WITH 3 STATE OUT 80009 160887001 A1U13 160–8870–02 671–2545–02 671–2545–04 IC,MEMORY:CMOS,EPROM;32K X WITH 3 STATE OUT 80009 160887002 A1U13 160–8606–01 671–2132–05 671–2132–10 IC,MEMORY:CMOS,EPROM;64K X 16 80009 160860601 A1U13 160–8606–02 671–2132–11 IC,MEM:CMOS,EPROM;64K X 16,150NS,OTP,27C210, 80009 160860602 PLCC44 8–19 VITS 200...
  • Page 197 0.130 TAIL,BECU,TIN,ACCOM 0.008–0.015THRU 0.014 X 0.022 LEADS *END MOUNTING PARTS* A1U25 160–8609–00 IC,MEMORY:CMOS,EPROM;16K X 8,150NS,27C128 80009 160860900 *MOUNTING PARTS* 136–0755–00 SOCKET,DIP:PCB;FEMALE,STR,2 X 14,28 POS,0.1 X 0.6 09922 DILB28P–108 CTR,0.175 H X0.130 TAIL,BECU,TIN,ACCOM 0.008–0.0015 X 0.014–0.022 *END MOUNTING PARTS* 8–20 VITS 200...
  • Page 198 IC,DIGITAL:ALSTTL,FLIP FLOP;OCTAL D–TYPE, W/CLEAR 01295 SN74ALS273N A1U35 156–3728–00 IC,PROCESSOR:CMOS,MICROPROCESSOR;8–BIT,8MHZ 56708 Z84C0008PEC *MOUNTING PARTS* 136–0757–00 SOCKET,DIP:PCB;FEMALE,STR,2 X 20,40 POS,0.1 X 0.6 09922 DILB40P–108 CTR,0.175 H X0.130 TAIL,BECU,TIN,ACCOM 0.008–0.015 X 0.014–0.022 IC *END MOUNTING PARTS* A1U36 156–1754–02 IC,DGTL:ALSTTL,BFR/DRVR;OCTALNONINV, HI 01295 SN74ALS244A–1N DRV,3–STATE 8–21 VITS 200...
  • Page 199 TK2598 155031602 *MOUNTING PARTS* 136–0871–00 SOCKET,PLCC:PCB;68 POS,0.05 CTR,0.360H X0.125 00779 3–821574–1 TAIL,TIN,0.1 CTRPCB,0.060 SHOULDER HEIGHT *END MOUNTING PARTS* A1U67 156–4150–00 IC,LINEAR:BIPOLAR,AMPL;100MHZ,CURRENTFEED- 64762 EL2090CN BACK,SAMPLE/HOLD,VIDEO DC RESTORATION *MOUNTING PARTS* 136–0728–00 SKT,PL–IN ELEK:MICROCKT,14 CONTACT 09922 DILB14P–108 *END MOUNTING PARTS* 8–22 VITS 200...
  • Page 200 F5C–8.0 MHZ 14 PIN COMPATIBLE PKG A1CR5 152–0141–02 DIODE,SIG:ULTRA FAST;40V,150MA,4NS,2PF 27014 FDH9427 A1CR7 152–0141–02 DIODE,SIG:ULTRA FAST;40V,150MA,4NS,2PF 27014 FDH9427 A1CR8 152–0141–02 DIODE,SIG:ULTRA FAST;40V,150MA,4NS,2PF 27014 FDH9427 A1CR9 152–0601–01 DIODE,RECT:ULTRA FAST;150V,25NS,35A IFSM 04713 MUR115RL A1CR10 152–0601–01 DIODE,RECT:ULTRA FAST;150V,25NS,35A IFSM 04713 MUR115RL 8–23 VITS 200...
  • Page 201 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR A1TP8 214–4085–00 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR A1TP9 214–4085–00 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR 8–24 VITS 200...
  • Page 202 (REPLACEABLE AT A1A1 ONLY) A1A1CR14 152–0612–00 DIODE,SIG:VVC;50V,15–20PF,C4/30=2.33,Q=15 04713 SMV1561 A1A1RT11 307–0181–01 RES,THERMAL:20K OHM,5%,AT 60 DEG C 91637 C771 671–2133–00 CIRCUIT BD ASSY:FRONT PANEL 80009 671213300 A2J1 131–3152–00 CONN,HDR:PCB;MALE,STR,2 X 8,0.1 CTR,0.365H X 0.112 53387 2516–6002UB TAIL,SHRD/4 SIDES,CTR PLZ,30 GOLD 8–25 VITS 200...
  • Page 203 *END ATTACHED PARTS* A2S11 260–2401–00 SWITCH,PUSH:SPST;MOM,NO,150 GRM 61964 B3E–1000 FRC,SEALED,50MA,24VDC,100M OHM *ATTACHED PARTS* 366–0683–00 PUSH BUTTON:SWITCH CAP 0JR05 366–0683–00 *END ATTACHED PARTS* A2S12 260–2401–00 SWITCH,PUSH:SPST;MOM,NO,150 GRM 61964 B3E–1000 FRC,SEALED,50MA,24VDC,100M OHM *ATTACHED PARTS* 366–0683–00 PUSH BUTTON:SWITCH CAP 0JR05 366–0683–00 8–26 VITS 200...
  • Page 204 CAP,FXD,CER:MLC;0.22UF,20%,50V,Z5U.0.170 X 0.120 04222 SA115E224MAA A3C27 290–0990–00 CAP,FXD,ALUM:10UF,20%,50V,8X11.5 55680 UET1H100MPH A3C28 290–0990–00 CAP,FXD,ALUM:10UF,20%,50V,8X11.5 55680 UET1H100MPH A3C29 281–0765–00 CAP,FXD,CER DI:100PF,5%,100V 04222 SA102A101JAA A3C30 281–0765–00 CAP,FXD,CER DI:100PF,5%,100V 04222 SA102A101JAA A3C31 283–0100–00 CAP,FXD,CER DI:0.0047UF,10%,200V 04222 SR302A472KAA A3C32 283–0100–00 CAP,FXD,CER DI:0.0047UF,10%,200V 04222 SR302A472KAA 8–27 VITS 200...
  • Page 205 04222 SA105E104MAA A3C87 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C88 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C89 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C90 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C91 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C92 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C93 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA 8–28 VITS 200...
  • Page 206 04222 SA105E104MAA A3C150 290–0942–00 CAP,FXD,ELCTLT:100UF,+100–10%,25V,ALUMINUM 0H1N5 CEUFM1E101 A3C151 290–0942–00 CAP,FXD,ELCTLT:100UF,+100–10%,25V,ALUMINUM 0H1N5 CEUFM1E101 A3C152 290–0942–00 CAP,FXD,ELCTLT:100UF,+100–10%,25V,ALUMINUM 0H1N5 CEUFM1E101 A3C153 290–0942–00 CAP,FXD,ELCTLT:100UF,+100–10%,25V,ALUMINUM 0H1N5 CEUFM1E101 A3C154 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C155 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA A3C156 281–0775–01 CAP,FXD,CER:MCL;0.1UF,20%,50V,Z5U,0.170 04222 SA105E104MAA 8–29 VITS 200...
  • Page 207 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) A3J22 131–0608–00 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) A3J49 131–0608–00 CONN,TERMINAL:PRESSFIT/PCB;MALE,STR,0.025SQ,0.248 22526 48283–018 MLG X 0.137 TAIL,50 GOLD,PHZ BRZ,W/FERRULE (QUANTITY 3) 8–30 VITS 200...
  • Page 208 RES,FXD,FILM:30.1K OHM,1%,0.2W,TC=T0MI,SMALL BODY 91637 CCF501G30101F A3R7 322–3482–02 RES,FXD,FILM:14.2K OHM,5%,0.2W,TC=TO 91637 CCF501D14201D A3R8 322–3304–00 RES,FXD,FILM:14.3K OHM,1%,0.2W,TC=T0 91637 CCF50G14301F A3R9 311–2230–00 RES,VAR,TRMR:CERMET;500 OHM,20%,0.5W,0.197SQ,TOP TK2073 GF06UT2 501 M L ADJUST A3R10 322–3482–02 RES,FXD,FILM:14.2K OHM,5%,0.2W,TC=TO 91637 CCF501D14201D A3R11 322–3304–00 RES,FXD,FILM:14.3K OHM,1%,0.2W,TC=T0 91637 CCF50G14301F 8–31 VITS 200...
  • Page 209 A3R62 322–3289–00 RES,FXD:METAL FILM;10K OHM,1%,0.2W,TC=100 PPM 91637 CCF50G10001F A3R63 322–3302–00 RES,FXD,FILM:13.7K OHM,1%,0.2W,TC=T0MI,SMALL BODY 91637 CCF502G13701F A3R64 322–3085–07 RES,FXD:METAL FILM;75 OHM,0.1%,0.2W,TC=25 PPM 91637 CCF502–C75ROOBT A3R65 322–3085–07 RES,FXD:METAL FILM;75 OHM,0.1%,0.2W,TC=25 PPM 91637 CCF502–C75ROOBT A3R66 322–3482–02 RES,FXD,FILM:14.2K OHM,5%,0.2W,TC=TO 91637 CCF501D14201D 8–32 VITS 200...
  • Page 210 RES,FXD:METAL FILM;2.74K OHM,1%,0.2W,TC=100 91637 CCF501G27400F A3R115 322–3235–00 RES,FXD:METAL FILM;2.74K OHM,1%,0.2W,TC=100 91637 CCF501G27400F A3R119 311–2234–00 RES,VAR,TRMR:CERMET;5K OHM,20%,0.5W,0.197 SQ,TOP TK2073 GF06UT2 502 M L ADJUST A3R120 322–3289–00 RES,FXD:METAL FILM;10K OHM,1%,0.2W,TC=100 PPM 91637 CCF50G10001F A3R121 322–3302–00 RES,FXD,FILM:13.7K OHM,1%,0.2W,TC=T0MI,SMALL BODY 91637 CCF502G13701F 8–33 VITS 200...
  • Page 211 91637 CCF50G11501F A3U1 156–4150–00 IC,LINEAR:BIPOLAR,AMPL;100MHZ,CURRENTFEED- 64762 EL2090CN BACK,SAMPLE/HOLD,VIDEO DC RESTORATION *MOUNTING PARTS* 136–0728–00 SKT,PL–IN ELEK:MICROCKT,14 CONTACT 09922 DILB14P–108 *END MOUNTING PARTS* A3U2 156–4150–00 IC,LINEAR:BIPOLAR,AMPL;100MHZ,CURRENTFEED- 64762 EL2090CN BACK,SAMPLE/HOLD,VIDEO DC RESTORATION *MOUNTING PARTS* 136–0728–00 SKT,PL–IN ELEK:MICROCKT,14 CONTACT 09922 DILB14P–108 8–34 VITS 200...
  • Page 212 A3U26 160–8586–00 671–2131–00 671–2131–01 IC,MEMORY:CMOS,EPROM;64K X 8 80009 160858600 A3U26 160–8586–01 671–2131–02 671–2131–03 IC,MEMORY:CMOS,EPROM;64K X 8,27C512 80009 160858601 A3U26 160–8586–03 671–2131–04 IC,MEMORY:CMOS,EPROM;64K X 8,150NS 80009 160858603 A3U26 160–9577–00 IC,MEMORY:CMOS,EPROM;64K X 8 (Opt 1C Philips GCR) 80009 160957700 8–35 VITS 200...
  • Page 213 234–0428–20 QUICK CHIP:VIDEO CHANNEL SWITCH,PKG TK2598 234042820 *MOUNTING PARTS* 136–0752–00 SKT,PL–IN ELEK:MICROCIRCUIT,20 DIP 09922 DILB20P–108 *END MOUNTING PARTS* A3U42 156–2321–00 IC,DIGITAL:ASTTL,GATE;QUAD 2–INPUT AND 01295 SN74AS08N A3U43 156–0728–02 IC,DIGITAL:LSTTL,GATES 01295 SN74LS09N A3U44 156–3142–00 IC,DIGITAL:HCTCMOS,GATE;QUAD 2–INPUT NAND 01295 SN74HCT00N 8–36 VITS 200...
  • Page 214 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR A3TP5 214–4085–00 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR A3TP6 214–4085–00 TERM,TEST POINT:0.070 ID,0.220 H,0.063 DIAPCB,0.015 X 26364 104–01–02 0.032 BRASS,W/RED NYLON COLLAR 8–37 VITS 200...
  • Page 215 CA ASSY,SP,ELEC:2,26 AWG,8.0 L,RIBBON TK1547 174–2383–00 (CONNECTED AT A3J15 & A4P2) 174–0080–01 CABLE ASSY,RF:75 OHM COAX,9.0 L 9M860 ORDER BY DESC (CONNECTED AT A1J50 TO A3J50) 174–2594–00 CABLE ASSY,RF:75 OHM COAX,13.0 L,W/CONN &HOLDER TK1547 174–2594–00 (CONNECTED AT A1J51 TO A3J51) 8–38 VITS 200...
  • Page 216 Effective Discontinued Name & Description Code Number 174–0080–01 CABLE ASSY,RF:75 OHM COAX,9.0 L 9M860 ORDER BY DESC (CONNECTED AT A1J52 TO A3J52) 174–0080–01 CABLE ASSY,RF:75 OHM COAX,9.0 L 9M860 ORDER BY DESC (CONNECTED AT A1J53 TO A3J53) 8–39 VITS 200...
  • Page 217 Replaceable Electrical Parts 8–40 VITS 200...

  • Page 218: Schematics

    Schematics...
  • Page 220 Example: ID CONTROL, (ID CONTROL), or /ID CONTROL. Abbreviations are based on ANSI Y1.1–1972. Other ANSI standards that are used in the preparation of diagrams by Tektronix, Inc. are: Y14.15, 1966 — Drafting Practices. Y14.2, 1973 — Line Conventions and Lettering.
  • Page 221 FUNCTION BLOCK CONNECTOR TITLE 0.1UF -15V SEE PARTS LIST FOR CIRCUIT BOARD EARLIER VALUES AND OUTLINE SERIAL NUMBER RANGES. PART OF A1 MAIN BOARD INSTRUMENT NAME VERTICAL INPUT SCHEMATIC NAME & NUMBER ASSEMBLY NUMBER COMPONENT LOCATOR GRID 9–2 VITS 200...

  • Page 222: Replaceable Mechanical Parts List

    Replaceable Mechanical Parts List...
  • Page 224 R153 R229 C136 CR11 R13D R154 R230 C137 CR12 R13E R155 R231 C139 CR13 R13F R156 R500 C140 CR14 R13G R157 R501 C141 CR15 R13H R158 R502 C142 CR16 R13I R159 R503 C143 CR17 R160 R504 C144 CR18 VITS 200...
  • Page 225 671-2132-05 & Up Static Sensitive Devices See Maintenance Section A1 Inserter Board Component locator for diagram <1> located on back of this page. VITS 200...
  • Page 226 2K/4K LBL9 CCPRES J4-30 LBL10 I9/OE CCLINE U41-11 U71A-6 LBL11 NOTE: NOT USED ON VITS 200 VIRSPRES U71B-9 SEE PARTS LIST FOR EARLIER VALUES CLKA AND SERIAL NUMBER RANGES. (VIRSAMP) U48A-1 E/ES 671–2132–05 & UP P/O A1 INSERTER BOARD VITS 200...
  • Page 227 VITS 200...
  • Page 228 C130 R156 R231 C131 R157 R500 C132 R158 R501 C133 CR10 R159 R502 C134 CR11 R160 R503 C135 CR12 R161 R504 C136 CR13 R162 R505 C137 CR14 R163 R506 C139 CR15 R164 C140 CR16 R165 C141 CR17 R166 VITS 200...
  • Page 229 671-2132-00 – 04 Static Sensitive Devices See Maintenance Section A1 Inserter Board Component locator for diagram <1> located on back of this page. VITS 200...
  • Page 230 LBL7 (VIRSAMP) U48A-1 BLTS4 U54-5 BLTS5 E/ES,I CLKA 671–2132–00 – 04 NOTE: NOT USED ON VITS 200 NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 TEST SIGNAL MEMORY REV NOV 1992...
  • Page 231 Schematic Diagram <2> A1 Component Locator Chart The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. Assembly A1. (Partial Assembly A1 also shown on schematic 1 and 3 thru 9. Comp Diag VITS 200...
  • Page 232 2 3 4 5 6 7 8 9 74LS251 FPTS2 (2K/4K) 2 3 4 5 6 7 8 9 74LS251 FPTS3 (2K/4K) 671–2132–00 & UP NOTE: NOT USED ON VITS 200 P/O A1 INSERTER BOARD VITS 200 TEST SIGNAL SELECT REV AUG 1995...
  • Page 233 (Partial Assembly A1 also shown on schematic 1, 2, and 4 thru 9). Assembly A1. Diag Comp Diag Comp Diag Comp Diag Comp C161 R13E C184 R13F R13G CR25 R13H CR27 R13I CR28 CR29 R132 R133 R134 R135 R137 R138 R13A R211 U57D R13B R212 R13C R213 R13D R231 VITS 200...
  • Page 234 SRCLK (INHIBIT) DIP16 R13H RCLK 2.7k FPSTANDBY R13C 2.7k U87-3 POWER 671–2132–05 & UP C161 (RESYNC) (RESYNC) 0.1uF NOTE: NOT USED ON VITS 200 P/O A1 INSERTER BOARD VITS 200 H&V COUNTERS,DECODERS, SOURCE IDENTIFICATION & BYPASS CONTROLS REV AUG 1995...
  • Page 235 (Partial Assembly A1 also shown on schematic 1, 2, 3, and 5 thru 9). Assembly A1. Comp Diag Comp Diag Comp Diag Comp Diag C161 C184 R132 R133 CR25 R134 R135 R137 R138 R211 R212 R213 R231 U57D VITS 200...
  • Page 236 4.32k SRCLK DIP16 RCLK POWER 671–2132–00 – 04 NOTE: NOT USED ON VITS 200 NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 H&V COUNTERS,DECODERS, SOURCE IDENTIFICATION & BYPASS CONTROLS REV NOV 1992...
  • Page 237 The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A1 also shown on schematic 1, 2, 3, and 5 thru 9). Assembly A1. Diag Comp Diag Comp Diag Comp Diag Comp C135 R178 C136 R179A R179B R179C R179D R179E R179F R179G R179H R177 R179I VITS 200...
  • Page 238 U70-22 (INT) R179F R179E R179G C136 2.7k 2.7k 2.7k 0.1uF R179A 2.7k UNUSED PULL-UP RESISTORS (INT) 671–2132–00 & UP NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 GENLOCK REV AUG 1995...
  • Page 239 Schematic Diagram <5> Component Locator Chart The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A1 also shown on schematic 1 thru 4 and 6, 9). Assembly A1. Diag Comp Diag Comp Diag Comp Diag...
  • Page 240 C159 C507 C150 0.1uF 0.1uF 0.1uF 33pF 33pF 0.1uF -10V NOTE: SEE PARTS LIST FOR EARLER VALUES P/O A1 INSERTER BOARD AND SERIAL NUMBER RANGES REV JAN 1996 VITS 200 PROGRAM INPUT, SYNC STRIPPER, VIRS DETECTION, & GENLOCK A/D INPUT...
  • Page 241 R226 A1A1 Oven Board TP11 U55A C125 U55B C128 U55C U56A U56B CR14 U61A U63A U63B R190 U63C U81A R191 R206 R207 R217 R218 R219 RT11 R220 R221 R222 R223 R224 R225 Front Back A1A1 Oven Board 119–4228–00 VITS 200...
  • Page 242 2 - 3 OSCILLATOR OVEN OFF 200.0k +12V U56A 47.5k 1458 -12V 1.0k 2.4V -12V 0.1uF 200.0k 47.5k 1 OHM -12V 671–2132–00 & UP NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER BREAKS. P/O A1 INSERTER BOARD VITS 200 CLOCKS REV AUG 1995...
  • Page 243 R112 U55B R113 U55C R114 U56A R115 U56B C119 R116 C125 R117 C128 R118 U61A C164 R119 C165 R120 U63A C176 R121 U63B R122 U63C C177 C178 R123 C179 R124 C180 R125 U81A C181 R126 C182 R127 C183 VITS 200...
  • Page 244 MONITOR OUT C155 0.1uF 0.1uF 100uF 5.6pF 671-2132-00 - 04 R111 0.1uF 0.1uF 1.21k -12V 671-2132-00 & UP NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 ANALOG OUTPUT REV AUG 1995...
  • Page 245 CR24 R153 S10A C105 CR26 S10B C106 R154 C107 R155 C108 R156 C109 R157 R158 C110 R159 C111 R160 C112 R161 C113 R162 U76A C114 R163 U76B C115 R164 C116 R165 C117 R166 J4 C C118 R167 C500 VITS 200...
  • Page 246 2.00k R160 8.25k C112 .068uF R158 0.1uF 2.74k TL431C R169 1.50k R170 OUTPUT VOLTAGE 671–2132–00 & UP ADJUST NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 POWER SUPPLY REV AUG 1995...
  • Page 247 Comp C139 C505 C140 C141 C145 C146 C147 C149 C152 C153 C156 C162 C163 C121 C167 C122 C168 C123 C169 C124 C170 TP10 C126 C171 C129 C172 U50A C130 C173 U50B C131 C174 C132 C503 C134 C504 C137 VITS 200...
  • Page 248 C171 0.1uF C167 C168 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF -12V -12V -12V 671–2132–00 & UP NOTE: SEE PARTS LIST FOR EARLER VALUES AND SERIAL NUMBER RANGES P/O A1 INSERTER BOARD VITS 200 REGULATOR & DECOUPLING CAPS REV AUG 1995...
  • Page 249 VITS 200...
  • Page 250 VITS 200...
  • Page 251 Static Sensitive Devices See Maintenance Section A2 Front Panel Board Diagram <1> Component Locator The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. Assembly A2. Comp Diag VITS 200...
  • Page 252 ENABLE INCREMENT CURSOR DOWN CURSOR UP CONTROLLER BOARD SAVE DECREMENT CURSOR RIGHT CURSOR LEFT TEST SIGNAL VITS UTILITIES LOCKOUT STANDBY VERTICAL CHARACTERS STANDBY CHARACTERS A2 FRONT PANEL BOARD REV AUG 1995 VITS 200 FRONT PANEL...
  • Page 253 VITS 200...
  • Page 254 R201 U63D C153 C154 R121 R202 C155 R122 R203 C156 R123 R204 C157 R124 R205 C100 C158 R125 R206 C101 C159 R126 R207 C102 C160 R127 C103 C161 R128 C104 C162 R129 C105 C163 R130 C106 C164 R131 VITS 200...
  • Page 255 671-2131-02 & Up Static Sensitive Devices A3 Controller Board See Maintenance Section VITS 200...
  • Page 256 C161 R125 R205 C104 C162 R126 R206 C105 C163 R127 R207 C106 C164 * C107 C165 * R128 C108 C166 * R129 C109 C167 * R130 C111 R131 C112 R132 * See parts list for serial number ranges. VITS 200...
  • Page 257 C159 C160 C162 C162 C163 671-2131-00 – 01 Static Sensitive Devices A3 Controller Board See Maintenance Section VITS 200...
  • Page 258 1 - 2 EXTERNAL 2 CLAMP TIMING 2 - 3 INTERNAL CLAMP TIMING CLAMP J10-38 671–2131–00 & UP NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 EXTERNAL INPUTS 1 & 2 REV AUG 1995...
  • Page 259 R115 R119 R120 R121 R122 R123 R124 R204 R205 R206 R207 U15A U15B R100 U15C R101 U15D R102 U16A R103 U16B R105 U55C R106 U55D R107 U56C C161 R108 U56D C162 R109 C166 R110 C167 R111 R112 R113 VITS 200...
  • Page 260 681.0 R101 2.74k -10V U56D 0.68uF .0047uF U55D 74ALS00 74ALS32 CLAMP4 U48-9 671–2131–00 & UP NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 EXTERNAL INPUTS 3 & 4 REV AUG 1995...
  • Page 261 The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1, 2, and 4 thru 7). Assembly A3. Diag Comp Diag Comp Diag Comp Diag Comp R125 R126 R127 R128 VITS 200...
  • Page 262 CONTROLLER PROM SIZE (NVRAM) 1 - 2 27C010 OR 27C512 (NVOE) 2 - 3 27C512 OR 27C256 671-2131-00 & UP NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 MICROPROCESSOR KERNEL REV AUG 1995...
  • Page 263 The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1, 2, 3, and 5 thru 7). Assembly A3. Comp Diag Comp Diag Comp Diag Comp Diag U39B U39C R129 U39D R130 U39A VITS 200...
  • Page 264 I9/OE BLKBRST U56-1 J10-31 (TSRAM) TSRAM U21-17 U61-5 (INHIBIT) U48-19 (BLANKEN) 671–2131–02 & UP NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 TEST SIGNAL & CHARACTER SELECTION MEMORY REV AUG 1995...
  • Page 265 The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1, 2, 3, 4, and 6 thru 7). Assembly A3. Diag Comp Diag Comp Diag Comp Diag Comp U39B U39C R129 U39D R130 U39A VITS 200...
  • Page 266 BLKBRST U60-11 J10-31 (TSRAM) TSRAM U21-17 U61-5 (INHIBIT) U48-19 DIAG3 671–2131–00 – 01 671-2131-01 NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 TEST SIGNAL & CHARACTER SELECTION MEMORY REV OCT 1992...
  • Page 267 Schematic Diagram <5> Component Locator Chart 671-2131-02 & UP The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1 thru 4 and 6, 7). Assembly A3. Diag Comp Diag Comp...
  • Page 268 0.1uF 0.1uF 100uF 100uF 100uF 100uF U44B 74HCT00 -10V -12V -10V -12V U23-79 671–2131–02 & UP NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 CONNECTORS & EXTERNAL MULTIPLEXER REV AUG 1995...
  • Page 269 Diag Comp C154 R149 C155 R150 C156 R131 R185 C157 R132 R133 R134 R135 U42A R136 U42B R137 U43A R138 U43B R139 U43C R140 U43D R141 U44A R142 U44B R143 R144 C150 R145 C151 R146 C152 R148 C153 VITS 200...
  • Page 270 0.1uF 0.1uF 100uF 100uF 100uF 100uF U44B 74HCT00 -10V -12V -10V -12V U23-79 671–2131–00 – 01 NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 CONNECTORS & EXTERNAL MULTIPLEXER REV MAY 1993...
  • Page 271 Schematic Diagram <6> Component Locator Chart 671-2131-02 and UP The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1 thru 5 and 7). Assembly A3. Diag Comp Diag Comp Diag...
  • Page 272 +12V -12V -12V R163 U63D 3.01K LM339 DC/AC1 R201 R170 1.50K U63A LM339 DC/AC2 R200 -12V U63B LM339 DC/AC3 R206 U63C LM339 DC/AC4 R207 671–2131–02 & UP P/O A3 CONTROLLER BOARD VITS 200 BLACK BURST, CLAMP CONTROL REV AUG 1995...
  • Page 273 Schematic Diagram <6> Component Locator Chart 671-2131-00 – 01 The schematic diagram has an alphanumeric grid to assist in locating parts within that diagram. (Partial Assembly A3 also shown on schematic 1 thru 5 and 7). Assembly A3. Diag Comp Diag Comp Diag...
  • Page 274 DC/AC1 R170 1.50K U63A LM339 DC/AC2 -12V U63B LM339 DC/AC3 U63C LM339 DC/AC4 671–2131–00 – 01 NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 BLACK BURST, CLAMP CONTROL REV OCT 1992...
  • Page 275 C122 R198 C100 C123 C101 C124 C102 C125 C103 C142 C104 C143 C105 C144 C106 C145 C107 C146 C149 C108 C109 TP10 C111 TP11 C112 C113 C114 C115 C116 C117 C118 R183 C119 R184 C120 R196 C121 R197 VITS 200...
  • Page 276 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 671–2131–00 & UP -10V -10V -10V -10V -10V NOTE: SEE PARTS LIST FOR EARLIER VALUES AND SERIAL NUMBER RANGES. P/O A3 CONTROLLER BOARD VITS 200 PROCESSOR I/O REV AUG 1995...
  • Page 277 VITS 200...

  • Page 278: Replaceable Electrical Parts List

    Replaceable Mechanical Parts This section contains a list of the components that are replaceable for the VITS 200. Use this list to identify and order replacement parts. There is a separate Replaceable Mechanical Parts list for each instrument. Parts Ordering Information Replacement parts are available from or through your local Tektronix, Inc., Field...
  • Page 279 Figure & Index No. Items in this section are referenced by figure and index numbers to the illustra- (Column 1) tions. Tektronix Part No. Indicates part number to be used when ordering replacement part from (Column 2) Tektronix. Serial No.
  • Page 280 FISCHER SPECIAL MFG CO 111 INDUSTRIAL RD COLD SPRING KY 41076–9749 80009 TEKTRONIX INC 14150 SW KARL BRAUN DR BEAVERTON OR 97077–0001 PO BOX 500 80126 PACIFIC ELECTRICORD CO 747 W REDONDO BEACH GARDENA CA 90247–4203 PO BOX 10 VITS 200 10–3...
  • Page 281 –28 337–3844–00 SHIELD,ELEC:POWER SUPPLY,PLASTIC 80009 337384400 –29 ––––––––––– CIRCUIT BD ASSY:CONTROLLER (SEE A3 REPL) *MOUNTING PARTS* –30 211–0244–00 SCR,ASSY WSHR:4–40 X 0.312,PNH,STL,CD PL,POZ,MACH TK0435 7772–312 –31 220–0497–00 NUT,PLAIN,HEX:0.5–28 X 0.562 HEX,BRS CD PL 73743 ORDER BY DESC 10–4 VITS 200...
  • Page 282 STANDARD ACCESSORIES –41 161–0216–00 CABLE ASSY,PWR:3,18 AWG,2.5M L,BLACK 80126 C7120–25M–BL 070–8332–04 MANUAL,TECH:INSTRUCTION,VITS200 TK2548 070833204 351–0751–01 B010100 B020335 TRK,SL OUT SECT:STA & INTERMEDIATE SAF CONT 06666 CC3442–99–0006 351–0859–00 B020336 TRK SL OUT SECT:STA & INTERMEDIATE SAF CONT 06666 CC3442–99–0005 VITS 200 10–5...
  • Page 283 Replaceable Mechanical Parts 10–6 VITS 200...
