Part 1.2: FPGA Chip

The FPGA development board uses Xilinx's KINTEX UltraScale chip, model number
XCKU060-2FFVA1156I. The speed class is 2 and the temperature class is industrial.
This model is a FFVA1156 package with 1156 pins and a 1.0mm pitch. The chip
naming rules for Xilinx KINTEX UltraScale FPGA are shown in Figure 1-2-1 below:

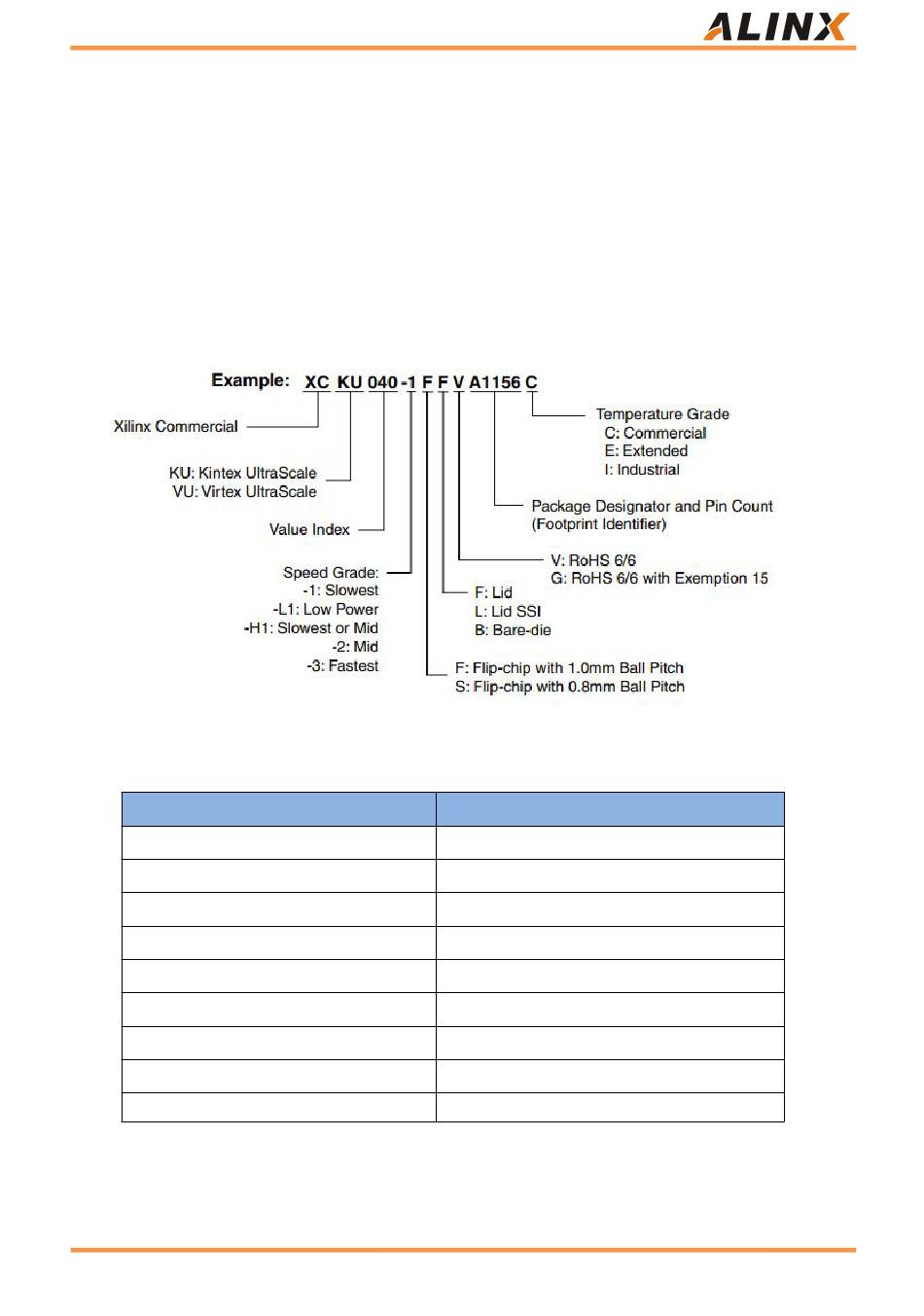

Figure 1-2-1: The Chip Model Definition of KINTEX UltraScale Series
The main parameters of AXKU062 are as follows：
Logic Cells
CLB LUTs
CLB flip-flops
Block RAM（Mb）
DSP Slices
PCIe Gen3 x8
GTH Transceiver
Speed Grade
Temperature Grade
www.alinx.com
ACKU060
Name
Core Board (Front View)
Specific parameters
725,550
331,680
663,360
38.0
2,760
20 个，16.3Gb/s max
-2
Industrial
3
