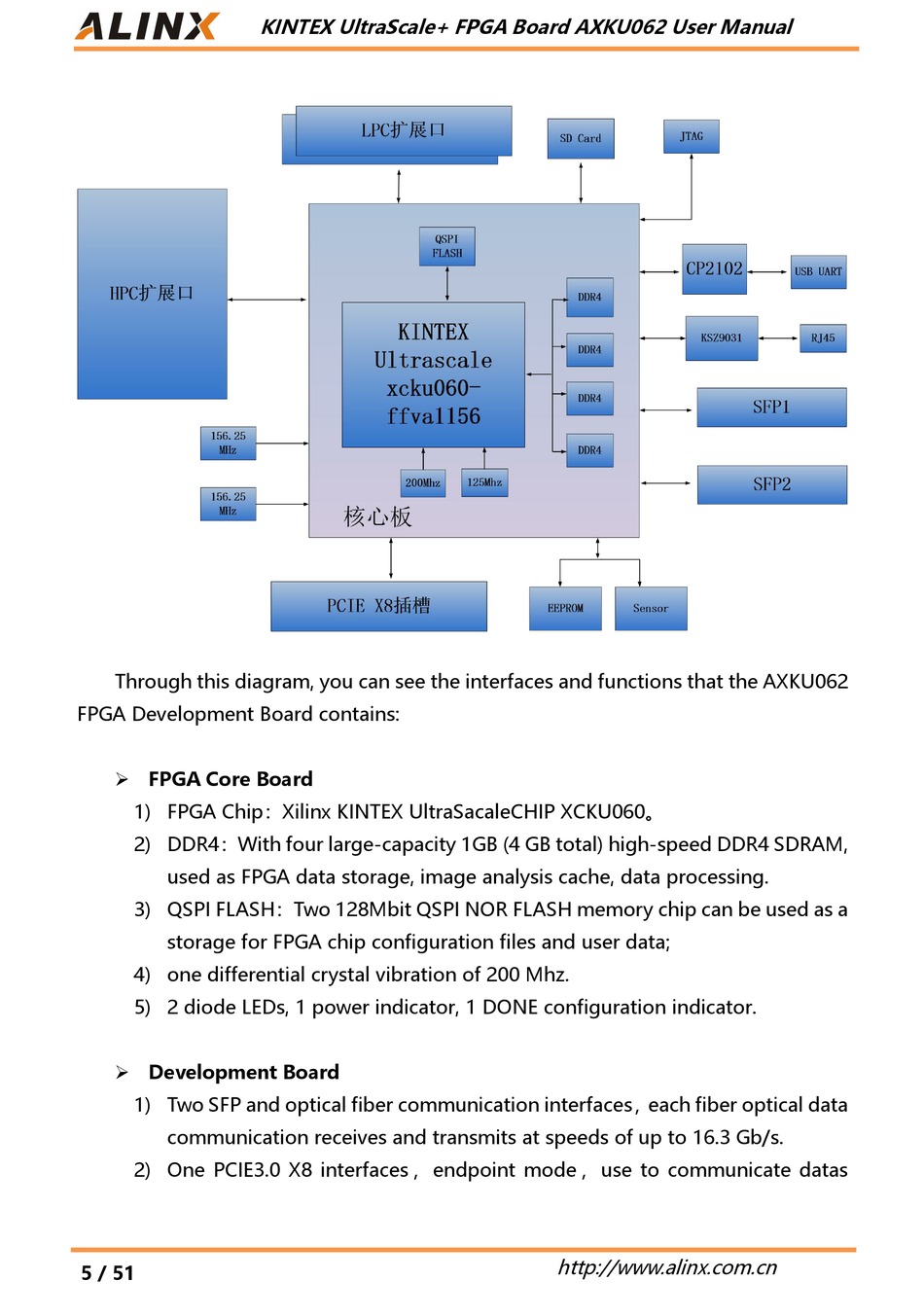

Through this diagram, you can see the interfaces and functions that the AXKU062
FPGA Development Board contains:
 FPGA Core Board
1) FPGA Chip：Xilinx KINTEX UltraSacaleCHIP XCKU060。
2) DDR4：With four large-capacity 1GB (4 GB total) high-speed DDR4 SDRAM,
used as FPGA data storage, image analysis cache, data processing.
3) QSPI FLASH：Two 128Mbit QSPI NOR FLASH memory chip can be used as a
storage for FPGA chip configuration files and user data;
4) one differential crystal vibration of 200 Mhz.
5) 2 diode LEDs, 1 power indicator, 1 DONE configuration indicator.
 Development Board
1) Two SFP and optical fiber communication interfaces，each fiber optical data
communication receives and transmits at speeds of up to 16.3 Gb/s.
2) One PCIE3.0 X8 interfaces ， endpoint mode ， use to communicate datas
