Clock pin assignment:

Part 2.7: LED

There is a red power indicator (PWR) and a configuration LED (DONE) on
the ACU5EV core board. When the core board is powered on, the power
indicator will light up; after the FPGA configuration program, the configuration
LED light will light up. The LED Schematic in the Core Board is shown in Figure
2-7-1:

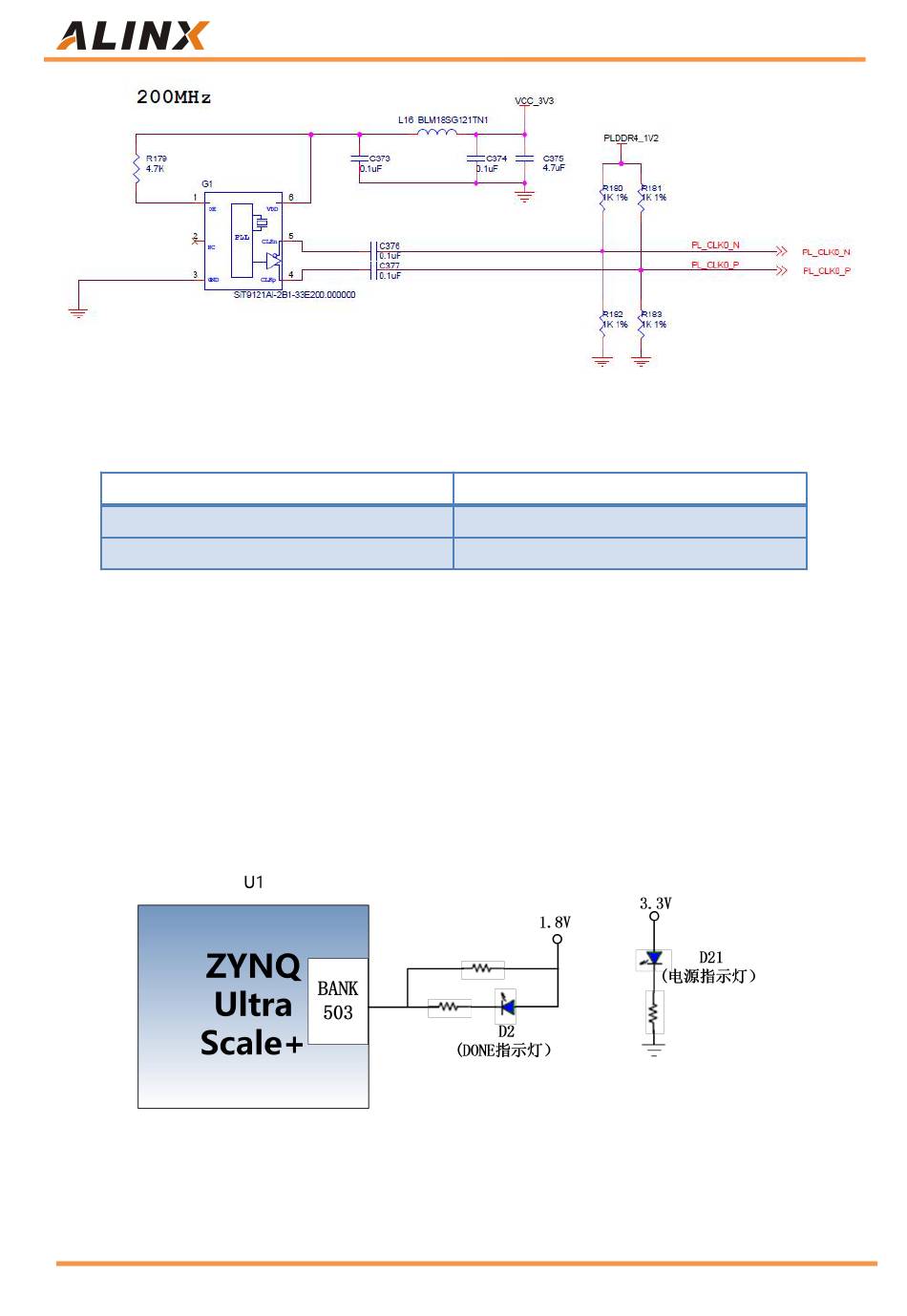

Figure 2-7-1: LED Schematic in the Core Board
25 / 58
Figure 2-6-4: PL system clock source
Signal Name
PL_CLK0_P
PL_CLK0_N
AXU5EVB-E User Manual
Pin
AE5
AF5
