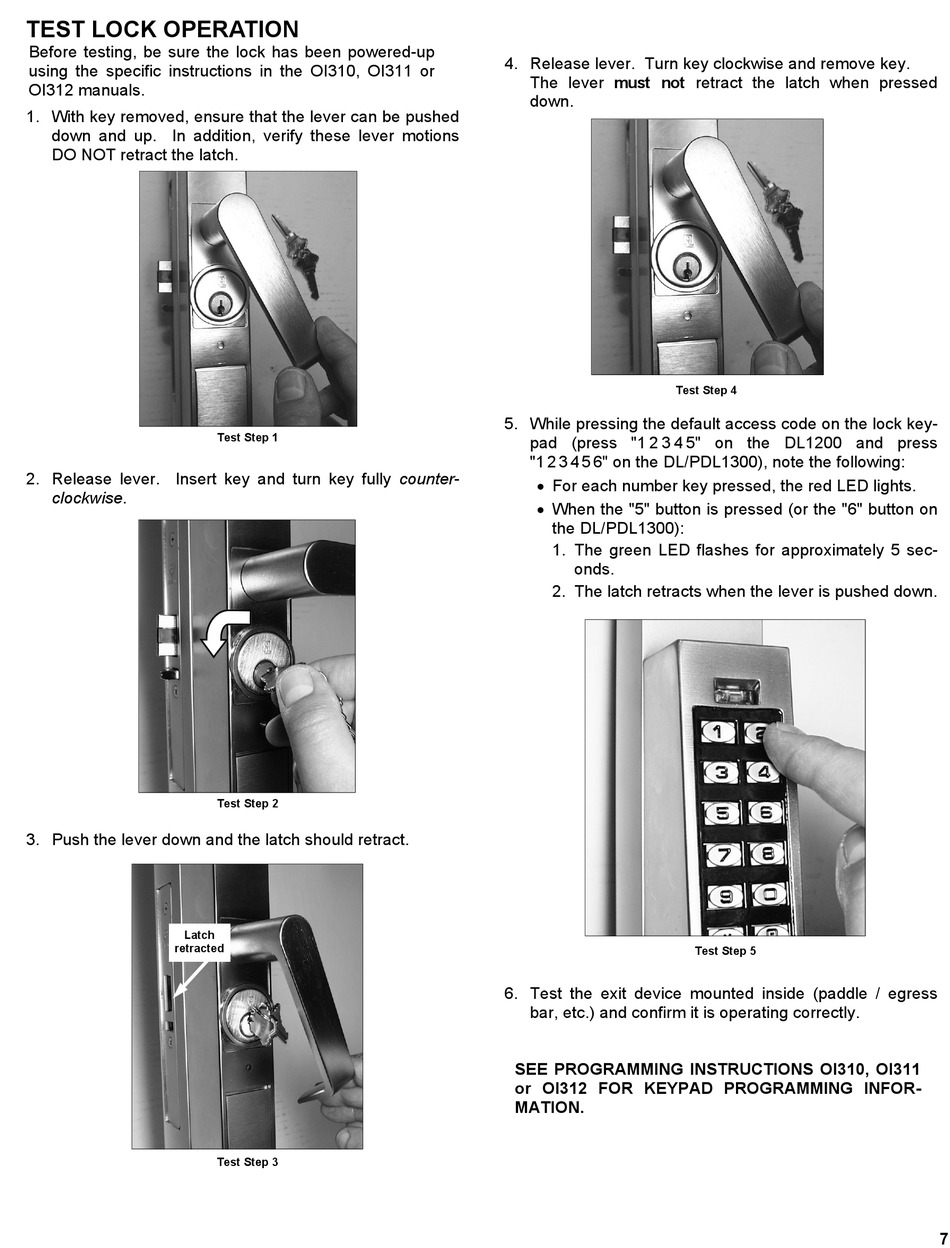

TEST LOCK OPERATION
Before testing, be sure the lock has been powered-up
using the specific instructions in the OI310, OI311 or
OI312 manuals.
1. With key removed, ensure that the lever can be pushed
down and up. In addition, verify these lever motions
DO NOT retract the latch.
2. Release lever. Insert key and turn key fully counter-
clockwise.
3. Push the lever down and the latch should retract.
Latch
retracted
Test Step 1
Test Step 2
Test Step 3
4. Release lever. Turn key clockwise and remove key.
The lever must not retract the latch when pressed
down.
Test Step 4
5. While pressing the default access code on the lock key-
pad (press "1 2 3 4 5" on the DL1200 and press
"1 2 3 4 5 6" on the DL/PDL1300), note the following:
 For each number key pressed, the red LED lights.
 When the "5" button is pressed (or the "6" button on
the DL/PDL1300):
1. The green LED flashes for approximately 5 sec-
onds.
2. The latch retracts when the lever is pushed down.
6. Test the exit device mounted inside (paddle / egress
bar, etc.) and confirm it is operating correctly.
SEE PROGRAMMING INSTRUCTIONS OI310, OI311
or OI312 FOR KEYPAD PROGRAMMING INFOR-
MATION.
Test Step 5
7
