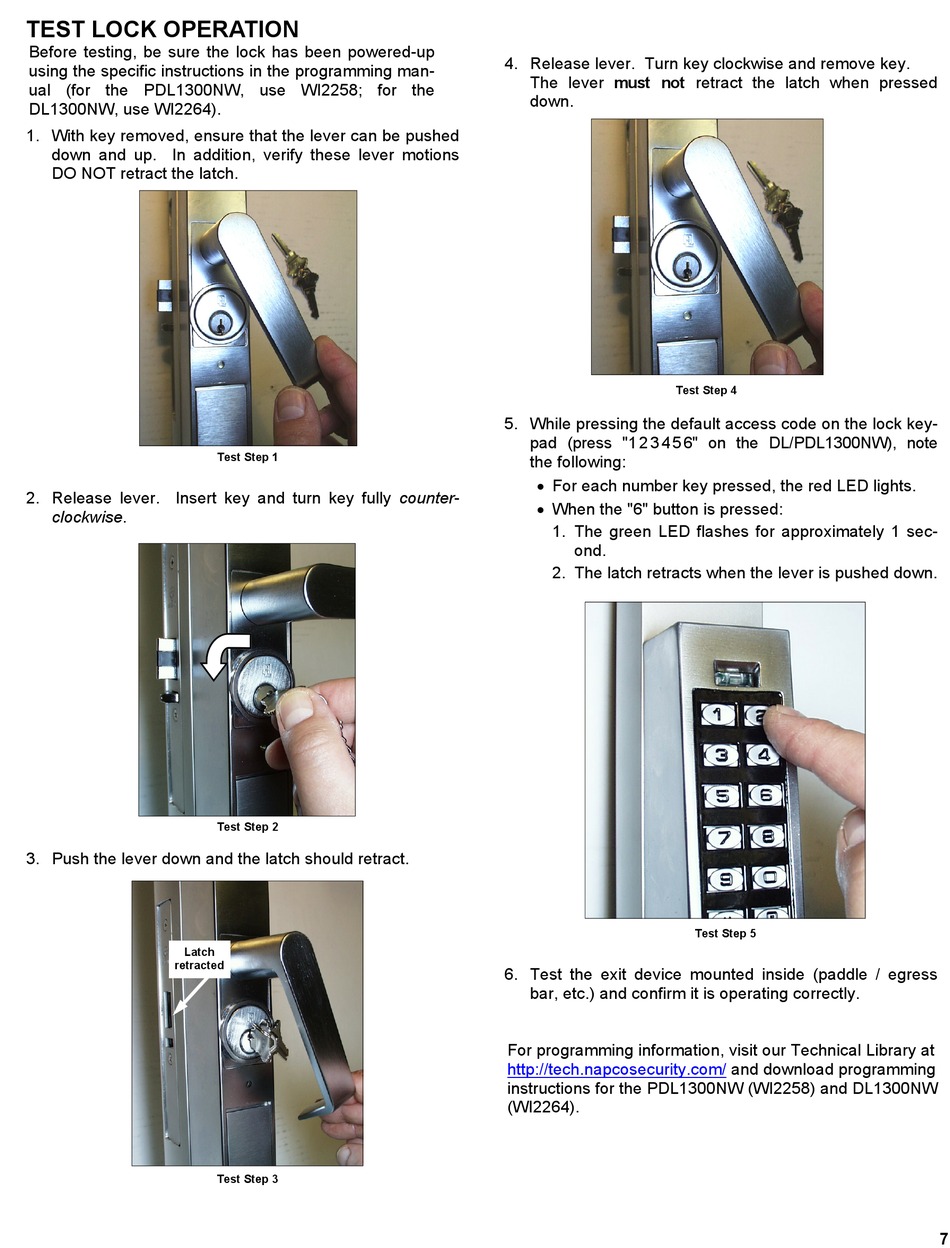

TEST LOCK OPERATION
Before testing, be sure the lock has been powered-up
using the specific instructions in the programming man-
ual (for the PDL1300NW, use WI2258; for the
DL1300NW, use WI2264).
1. With key removed, ensure that the lever can be pushed
down and up. In addition, verify these lever motions
DO NOT retract the latch.
2. Release lever. Insert key and turn key fully counter-
clockwise.
3. Push the lever down and the latch should retract.
Latch
retracted
Test Step 1
Test Step 2
Test Step 3
4. Release lever. Turn key clockwise and remove key.
The lever must not retract the latch when pressed
down.
Test Step 4
5. While pressing the default access code on the lock key-
pad (press "1 2 3 4 5 6" on the DL/PDL1300NW), note
the following:
 For each number key pressed, the red LED lights.
 When the "6" button is pressed:
1. The green LED flashes for approximately 1 sec-
ond.
2. The latch retracts when the lever is pushed down.
6. Test the exit device mounted inside (paddle / egress
bar, etc.) and confirm it is operating correctly.
For programming information, visit our Technical Library at
http://tech.napcosecurity.com/
instructions for the PDL1300NW (WI2258) and DL1300NW
(WI2264).
Test Step 5
and download programming
7
