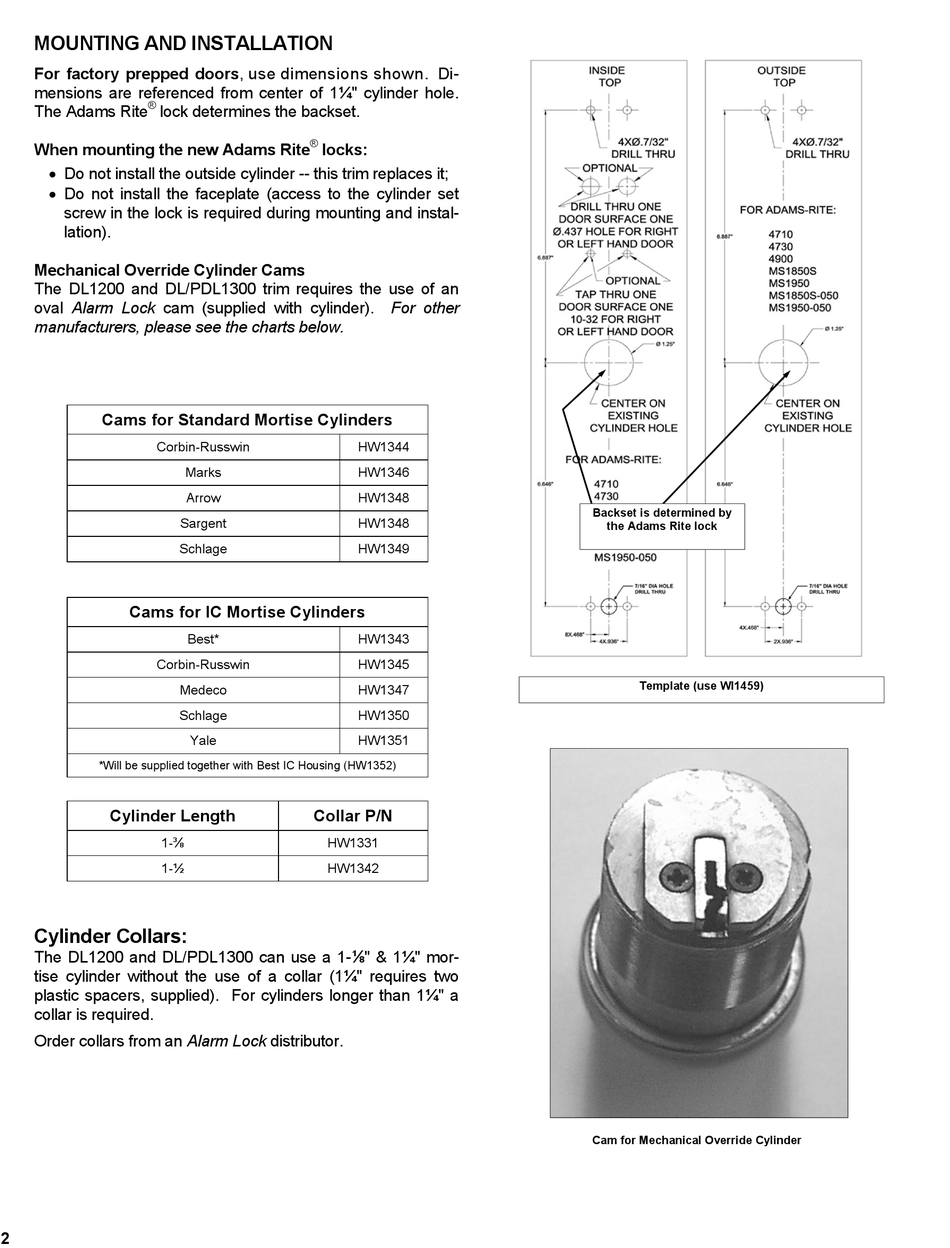

MOUNTING AND INSTALLATION

For factory prepped doors, use dimensions shown. Di-
mensions are referenced from center of 1¼" cylinder hole.
®
The Adams Rite lock determines the backset.
When mounting the new Adams Rite
 Do not install the outside cylinder -- this trim replaces it;
 Do not install the faceplate (access to the cylinder set
screw in the lock is required during mounting and instal-
lation).
Mechanical Override Cylinder Cams
The DL1200 and DL/PDL1300 trim requires the use of an
oval Alarm Lock cam (supplied with cylinder). For other
manufacturers, please see the charts below.
Cams for Standard Mortise Cylinders
Corbin-Russwin
Schlage
Cams for IC Mortise Cylinders
Corbin-Russwin
Medeco
Schlage
*Will be supplied together with Best IC Housing (HW1352)
Cylinder Length
1-⅜
1-½
Cylinder Collars:
The DL1200 and DL/PDL1300 can use a 1-⅛" & 1¼" mor-
tise cylinder without the use of a collar (1¼" requires two
plastic spacers, supplied). For cylinders longer than 1¼" a
collar is required.
Order collars from an Alarm Lock distributor.
2
®
locks:
HW1344
Marks HW1346
Arrow HW1348
Sargent HW1348
HW1349
Best* HW1343
HW1345
HW1347
HW1350
Yale HW1351
Collar P/N
HW1331
HW1342
Backset is determined by
the Adams Rite lock
Template (use WI1459)
Cam for Mechanical Override Cylinder
