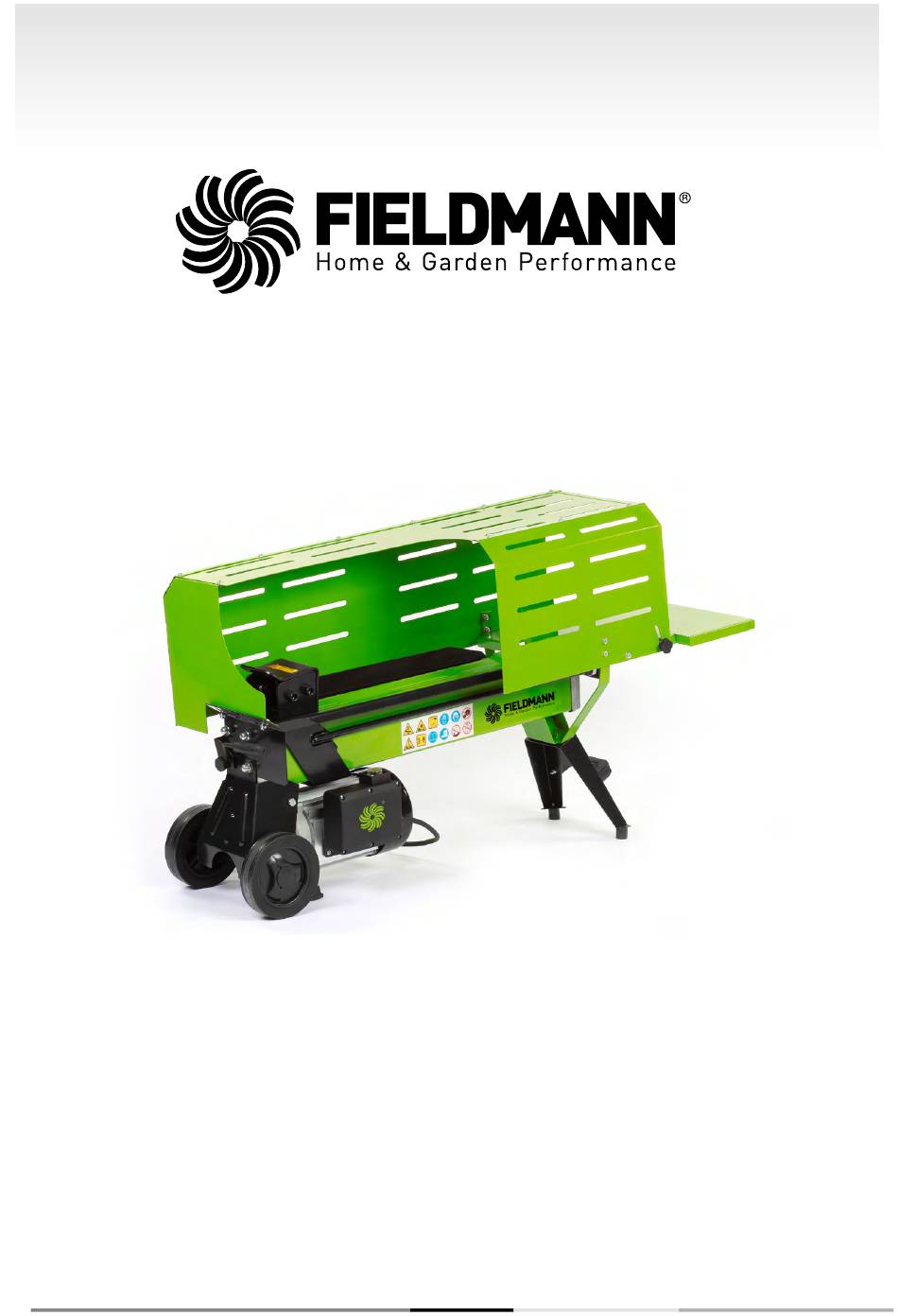

- Page 1 FZLS 1005H-E...
- Page 2 English ....................................3–22 Čeština .................................... 23–42 Slovenčina ..................................43–62 Magyarul ..................................63–82 Polski ....................................83–110 FZLS 1005H-E...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 5T LOG SPLITTER USER'S MANUAL TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .....................4 2. SAFETY INSTRUCTIONS ..........................5 3. SAFETY WARNINGS & CAUTIONS .....................8 4. APPLICATION CONDITIONS ......................10 5. ELECTRICAL REQUIREMENTS ......................10 6. SET UP AND PREPARATION FOR OPERATION ................11 7. -
Page 4: General Safety Instructions
Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZLS 1005H-E... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS 2. SAFETY INSTRUCTIONS ATTENTION! Acquaint yourself with all warnings and safety instructions and with operation instructions for the power tool. ATTENTION! Not adhering to warnings or safety instructions may result in injury by electrical shock, a fire and/or serious injury. - Page 6 Using power tools for tasks other than for which they are designed may lead to dangerous situations. FZLS 1005H-E...
- Page 7 SAFETY INSTRUCTIONS Service Have your power tool repaired by a qualified person that will use original spare parts. In this manner, the same level of safety will be ensured as before the repair of the power tool. Storage only move or store the power tool with the protective cover attached carefully clean and perform appropriate maintenance before storing the power tool before transporting the power tool, secure it against oil leakage, damage or injury hazard 5T LOG SPLITTER...
-
Page 8: Safety Warnings & Cautions
Be sure the extension cord is no longer than 10m and its section is no less than 2.5mm2 to allow sufficient current flow to the motor. Avoid use of free and inadequately insulated connections. Connections must be made with protected material suitable for outdoor use. FZLS 1005H-E... - Page 9 SAFETY WARNINGS & CAUTIONS AVOID ELECTRICAL SHOCK Check that the electric circuit is adequately protected and that it corresponds with the power, voltage and frequency of the motor. Check that there is a ground connection, and a regulation differential switch upstream. Ground the log splitter.
-
Page 10: Application Conditions
(RCD) which maximum residual current rated at 0.03A. Be sure the extension cord is no longer than 10m and the diameter of each line is no less than 2.5mm to allow sufficient current flow to the motor. FZLS 1005H-E... -
Page 11: Set Up And Preparation For Operation
SET UP AND PREPARATION FOR OPERATION 6. SET UP AND PREPARATION FOR OPERATION 1. Bolt the Support Leg to the Log Splitter, lift the log splitter by the handles at both ends and place it on a 60 – 75cm high, stable, flat and level work surface. 2. - Page 12 The setting was done by qualified mechanic with professional instru- ments. Unauthorized resetting will cause the hydraulic pump fail to output enough splitting pres- sure or RESULT IN SERIOUS INJURY AS WELL AS DAMAGE TO THE MACHINE. WIRING DIAGRAM PLUMBING DIAGRAM FZLS 1005H-E...
-
Page 13: Assembly
ASSEMBLY 7. ASSEMBLY Connect the log catcher supporting part , supporting leg and work table with screws. Connect the whole cover with 13 pieces of outside hex bolt M5*10,spring washers ø5 and gaskets ø5. 5T LOG SPLITTER USER'S MANUAL... - Page 14 4pieces of outside hex bolts M6*12,gasket ø6,lock nut M6. Then connect the log catcher with the cover by 2 pieces of outside hex bolts M6*12,gasket ø6,lock nut M6 and 2 pieces knobs and gasket ø6. Adjust the height of wood catcher by 2 pieces knob M6. FZLS 1005H-E...
-
Page 15: Log Splitter Operation
LOG SPLITTER OPERATION 8. LOG SPLITTER OPERATION This log splitter is equipped with “ZHB” control system that requires to be operated by both hands of the user – Left hand controls the hydraulic control lever while right hand controls the pushbutton switch. The log splitter will freeze upon absence of either hand. -
Page 16: Freeing A Jammed Log
Repeat above procedure with sharper slope wedge woods until the log is completely freed. Do not try to knock the jammed log off. Knock- ing about will damage the machine or may launch the log and cause accident. FZLS 1005H-E... -
Page 17: Replacing Hydraulic Oil
REPLACING HYDRAULIC OIL 10. REPLACING HYDRAULIC OIL Replace the Hydraulic oil in the log splitter after every 150 hours of use. Take following steps to replace it. Make sure all moving parts stops and the log splitter is unplugged. Unscrew Oil Drain Bolt with Dipstick to remove it. Turn the log splitter on the Support Leg side over an 3.5 liters capacity container to drain the hydraulic oil off. -
Page 18: Trouble Shooting
Tighten the Bleed Screw up before moving ing the log splitter. the log splitter. Oil Drain Bolt with Dipstick is not tight. Tighten the Oil Drain Bolt with Dipstick. Hydraulic Control Valve Assembly and / or Contact the dealer. seal(s) worn. FZLS 1005H-E... -
Page 19: Specifications
SPECIFICATIONS 12. SPECIFICATIONS Model Number FZLS 1005H-E Motor 230V 50Hz 2000W IP54 Diameter 5 25cm Log Capacity Length 52cm Splitting Force Hydraulic Oil Capacity Length 1320mm Overall Size Width 405mm Height 650mm Weight 53Kg The diameter of the log is indicative – a small log can be difficult to split when it has knobs or a particularly tough fiber. -
Page 20: Disposal
The machine and its accessories are manufactured from various materials, e.g. metal and plastic. Take damaged parts to a recycling centre. Inquire at the relevant government department. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make these changes. FZLS 1005H-E... -
Page 21: Declaration Of Conformity
14. DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product / brand: Electric Log Splitter / FIELDMANN Type / model: FZLS 1005H – E as factory model HLS5T-52 AC 230 V, 50Hz, 2000W, working force 5 ton, max pressure 20 Mpa,... - Page 23 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon ruku trvání 24 měsíců od převzetí výrobku kupu 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
- Page 24 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 25 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
- Page 26 Garantijos taisyklés Warunki gwarancji Produkt obj�ty jest 24 - miesi�cznij gwarancjij, po Šiam gaminiui suteikiama 24 ménesi4 nuo isigi jimo datos garantija. Garantija apsiriboja žemiau czqwszy od daty zakupu przez klienta. Gwarancja jest pateikiamomis Sijlygomis. Garantija skirta tik ga ograniczona tylko do przedstawionych dalej warun miniams, skirtiems buitiniam naudojimui.
