Table of Contents ELECTRIC SCARIFIER USER'S MANUAL Dear customer, thank you very much for the trust that you have expressed! Before putting this machine into operation, it is imperative to read this user's manual! In it, you will fi nd all the instructions for normal operation and for achieving a long lifetime of the machine. -
Page 3: General Safety Instructions
Do not work in the rain or in unfavourable climatic conditions! ATTENTION! The blade of the scarifi er continues to rotate for some time after it is turned off! Keep a safe distance! Attention, rotating blades! FZV 4003 E... - Page 4 Symbols Attention! Before putting into operation, carefully read the user's manual and the general safety instructions! Do not work in the rain or in unfavourable climatic conditions! Attention, the blade of the scarifi er continues to rotate for some time after it is turned off! Keep a safe distance! Attention, rotating blades! Sharp blade/s.
-
Page 5: Safety Instructions
Do not work with the scarifi er near the edges of swimming pools or garden ponds. Please adhere to all local restrictions related to noise levels. Interrupting work ATTENTION! Never leave the electric scarifi er in the work area without supervision. FZV 4003 E... -
Page 6: Electrical Safety

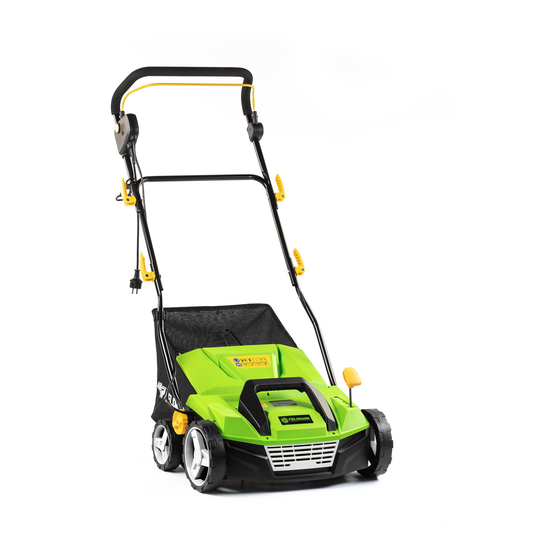

Intended use The FZV 4003 E Electric Scarifi er is designed for aerating lawns and grass areas in private gardens and yards. It is not intended for use in public facilities, parks, sports fi elds, on roads, in agriculture or forestry. -
Page 7: Description Of The Machine (Fig. 1)
5 Top part of the handle qf Bottom handle screw 6 Middle part of the handle qh Handle screw 7 Bottom part of the handle qj Handle height adjustment thorx 8 Working depth adjustment control qk Handle screw washer 9 Basket FZV 4003 E... -
Page 8: Assembling The Machine
Assembly of the machine 6. ASSEMBLING THE MACHINE Attach the handle’s bottom parts (fi g.2, point 7) using the screw (point 14). Adjust the required handle height using the XZN spline (point 17). 2. Screw on the handle’s middle part with the power cord safety clamp attached using the fast coupling lever and the handle screw (fi... - Page 9 Check that the collection basket is seated cor- rectly. NOTE: For use without the grass catcher, the lawnmower may be used without the collection basket with the protective cover qa in the lower position. FZV 4003 E...
-
Page 10: Replacing Blades
Blade replacement 7. REPLACING BLADES DANGER! The cylinders may cause injuries! Prior to replacement, disconnect the machine from the power grid and wait for the cylinder to come to a stop. When replacing, wear work gloves. Screw out bolt 1 on the underside of the chassis (fi... -
Page 11: Setting Up The Scarifier
Do not turn on and off in rapid succession. Starting Press and hold the safety button 1. Pull the starting lever 2 to the handle. 2. Release the safety button. Turning off Release the starting lever 2. FZV 4003 E... -
Page 12: Maintenance
Maintenance / Scarifi cation / Aeration 10. MAINTENANCE Cleaning the scarifi er ATTENTION! Danger! A rotating blade may cause injuries. ATTENTION! Prior to maintenance, disconnect the machine from the power grid and wait for the scarifi ca- tion cylinder to come to a stop. ATTENTION! While performing maintenance use work gloves. -
Page 13: Technical Specifications
Weight ....................................... 11,5 kg Protection class ....................................IPX4 Cylinder operating speed ..............................3 000 rpm Sound pressure level ......................... L = 85,56 dB(A) K=3 dB(A) Guaranteed sound power level ..........................L = 104 dB(A) Vibrations ..............................5,508 m/s K=1,5 m/s FZV 4003 E... -
Page 14: Disposal
Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The power tool and its accessories are manufactured from various materials, e.g. metal and plastic. - Page 15 FZV 4003 E...
