    Table of Contents Petrol cultivator INSTRUCTIONS FOR USE Thank you for purchasing this petrol cultivator. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety information..........................4 Packaging ..................................4 User's manual ................................4...

  • Page 4: General Safety Instructions

    General safety regulations 1. GENERAL SAFETY REGULATIONS IMPORTANT SAFETY NOTICE Unpack the product carefully and do not throw away any of the packaging until you have found all the parts of the product. Store the machine in a dry place out of children’s reach. Read all the warnings and instructions.

  • Page 5: Explanation Of Instruction Labels On The Machine

    Explanation of instruction labels on the machine 2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Rotating parts! The cultivator blades stop only after the engine has been switched off.
  • Page 6 Explanation of instruction labels on the machine Indicates that there is a risk of injury to persons, death or damage to the machine if instructions are not followed. Use ear protection. Use eye protection. Use breathing protection. Always maintain a distance from moving parts. Travel along the slope on contours, not up and down.

  • Page 7: Description Of The Cultivator

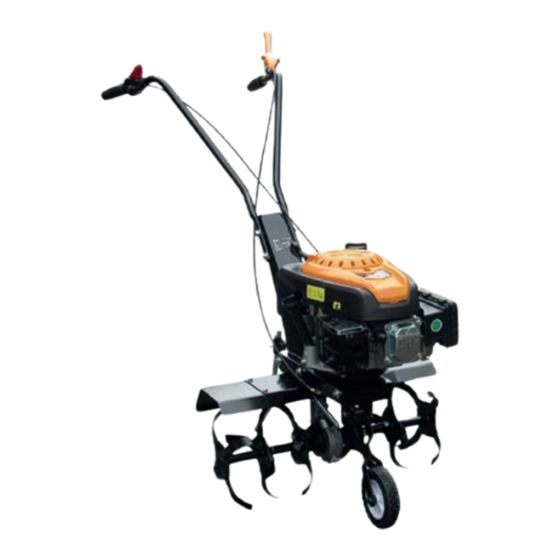

    Description of the cultivator | Assembly/Preparation 3. DESCRIPTION OF THE CULTIVATOR (Fig. 1) 1. Starting cord Fig. 1 2. Throttle lever/switch 3. Blade engagement lever 4. Metal handles 5. Drag stake 6. Cultivation blades 7. Transport wheel 8. Air filter 4.

  • Page 8: Assembling The Cultivator

    Assembling the cultivator 5. ASSEMBLING THE CULTIVATOR IMPORTANT INFORMATION: Carefully unfold the cultivator handle, being careful not to pinch or damage the cultivator's control cables. Caution! Assemble the cultivator on a level surface. INSTALLING THE DRAG STAKE 1. Slide the drag stake (Fig. 2, point 1) through the prepared opening at the rear of the cultivator and secure it in at the required height using a cotter pin (Fig.2, point 2).

  • Page 9: Before Starting The Cultivator

    Before starting the cultivator 6. BEFORE STARTING THE CULTIVATOR ADDING OIL The cultivator is supplied without motor oil. Before first start up, add motor oil SAE30 or 15W-40 (approx 600 ml) according to the following instructions. 1. When pouring in the oil, place the cultivator on a level Obr.

  • Page 10: Before Turning On The Petrol Cultivator

    Before turning on the petrol cultivator | Controlling and operating the cultivator BEFORE TURNING ON THE PETROL CULTIVATOR ATTENTION: Never remove or short-circuit the safety features mounted on the cultivator (for example the starting lever safety mechanism). ATTENTION: The cultivation blades will continue to rotate for a short time after it is turned off! When turning it on, make sure that your feet are at a safe distance from the cultivation blades.

  • Page 11: Support Wheel And Drag Stake

    Controlling and operating the cultivator SUPPORT WHEEL AND DRAG STAKE For moving the cultivator, only use the support wheel. Prior to starting work, fold the wheel up (Fig. 8). However, it may also be used during work to control the depth of cultivation. The drag stake helps work by holding the cultivator back.

  • Page 12: Changing The Motor Oil

    Controlling and operating the cultivator | Safety instructions To break up clumps of soil, allow the cultivator to pull your hands to the end of their reach and then firmly pull the cultivator back towards yourself. You will achieve the best results by repeatedly allowing the cultivator to move forward and then pulling it back towards yourself again.

  • Page 13: Maintenance

    Safety instructions | Maintenance Never start the cultivator in enclosed or poorly ventilated areas where fumes could accumulate. Emissions from the engine contain carbon monoxide, which is life threatening. Work only during sufficient light conditions (in daylight or sufficient artificial lighting). Do not use the cultivator when it is raining.

  • Page 14: Servicing

    Maintenance also the location of spare fuel storage are free of plant remains, leaves or excessive amounts of lubricant. Regularly inspect the condition of the protective blade cover. Drain the fuel in a well ventilated area when the engine has cooled down. When removing or installing the cultivation blades, use thick work gloves.

  • Page 15: Technical Information

    Petrol - lead-free, at least 95 octane Oil tank volume 0,6 l Recommended oil SAE30, 15W-40 Working width 36cm - FZK 6015 B/59cm FZK 6115 B Rotation speed of axle with blades 140 rpm Blade diameter / max. working depth 26 cm Declared noise level...

  • Page 16: Declaration Of Conformity

    Declaration of conformity Declaration of Conformity Product/ brand: Gasoline Powered Motor Hoe FIELDMANN Type/ model: FZK 6015-B as factory model FTQ360 139 cm ; 2,2 kW/ 3000 min , Cutting width 360mm, LpA 72,8dB(A), LwA 93dB(A) Manufacturer: FAST ČR, a.s.
  • Page 17 Declaration of conformity Declaration of Conformity Product/ brand: Gasoline Powered Motor Hoe FIELDMANN Type/ model: FZK 6115-B as factory model FTQ590 139 cm ; 2,2 kW/ 3000 min , Cutting width 590mm, LpA 72,8dB(A), LwA 93dB(A) Manufacturer: FAST ČR, a.s.

  • Page 18: Disposal

    Disposal 13. DISPOSAL INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERI- Dispose of used packaging material at a site designated for waste in your municipality. The appliance and its accessories are manufactured from various materials, e.g. metal and plastic. Take damaged parts to a recycling centre.
