6.3. Packaging Specifications

The module adopts carrier tape packaging and details are as follow:

6.3.1. Carrier Tape

Dimension details are as follow:
Table 32: Carrier Tape Dimension Table (Unit: mm)
W P
32 20
FC80A_Hardware_Design

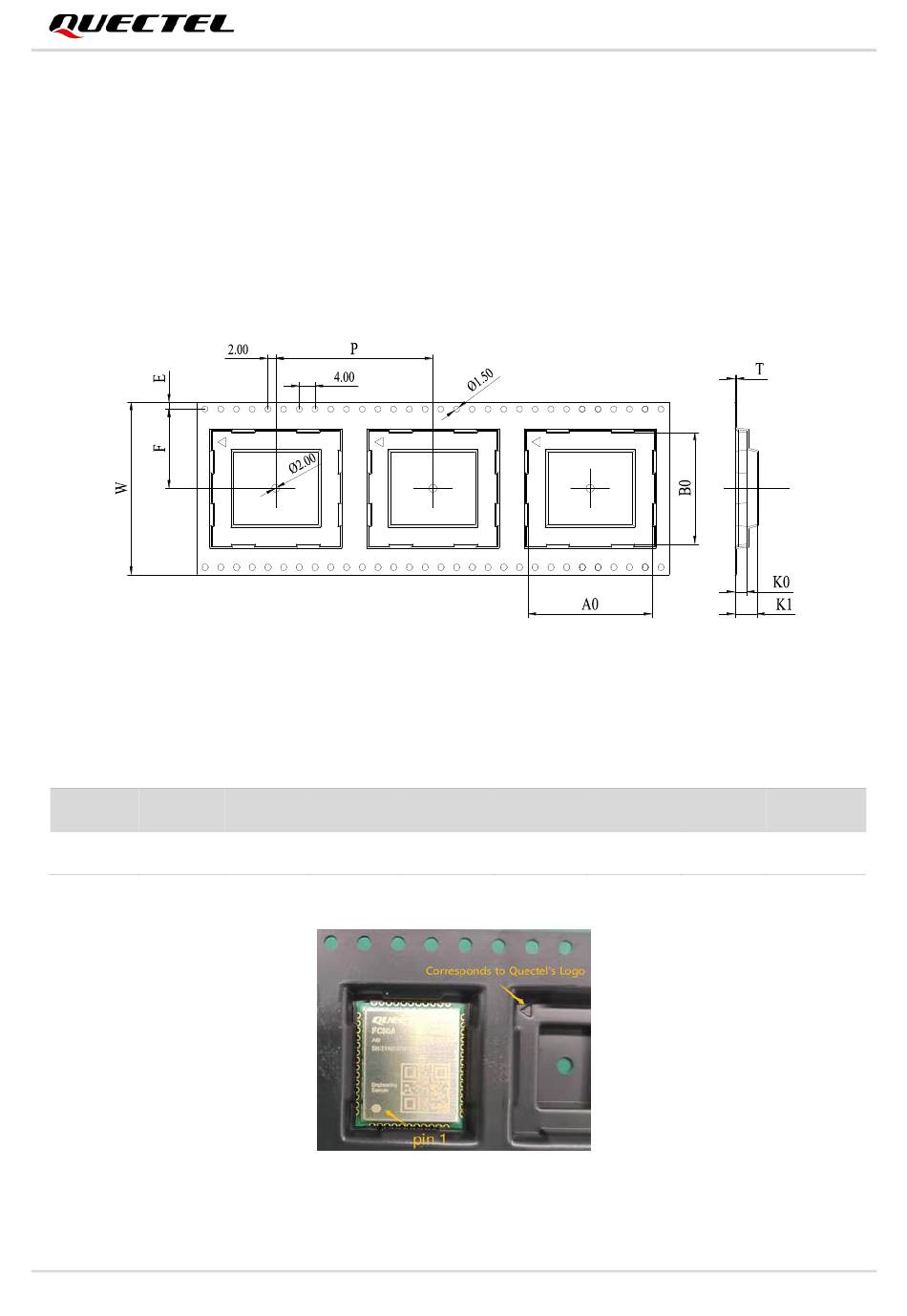

Figure 13: Carrier Tape Dimension Drawing
T A0
0.4 13.4
Figure 14: Package Sketch Map
B0 K0
15.4 2.7
Wi-Fi&Bluetooth Module Series
K1 F
5.4 14.2
E
1.75
