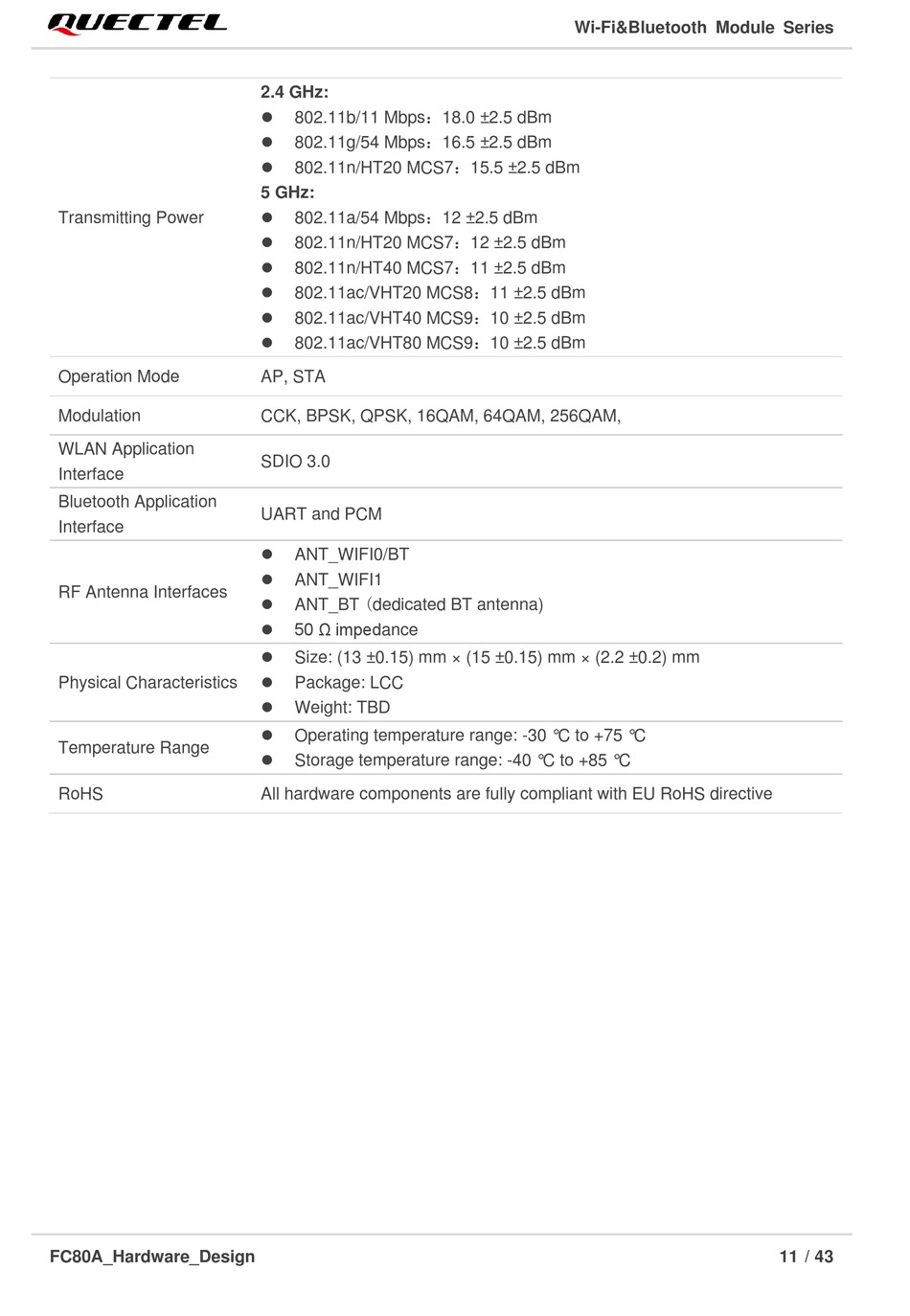

Quectel FC80A User Manual page 12

Transmitting Power
Operation Mode
Modulation
WLAN Application
Interface
Bluetooth Application
Interface
RF Antenna Interfaces
Physical Characteristics
Temperature Range
RoHS
FC80A_Hardware_Design
2.4 GHz:
⚫
802.11b/11 Mbps：18.0 ± 2.5 dBm
⚫
802.11g/54 Mbps：16.5 ± 2.5 dBm
⚫
802.11n/HT20 MCS7：15.5 ± 2.5 dBm
5 GHz:
⚫
802.11a/54 Mbps：12 ± 2.5 dBm
⚫
802.11n/HT20 MCS7：12 ± 2.5 dBm
⚫
802.11n/HT40 MCS7：11 ± 2.5 dBm
⚫
802.11ac/VHT20 MCS8：11 ± 2.5 dBm
⚫
802.11ac/VHT40 MCS9：10 ± 2.5 dBm
⚫
802.11ac/VHT80 MCS9：10 ± 2.5 dBm
AP, STA
CCK, BPSK, QPSK, 16QAM, 64QAM, 256QAM,
SDIO 3.0
UART and PCM
⚫
ANT_WIFI0/BT
⚫
ANT_WIFI1
⚫ ANT_BT (dedicated BT antenna)
⚫ 50 Ω impedance
⚫
Size: (13 ± 0.15) mm × (15 ± 0.15) mm × (2.2 ± 0.2) mm
⚫
Package: LCC
⚫
Weight: TBD
⚫
Operating temperature range: -30 ° C to +75 ° C
⚫
Storage temperature range: -40 ° C to +85 ° C
All hardware components are fully compliant with EU RoHS directive
