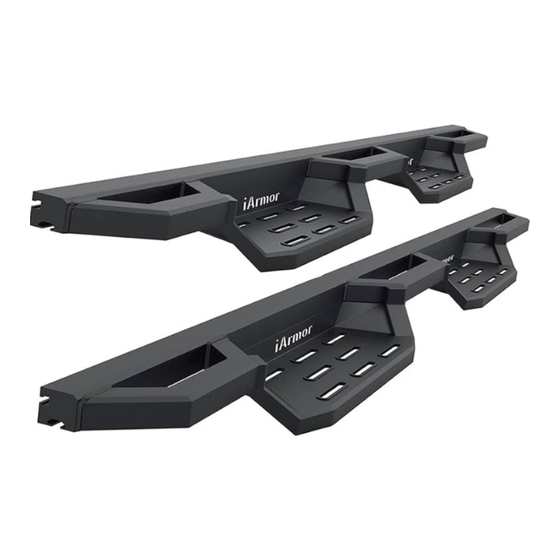

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED
PART LIST
Driver Front Sup-
port Bracket (DFS)
Pedal
(DCM/DRM)
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Front
Mounting
Bracket
(DFM)
Driver Center/
Rear Mounting
Bracket (DCM/
DRM)
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger
Front
Mounting
Bracket (PFM)
Passenger
Center/Rear
Mounting
Bracket
(PCM/PRM)
1
PART#: IA-N295H
Required
6-7
16-18
31-32
56-58
92-94
Passenger
Front Support
Bracket (PFS)
(PCM/PRM)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
√
√
X
X
X
Pedal
Advertisement
Related Manuals for iArmor EDGE IA-N295H
Summary of Contents for iArmor EDGE IA-N295H
- Page 1 ® IARMOR EDGE™ PART#: IA-N295H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-30mm Hex Bolts M6 Large Flat Washers M8 Large Flat Washers M6 Nylon Lock Nuts M8 Lock Washers M8X1.25-20 T-Bolts M8 Nylon Lock Nuts M8 Plastic Washers...
- Page 3 ® STEP 3 The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Remove the plastic plugs from each mounting location. Directly above each threaded insert is a top mounting location, (Fig 2).
- Page 4 ® STEP 6 Move to the Passenger Side Center Mounting Location. Install (1) M8X1.25-30 Hex Bolt the Passenger Center Mounting Bracket (PCM/PRM) with (2) (2) M8 Large Flat Washers M8X1.25-30 Hex Bolts, (2) M8 Lock Washers and (2) M8 Large (1) M8X1.25 Nylon Lock Nut...
- Page 5 ® STEP 10 M8 Plastic Washer Level and adjust the assembled Step Bar properly and tighten all hardware. M8X1.25-20 T-Bolt Move to the other side of the vehicle. Repeat Steps 2-9 for the other Side Step Bar installation. (Fig 6) Thread (1) M8 Plastic Washer on each T-Bolt Before In-...
- Page 6 ® (5) M8 Plastic Washers (5) M8X1.25-20mm T-Bolts (5) M8 Large Flat Washers (5) M8 Nylon Lock Nuts Front Bottom View (1) M6X1-20mm Square Head Bolt (1) M6 Large Flat Washer (1) M6 Nylon Lock Nut (Fig 9) M6 Square...
