11.2.2
1003680-US-4.0
Extension units EXU-SI / EXU-SA
Installation

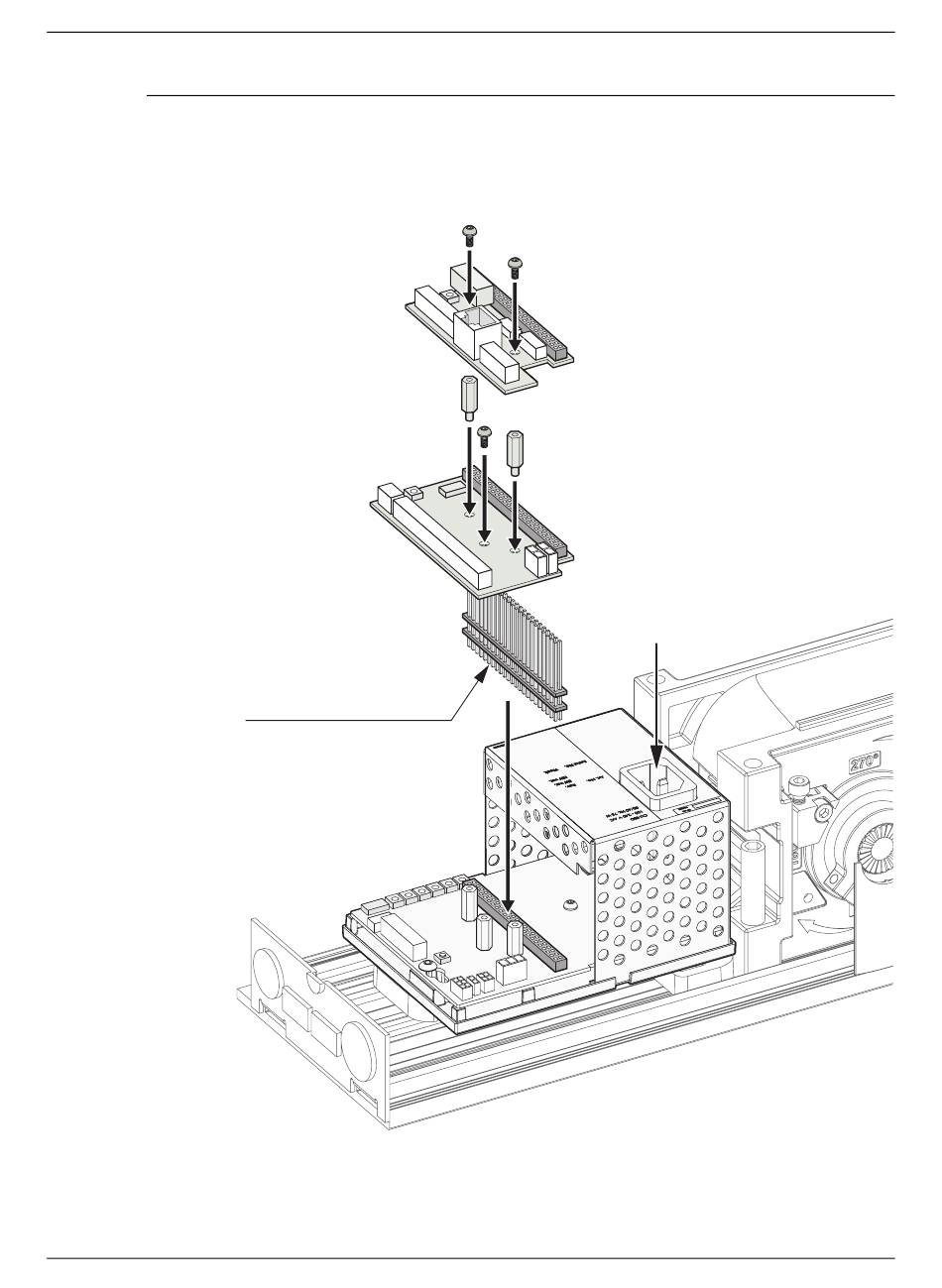

To extend the functions, the extension units can be mounted on top of the control unit
CU-ESD, separately or combined.
EXU-SA
EXU-SI
Tag strip
long 2 pcs EXU
short 1 pc EXU
CU-ESD
Issue 2007-10-11
Torx T10
5 mm nut driver
Mains contact
Electrical connection
33
