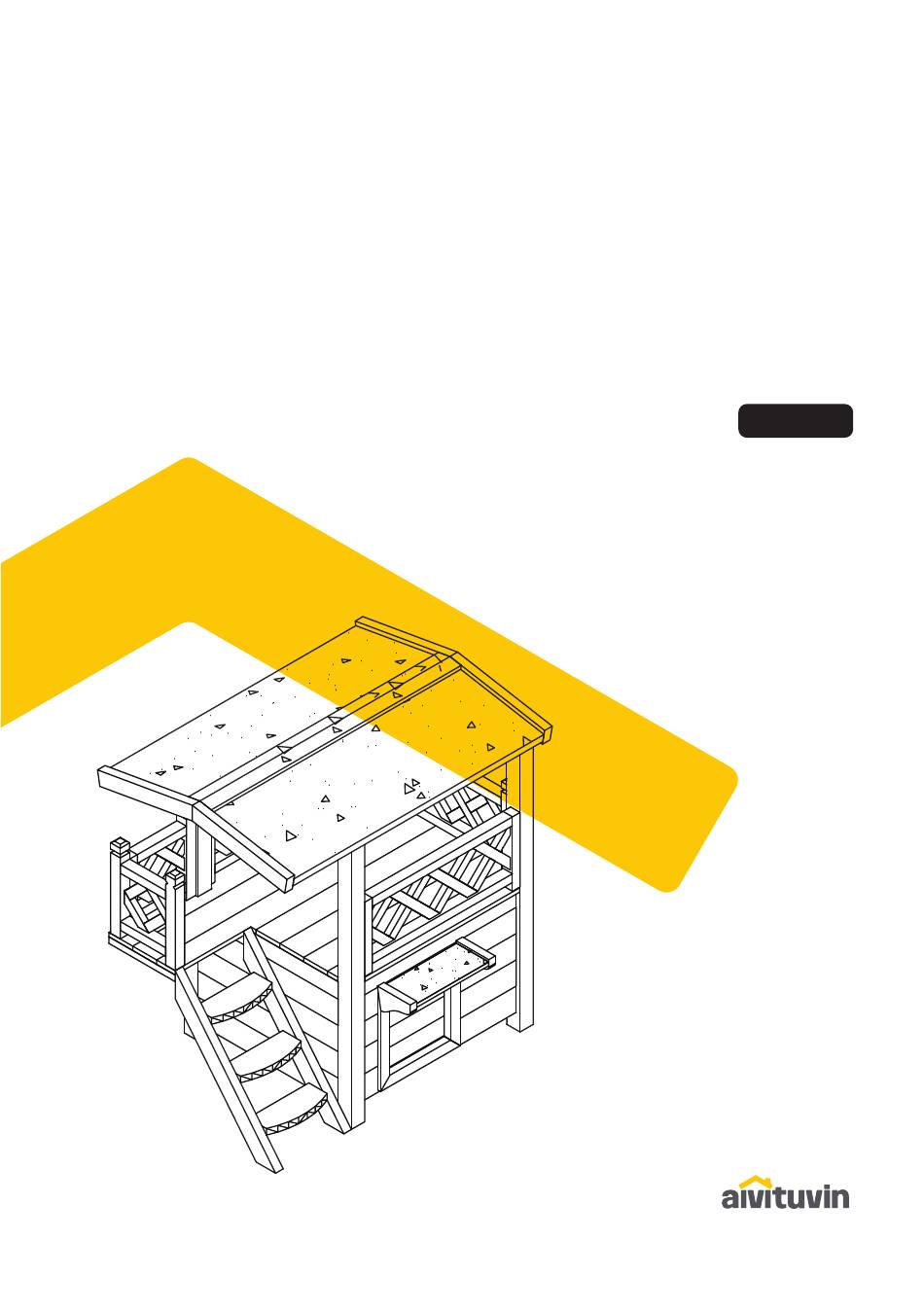

- Page 1 INSTRUCTION MANUAL AIR09-B www.aivituvin.com...
- Page 2 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 3: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M3.5x50mm SCREW M6.0x65mm BOLT 14PCS+1 spare 8PCS M3.5x40mm SCREW M3.5x35mm SCREW 4PCS+1spare 19PCS+1 spare M3.5x25mm SCREW M3.5x20mm SCREW 6PCS+1spare 8PCS+1 spare... - Page 4 PARTS Front panel Back panel Side panel 2PCS Roof Bottom panel of huntch Bottom panel of pen 2PCS Roof Left panel of fence Short panel of back fence...
- Page 5 PARTS Front and back panel of Right panel of fence Ramp step fence 3PCS 2PCS Roof of front panel Right ramp frame Left ramp frame Roof cap...
-
Page 6: Product Assembly
PRODUCT ASSEMBLY Attach the roof of front panel Part L to the Part A with 2xP6 screws. Connect Part A, Part B and two pieces of Part C with 8xP1 bolts. - Page 7 PRODUCT ASSEMBLY Put down two pieces of bottom panels Part D into the hutch. Attach bottom panel of the pen Part E to the hutch with 6xP6 screws.
- Page 8 PRODUCT ASSEMBLY Attach front panel of fence Part I with 4xP2 screws. Attach right panel of fence Part J with 4xP2 screws.
- Page 9 PRODUCT ASSEMBLY Attach back panel of fence Part I with 4xP2 screws. Attach short panel of back fence Part H with 2xP3 screws.
- Page 10 PRODUCT ASSEMBLY Attach short panel of left fence Part G by 2xP3 screws and 2xP2 screws. Attach Part M, Part N and three pcs of Part K with 12xP4 screws.
- Page 11 PRODUCT ASSEMBLY Attach the ramp to the hutch with 3xP4 screws. ① Attach the roof Part F and Part F1 with 4xP4 screws. ② Notice to level up the same line with two roof.
- Page 12 PRODUCT ASSEMBLY Screw the roof cap Part O into the roof with 6xP5 screws.
-
Page 13: Help Center
Once the items are received, opened, and deemed to be faulty or other problems. Pls contact us at service@aivituvin.com for the solution. We will feedback to you within 24 hours. If you are happy with the shopping ,welcome to share photos and thoughts with others . - Page 14 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
