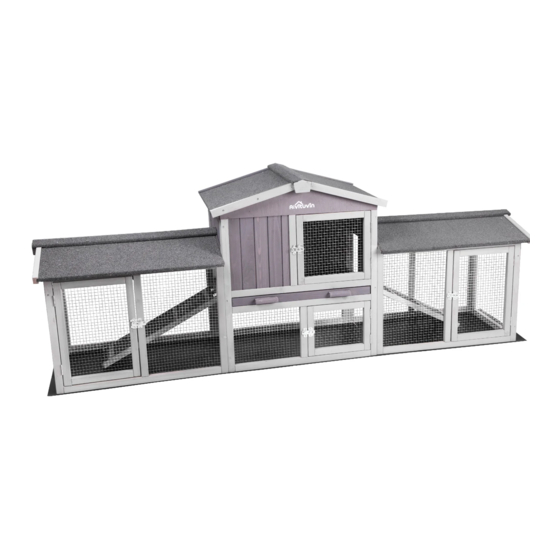

- Page 1 INSTRUCTION MANUAL AIR 04-B www.aivituvin.com...
- Page 2 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 3: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M3.5x40mm SCREW M3.5x50mm SCREW 8PCS+1spare 16PCS+1spare M3.5x25mm SCREW M3.5x35mm SCREW 12PCS+1spare 28PCS+1spare M3.0x16mm SCREW M3.0x10mm SCREW 8PCS+1spare 2PCS+1spare... - Page 4 PARTS Right side panel Front panel Back panel Left side panel Front panel of pen 1 Tray Back panel of pen 1 Back panel of pen 2 Front panel of pen 2...
- Page 5 PARTS Pen roof Side panel of pen Ramp 2 PCS 2PCS 2PCS Pen roof Splayed supporting bar Wooden hutch roof 2PCS 2PCS 2PCS Folding metal feeder Wooden hutch roof cap Pen roof cap 2PCS...
- Page 6 PARTS Put in the divider Part D 3PCS...
- Page 7 PARTS Pen 2 Hutch E2 （ Front panel of pen 2) Pen 1 E1 （ Front panel of pen 1) Pen 1 Pen 2 F2 （ Back panel of pen 1) F1 （ Back panel of pen 2)
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Attach a Part B to Part C1 and Part C2 by 4pcs of screws. ① Attach front panel Part A to two side panels by 4pcs of P2 screws. ② Screw the feeder Part N inside the back panel Part B by 2pcs of P6 screws. - Page 9 PRODUCT ASSEMBLY Screw the ramp Part H to the left, right bar by 4pcs of P5 screws on each side. ① Assemble the left and right pen. ② Conncet the front panel E2, back panel F2 and side panel G by 2pcs of P2 screws on each side. ③ Repeat this step on the left pen.
- Page 10 PRODUCT ASSEMBLY ① Screw the splayed supporting bar Part K to the right side panel by 2pcs of P3 screws. ② Repeat this step on the left side. ① Attach the pen to the hutch on the front and back panel by 2pcs of P1 screws on each side.
- Page 11 PRODUCT ASSEMBLY ① Attach the two roof Parts J to the hutch by 8pcs of P3 screws. ② Notice to level up the same line with the two roof Parts. ① Attach the two pen roof Parts I1 and I2 to the pen by 8pcs of P3 screws.
- Page 12 PRODUCT ASSEMBLY Screw the roof cap Part L into the roof by 4pcs of P4 screws. ① Screw the roof cap Part M into the roof by 4pcs of P4 screws. ② Repeat this step on the left side.
- Page 13 PRODUCT ASSEMBLY If the hutch is putting indoor, after finish the whole hutch, put the 3pcs of PVC layer together then put the hutch above the layer. LOCKED OPEN...
-
Page 14: Help Center
Once the items are received, opened, and deemed to be faulty or other problems. Pls contact us at service@aivituvin.com for the solution. We will feedback to you within 24 hours. If you are happy with the shopping ,welcome to share photos and thoughts with others . - Page 16 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
