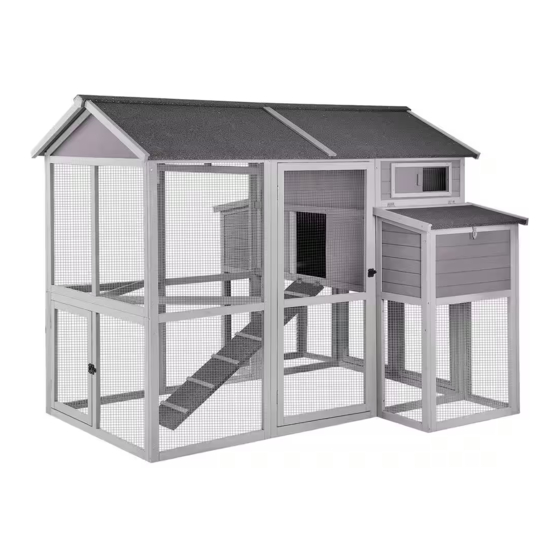

Summary of Contents for aivituvin AIR 48
- Page 1 NSTRUCTION MANUAL AIR 48 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 60MIN. ASSEMBLY HARDWARE M4.0x40 mm SCREW M3.5x60 mm SCREW 36PCS+1 spare 14PCS+1 spare M3.5x55 mm SCREW M3.5x35 mm SCREW 8PCS+1 spare 28PCS+1 spare M3.5x25 mm SCREW M3.0x16 mm SCREW 26PCS+1 spare 12PCS+1 spare... - Page 5 HARDWARE Back Nesting box Front Nesting box...
- Page 6 PARTS Front panel-up Back panel of pen-up Back panel of coop Support frame of pen Left panel of coop Right panel of coop Right panel of pen Front panel-down Tray (close to coop)
- Page 7 PARTS Left panel of pen Right panel of pen Leftpanel of pen (close to coop) (outside) (outside) Back panel of pen-down Panel of nesting box Panel of nesting box 2PCS 2PCS Panel of nesting box Divider of nesting box Bottom of nesting box 2PCS 2PCS 2PCS...
- Page 8 PARTS Ramp Roof of nesting box Roof 2PCS 2PCS Roof Perch of coop Perch of pen 2PCS 2PCS 2PCS Roof connect bar Roof cap PVC Waterproof Strip 2PCS 2PCS 2PCS...
-
Page 9: Product Assembly
PRODUCT ASSEMBLY Attach the coop ! ① Attach the Part A , Part B , Part G , Part E1 by 6xP1 screws. ② Attach the panel Part E2 by 6xP1 screws. ① Slide in the tray Part F. ② Insert the perches 2xPart U into the slots inside the front and back panel. - Page 10 PRODUCT ASSEMBLY Attach the ramp Part R to the back panel Part B by 4xP6 screws as show on the picture. ① Attach the right nesting box ! ② Attach the panel Part L & M to the right panel of coop by 4xP3 & 2xP4 screws.
- Page 11 PRODUCT ASSEMBLY Attach the panel Part N to the right of nesting box by 6xP1 screws. Attach the left nesting box ! Attach the panel Part L & M to the left panel of coop by 4xP3 & 2xP4 screws.
- Page 12 PRODUCT ASSEMBLY Attach the panel Part N to the left of nesting box by 6xP1 screws. Drop in the bottom panel of nesting box 2xPart P to 2 nesting box as show on the picture.
- Page 13 PRODUCT ASSEMBLY Slide in the divider 2xPart O to each Part P as show on the picture. Attach the pen ! Attach the panel Part I & H (Close to the coop ) to the coop by 6xP2 screws.
- Page 14 PRODUCT ASSEMBLY Attach the panel Part J1 & J2 (outside) to the Part I & H by 6xP2 screws. Attach the support frame Part D to the Part J1 & J2 (outside) by 4xP1 screws as show on the picture.
- Page 15 PRODUCT ASSEMBLY Attach the back panel pact C & K by 2 x p2 screws. Attach the panel Part C & K to Part J1 & J2 by 8xP1 screws.
- Page 16 PRODUCT ASSEMBLY Attach 2pcs of perches part V to the pen by 4 x P4 screws each side as show on picture.
- Page 17 PRODUCT ASSEMBLY Attach the nesting box roof 2xPart Q to the nesting box by 4xP6 screws each side. Attachtheroof 2xPart S & 2x Part T to the coop by 16xP4 screws. (Notice do not confuse the position of Part S & Part T)
- Page 18 PRODUCT ASSEMBLY Attach the roof cap 2xPart X to the roof by 8xP5 screws. Connect the roof with connect bar 2xPart W by 12xP5 screws.
- Page 19 PRODUCT ASSEMBLY Attached PVC Waterproof Strip Part Y to the right side nesting box by 3XP5 screws. Attached PVC Waterproof Strip Part Y to the left side nesting box by 3XP5 screws. Finish...
- Page 20 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this...
