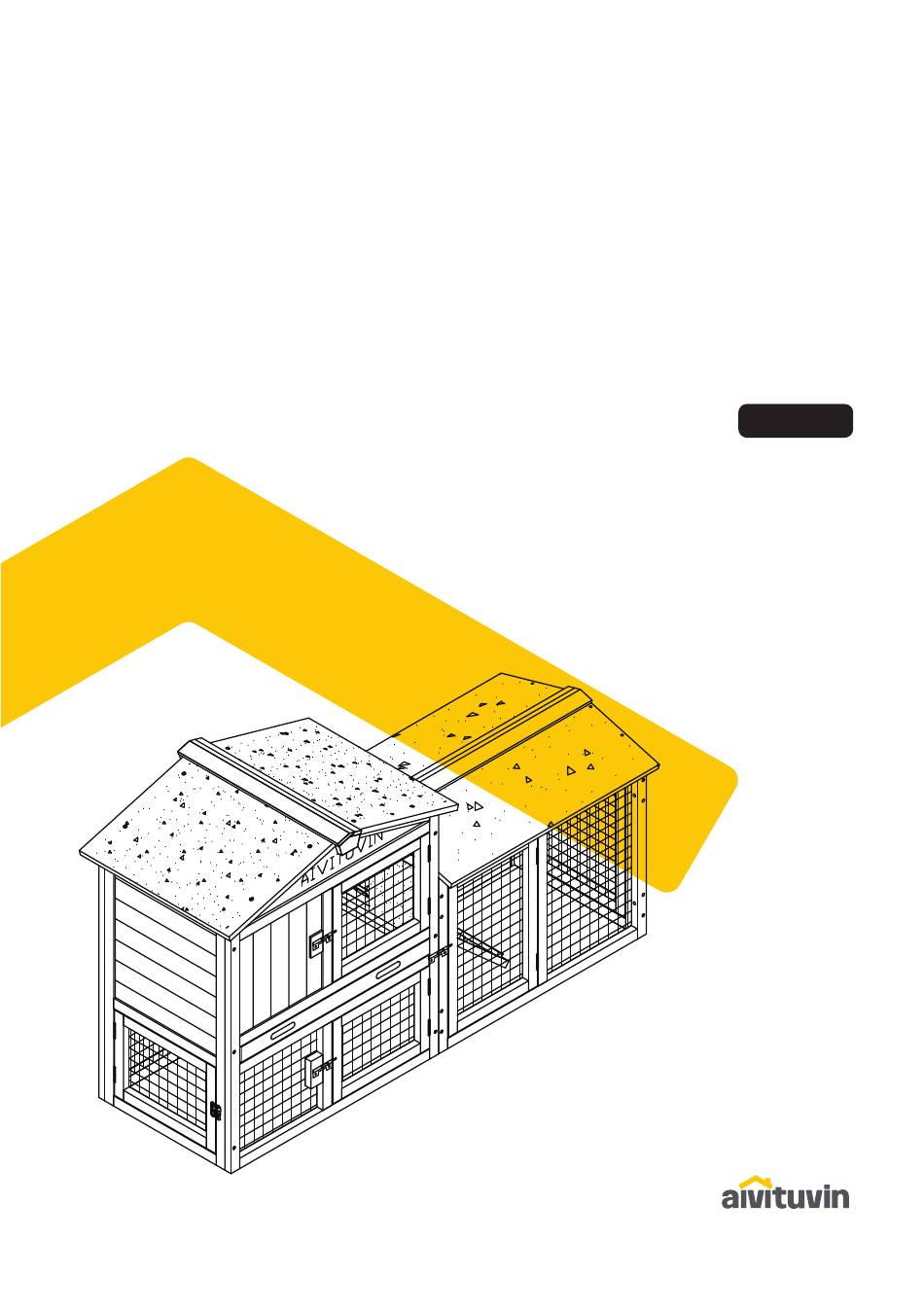

- Page 1 INSTRUCTION MANUAL AIR 02 www.aivituvin.com...
- Page 3 NOTICE Please retain these instructions for future reference. Firmly secure all bolts,screws and knobs before use. Reconfirm that all bolts,screws,and knobs are secure every 90 days. Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled. Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
-
Page 4: Tools Required
TOOLS REQUIRED PHILLIPS DRILL 2PERSON APPROXIMATELY SCREWDRIVER (RECOMMENDED) ASSEMBLY 45MIN. ASSEMBLY HARDWARE M3.5x40mm SCREW M3.5x50mm SCREW 14PCS+1 spare 6PCS+1 spare M3.5x25mm SCREW M3.5x35mm SCREW 18PCS+1 spare 12PCS+1 spare SPRING LATCH M3.0x16mm SCREW 3PCS 10PCS+1 spare... - Page 5 PARTS Front panel of pen Back panel of hutch Front panel of hutch Back panel of pen Side panel of hutch Middle access door panel Side panel of pen Plastic tray Splayed supporting bar...
- Page 6 PARTS Roof cap of pen Roof of pen Roof of hutch 2PCS 2PCS Roof cap of hutch Roof connect slat ( Only for Ramp 2 hutches combination.not available for one hutch owner ) 1 PC Hutch...
-
Page 7: Product Assembly
PRODUCT ASSEMBLY ① Attach the front Part A,the back Part B to Part E & F by 10xP2. ②Notice to align with the dowels. Silde in the plastic tray Part H. - Page 8 PRODUCT ASSEMBLY Screw the ramp Part O to the bottom half of lower panel on Part F by 4xP5. Screw the splayed supporting bar Part I by 2xP3.
- Page 9 PRODUCT ASSEMBLY Attach the front and back pen panel Part C & D to the hutch by 4xP1. Attach the side pen Part G by 4xP2.
- Page 10 PRODUCT ASSEMBLY Screw the pen roof panels Part K to the pen by 8xP3. Ensure the top roof panels line up with each other before screwing Part L by 4xP4.
- Page 11 PRODUCT ASSEMBLY Screw the roof panels Part J to the hutch by 8xP3. Ensure the top roof panels line up with each other before screwing Part M by 4xP4.
- Page 12 PRODUCT ASSEMBLY Attach the spring latch P6 to the doors by 2xP5 each. Finish here for only buying one hutch !
- Page 13 Notice Read Before Assemble! ① Pls ignore the following for only one hutch owner ! ② There are 2 different combinations for your optional choice. Option 1 Option 2...
- Page 14 OPTION 1 ① Take out the lock of 1st hutch. ② Push upward the hinge to take out the door. Push upward to take out ① Repeat Step 1 to Step 11 to assemble 2nd hutch. ② Take out the lock. ③ ...
- Page 15 PRODUCT ASSEMBLY Attach the 1st hutch to 2nd hutch by 2xP1. Repeat the combination assembly in the opposite side by 2xP1.
- Page 16 OPTION 2 ① Take out the lock of 1st hutch. ② Push upward the hinge to take out the door. Push upward to take out ① Attach the front Part A, the back Part B to the sides Part F & E by 10xP2.
- Page 17 PRODUCT ASSEMBLY Slide in the plastic tray Part H. Screw the ramp Part O to the bottom half of lower panel on Part F by 4xP5.
- Page 18 PRODUCT ASSEMBLY Screw the splayed supporting bar Part I by 2xP3. Attached the front and back pen panel Part C & D to the hutch by 4xP1.
- Page 19 PRODUCT ASSEMBLY Attach the side panel Part G by 4xP2. ① Take out the lock. ② Push upward the hinge to take out the door. Push upward to take out...
- Page 20 PRODUCT ASSEMBLY ① Screw the roof panels Part J & K to the hutch and pen by 8xP3 each. Attach the spring latch P6 to the door by 2xP5 each. ② Ensure the top roof panels line up with each other before screwing Part L &...
- Page 21 PRODUCT ASSEMBLY ① Attach the 1st hutch to 2nd hutch by 2xP1. ② Attach the roof connect slat by 8xP4. ③ Attach the spring latch P6 the door by 2xP5.
- Page 22 PRODUCT ASSEMBLY Repeat the combination assembly in the opposite side by 2xP1.
-
Page 23: Help Center
Once the items are received, opened, and deemed to be faulty or other problems. Pls contact us at service@aivituvin.com for the solution. We will feedback to you within 24 hours. If you are happy with the shopping ,welcome to share photos and thoughts with others . - Page 24 WARNING Manufacturer and seller expressly disclaim any and all liability for personal injury,property damage or loss,whether direct,indirect,or incidental,resulting from the incorrect attachment,improper use,inadequate miantenance,or neglect of this product.
