KEIL ΜVISION5 INTEGRATED DEVELOPMENT ENVIRONMENT

INTRODUCTION

The Keil µVision5 integrated development environment (IDE) inte-
grates all the tools necessary to edit, assemble, and debug code.
The ADuCM342 development system supports nonintrusive emula-
tion limited to 32 kB code. This section describes the project setup
steps to download and debug code on an ADuCM342 development
system. It is recommended to use the J-Link debugger driver.

QUICK START STEPS

Starting µVision5
First, ensure that the CMSIS pack for the ADuCM342 is installed
(see the Getting Started section).
After installing Keil µVision5, a shortcut appears on the PC desktop.
Double click the shortcut to open Keil µVision5.

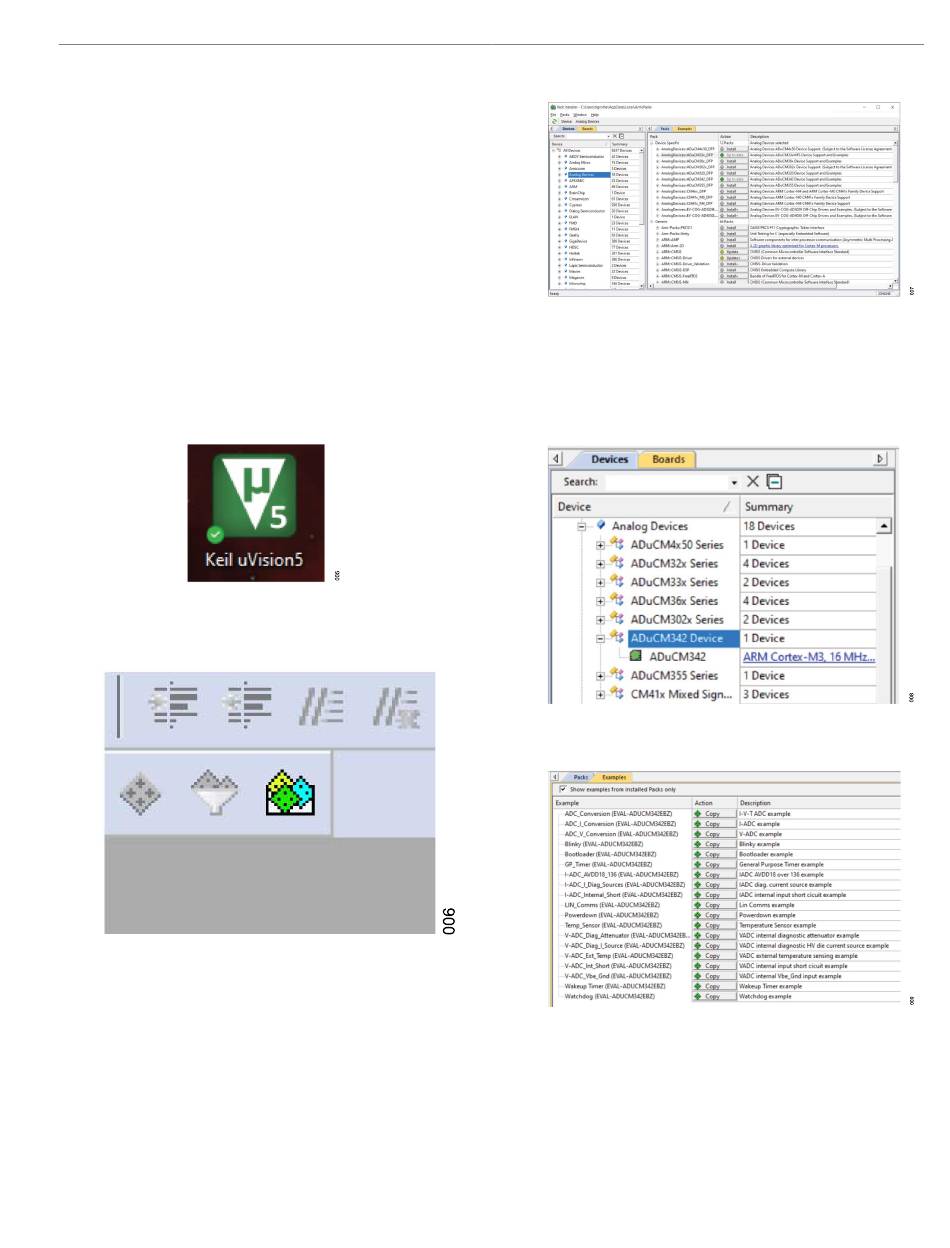

Figure 5. Keil µVision5 Desktop Shortcut
1. When Keil opens, click Pack Installer button on the toolbar.
Figure 6. Pack Installer Button
2. The Pack Installer window appears.
analog.com
EVAL-ADuCM342
Figure 7. Pack Installer Window
3. Install the CMSIS pack. In the Pack Installer window, click File
> Import and locate the downloaded CMSIS pack. Follow the
on-screen prompts to install.
4. In the left-hand side of the window, under the Devices tab, click
Analog Devices > ADuCM342 Device > ADuCM342.
Figure 8. Devices Tab
5. In the right-hand side of the window, click Examples tab.
Figure 9. Examples Tab
6. Select the Blinky example and click Copy.
7. Choose a destination folder and click ok. This installs the
Blinky example and necessary startup files to your PC.
