User Guide
KEIL ΜVISION5 INTEGRATED DEVELOPMENT ENVIRONMENT

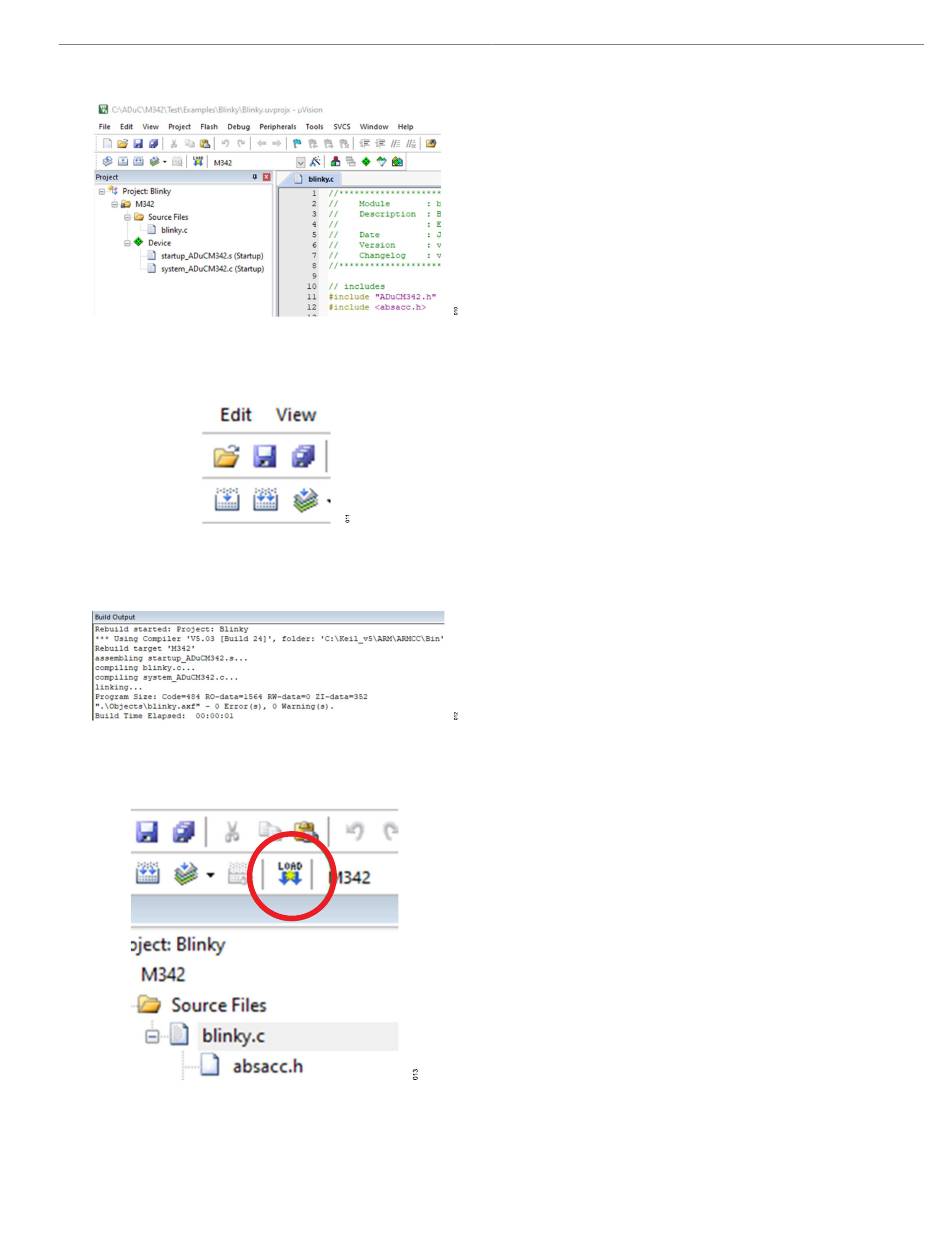

Figure 10. Blinky Example
8. The example must be compiled by clicking the Rebuild button
on the toolbar.
Figure 11. Rebuild Button
9. When the build is complete, the message shown in
appears.
Figure 12. Build Output
10. To download the code to the EVAL-ADuCM342EBZ board, click
Load.
Figure 13. Load Button
11. When the code is downloaded to the applications board, press
the RESET button and LED2 and LED3 start blinking repeated-
ly.
analog.com
Figure 12
EVAL-ADuCM342
Rev. 0 | 8 of 9
