CONNECT THE DEVELOPMENT SYSTEM

To connect the development system, do the following steps:
1. Ensuring correct orientation, insert an
that a dot in the corner shows the Pin 1 of the device. The dot
on the device must be orientated with the dot on the socket, as
shown in Figure 3.

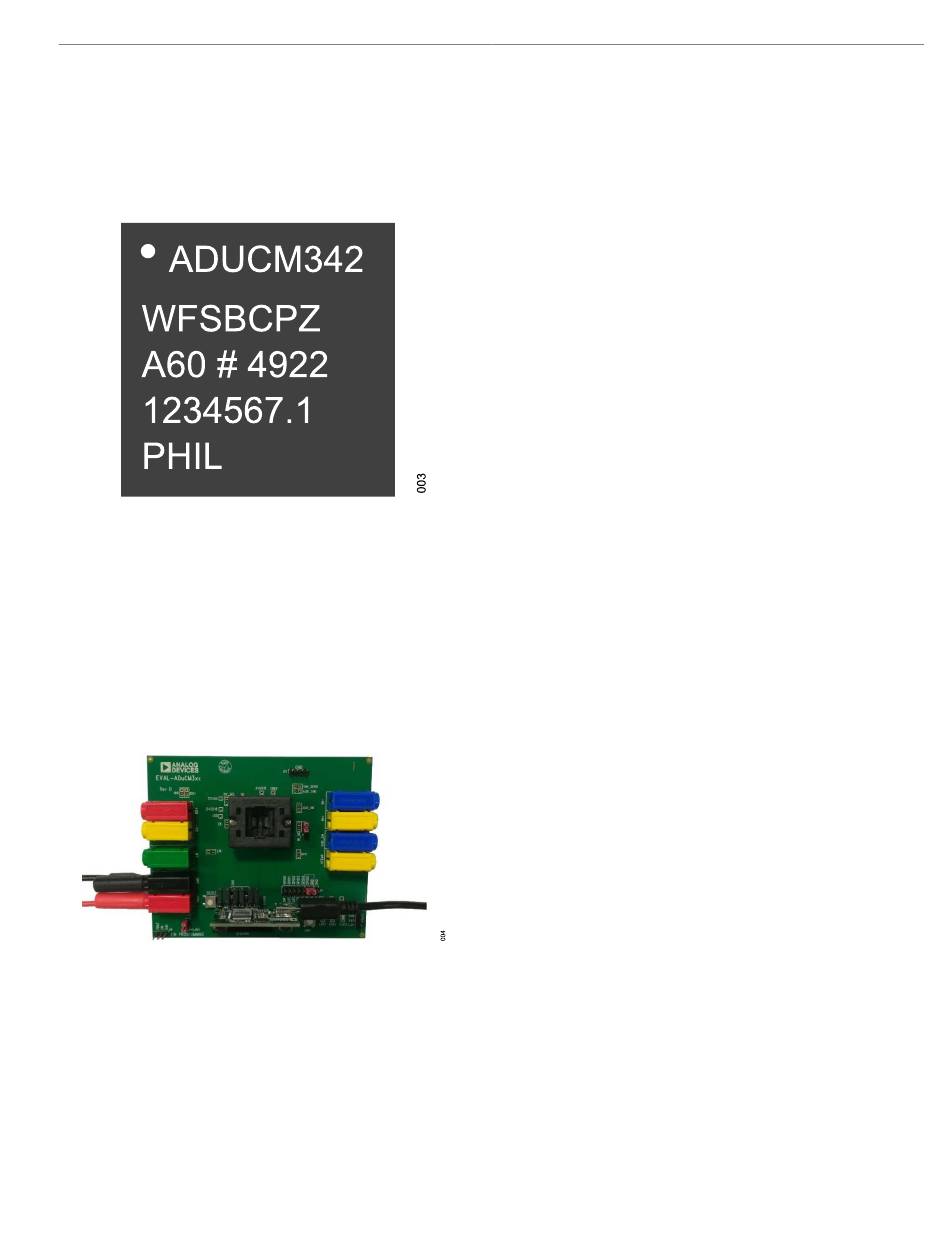

Figure 3. ADuCM342 Device Orientation
2. Connect the debugger/programmer, noting the correct orienta-
tion as shown in Figure 4.
3. Connect a 12 V supply between V
4. Ensure that the board jumpers are in position, as shown in
Figure 1.
5. Ensure that the GPIO5 jumper is in place. The GPIO5 jumper
is used by the on-board kernel to determine program flow
after a reset. For more details, see the Kernel section in the
ADuCM342 hardware reference
6. Press RESET.
Figure 4. Mini-Link Debugger/Programmer Connection
