One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com

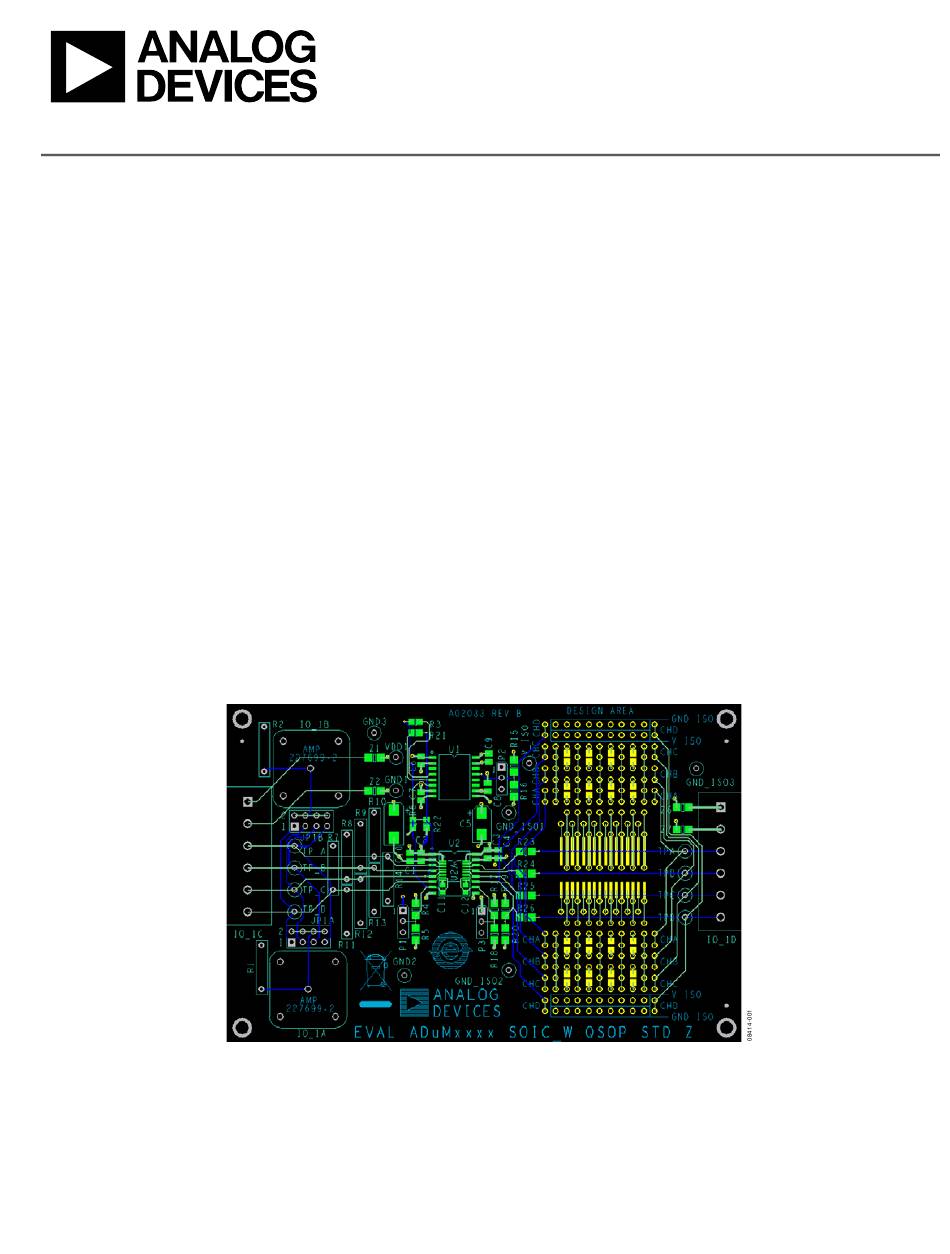

Evaluating the 16-Lead SOIC and the 16-Lead QSOP Digital Isolators

FEATURES

Convenient connections for power through screw
terminal blocks
Add-on BNC connector for 50 Ω signal sources
On-board signal routing
Support for signal wrap back
Simple signal paths to reduce transmission line effects
Pull-up and pull-down provided for control lines
Support for isoPower
Project area that supports surface-mount and through-hole
devices

GENERAL DESCRIPTION

The
EVAL-ADuMQSEBZ
can be used with most iCoupler®
isolation products in the 16-lead, wide-body SOIC and QSOP
packages. The evaluation board supports the common pad
positions for power, ground, and input/output pins found in
nearly all of the iCoupler products and is a configurable board
that can be adapted to many iCoupler products.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
EVAL-ADuMQSEBZ User Guide

SUPPORTED iCOUPLER MODELS

ADuM130x
ADuM131x
ADuM140x
ADuM141x
ADuM1510
ADuM240x
ADuM330x
ADuM340x
ADuM344x
ADuM5000
ADuM520x
ADuM540x
ADuM6000
ADuM620x
ADuM640x
ADuM744x
ADuM7510

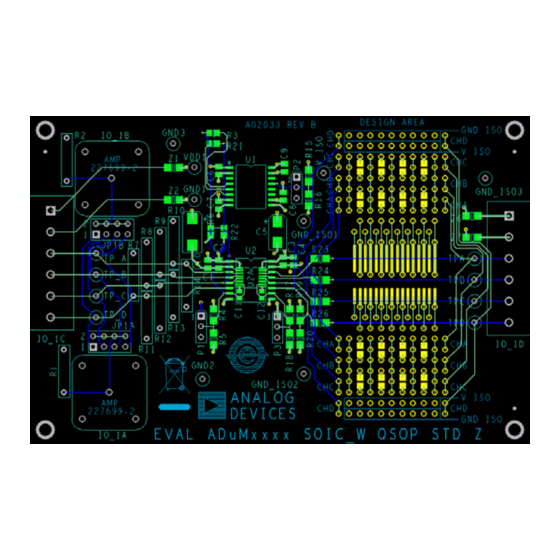

EVALUATION BOARD

Figure 1.
Rev. C | Page 1 of 8
UG-042

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-ADuMQSEBZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-ADuMQSEBZ

Summary of Contents for Analog Devices EVAL-ADuMQSEBZ

  • Page 1: Features

    EVAL-ADuMQSEBZ User Guide UG-042 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the 16-Lead SOIC and the 16-Lead QSOP Digital Isolators FEATURES SUPPORTED iCOUPLER MODELS Convenient connections for power through screw...

  • Page 2: Table Of Contents

    UG-042 EVAL-ADuMQSEBZ User Guide TABLE OF CONTENTS     Features ....................1 Terminals ..................3     General Description ................. 1 Data Input/Output Connections ..........5     Supported iCoupler Models ............1 Design Area ..................5     Evaluation Board ................1 Evaluation Board Schematic and Layout ........6...

  • Page 3: Evaluation Board Hardware

    EMI, or EMC. It may outputs to be disabled or default levels to be set. These pins are be useful for initial bench work in these areas, but Analog Devices, usually located at Pin 7 and Pin 10 in the wide body package. Pull- Inc., does not guarantee that the evaluation board results will be...
  • Page 4 UG-042 EVAL-ADuMQSEBZ User Guide Figure 4. Side 1 Terminal Block Connector Figure 5. Side 2 Terminal Block Connector The power and ground from the screw terminal block (if Power is connected to the terminal block connector (if installed), installed) are connected to the Side 1 power and ground pads IO_1D, as shown in Figure 5.

  • Page 5: Data Input/Output Connections

    EVAL-ADuMQSEBZ User Guide UG-042 DATA INPUT/OUTPUT CONNECTIONS DESIGN AREA Side 1 Data Input/Output The design area of the evaluation board allows breadboarding of application components such as RS-485 and controller area Signals can be provided to the evaluation board and routed to...

  • Page 6: Evaluation Board Schematic And Layout

    UG-042 EVAL-ADuMQSEBZ User Guide EVALUATION BOARD SCHEMATIC AND LAYOUT Figure 7. Schematic of ADuM540x Evaluation Board Rev. C | Page 6 of 8...
  • Page 7 EVAL-ADuMQSEBZ User Guide UG-042 Figure 8. Evaluation Board Layout Rev. C | Page 7 of 8...

  • Page 8: Ordering Information

    By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
